Singflo 4'' 6LPM Well Pump - Solar Powered Well Water Pumping Kit - Deep Well Solar System
Product Description.

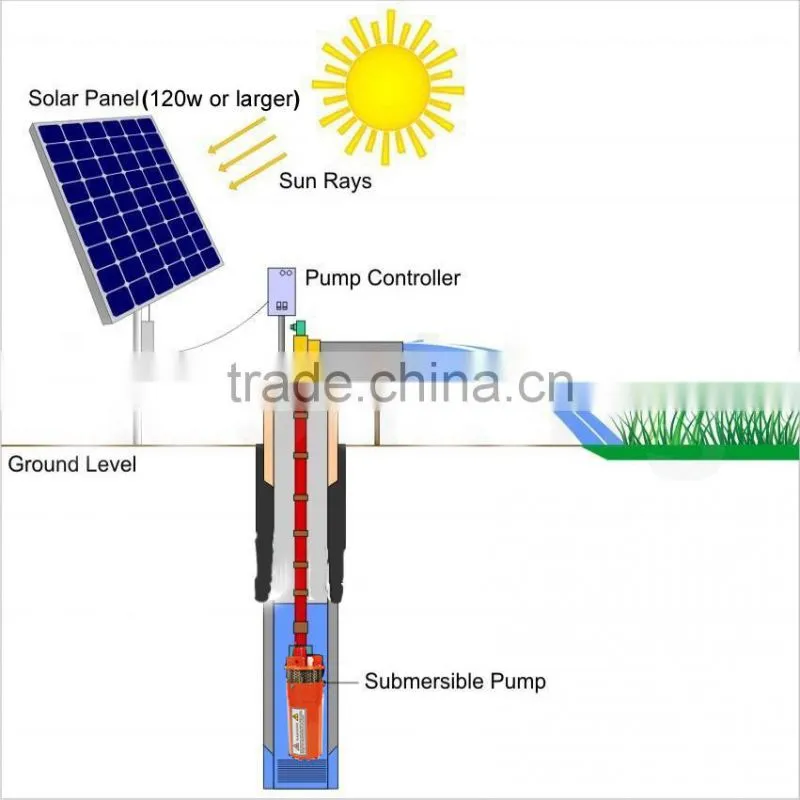

The solution to your remote water pumping needs. This pump is rugged.durable and builtto last. This pump delivers a steady 94.7GPH(360LPH) at its maximum depth of 230 feet (70m) when supplied with 24VDC. Its unique water-tight power connector stops water wicking and prevents potential condensation problems. Great for livestock watering.irrigation,pondaeration,remote homes and cabins
Singflo Pump Included.
Solar water pump
3 meters cable

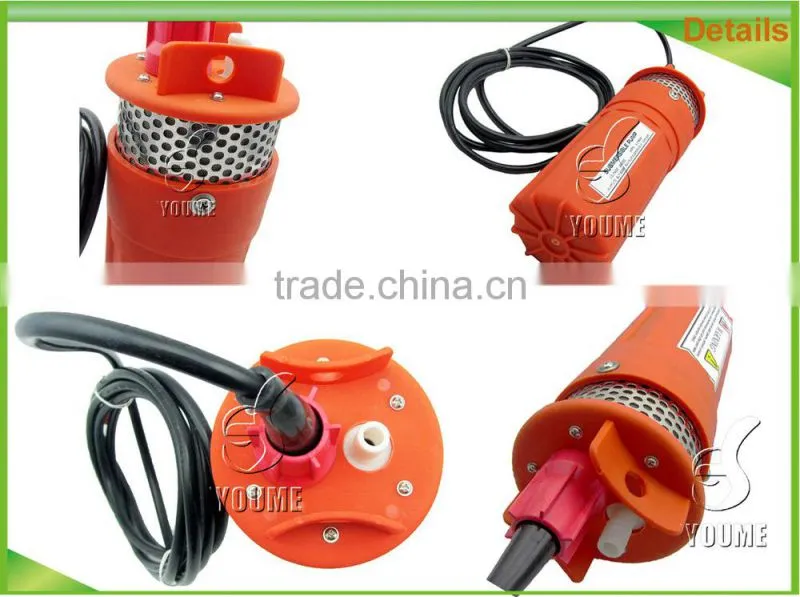

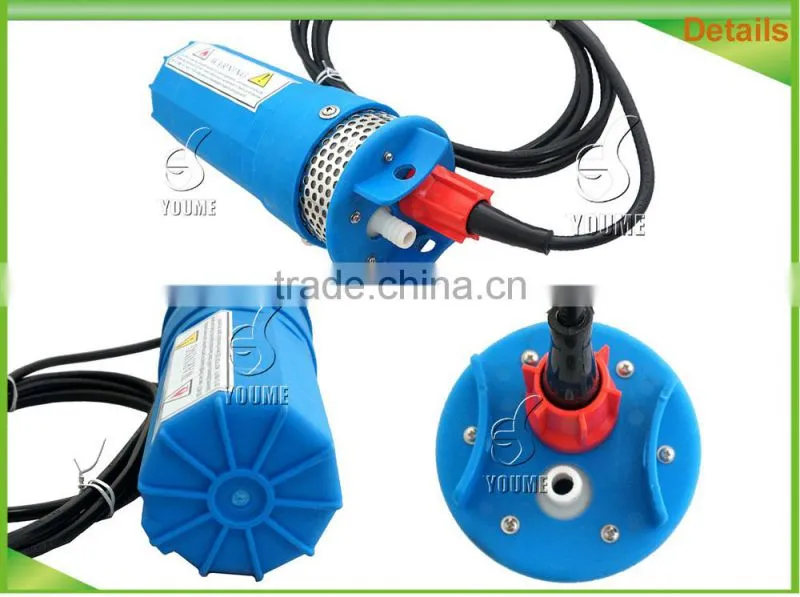

Feature.
1. For 4" wells or larger
2. Quick disconnect with "Watertight-Gland" Design Pat Pend
3. Corrosion-proof housing with stainless-steel fastener
4. Run dry without damage
5. State of the art solid diaphragm
6. Stainless Steel Fastener
7. Pump Design: Positive Displacement 3 Chamber Diaphragm Pump
8. Motor: Permanent Magnet Thermally Protected
9. Internal Bypass: 105-110 PSI Max. (7.2-7.5 BARS)
10. Outlet Port: 1/2" (12.7mm) Barbed Fitting
11. Inlet: 50 Mesh Stainless Steel Screen
12. Material: High Strength Engineered Plastic
Specification.
*Model: YM2440-30
*Volts: 24V
*Amps: 4.0A
*Flow Rate: 6LPM
*Maximum Lift: 230 Feet(70meters)
*Maximum (Vertical): 100Feet (30 Meters)
*Packing Size: 355*130*110mm
*N.W./G.W.: 2.9/3.0kgs
Technical Date.
| Pump Design | Positive Displacement 3 Chamber Diaphragm Pump |
| Motor | Permanent Magnet, Thermally Protected |
| Voltage | 24VDC Nominal |
| Amps | 4.0A Maximum |
| Internal Bypass | 105-110PSI Max.(7.2-7.5 Bars) |
| Maximum Lift | 230 feet Maximum (70 Meters) |
| Maximum Submersion | 100 Feet Maximum (30 meters) |
| Outlet Port | 1/2'' (12.7mm) Barbed Fitting |
| Inlet: | 50Mesh Stainless Seel Screen |
| Materials | High Strength Engineered Plastics,Stainless Steel Fasteners |
| Typical Applications | Potable Water Well Pump |
How to connect:
