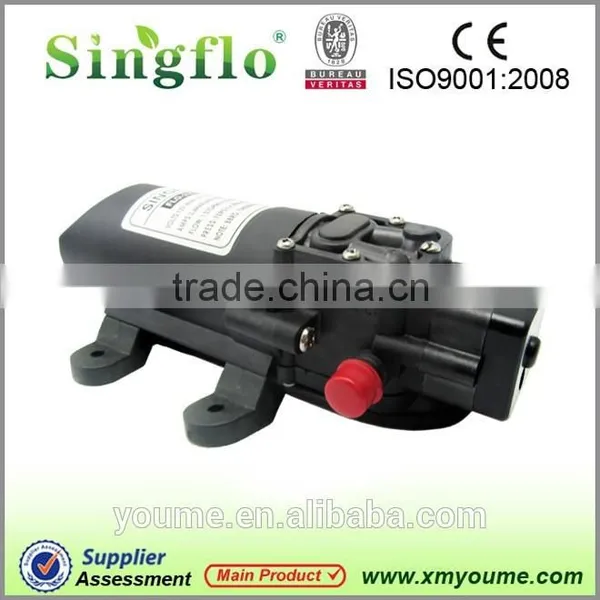

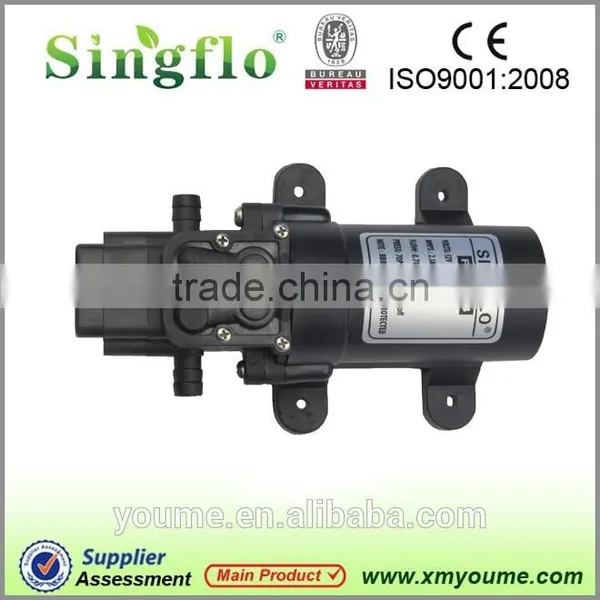

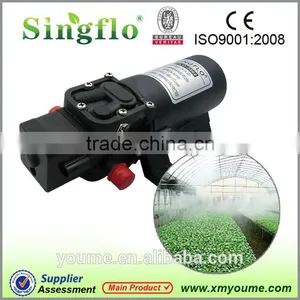

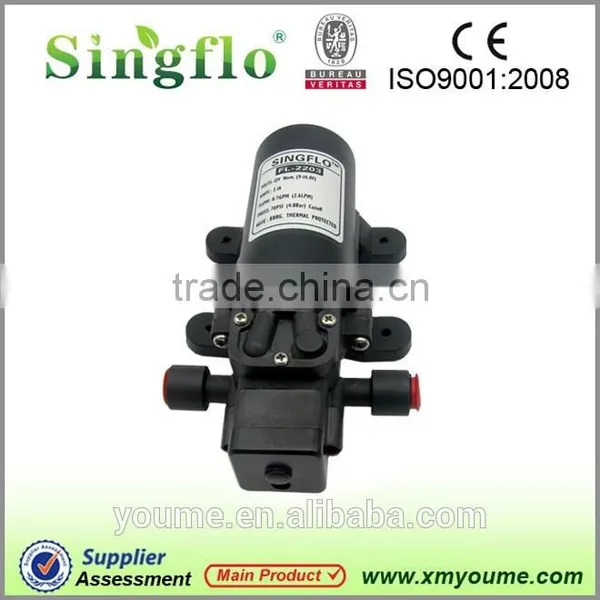

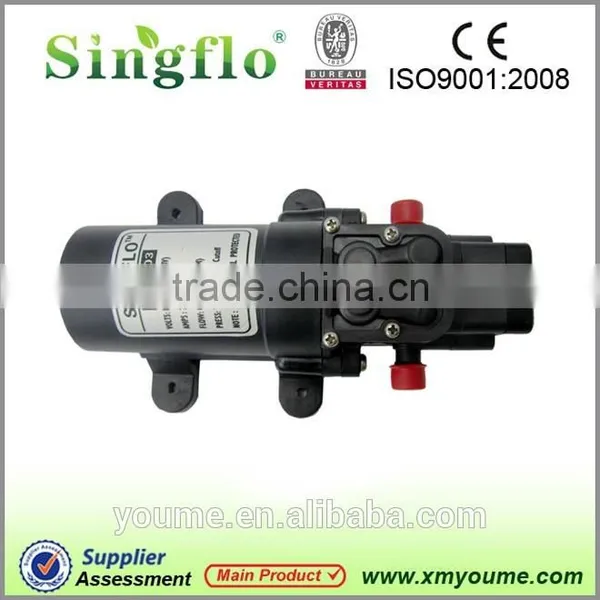

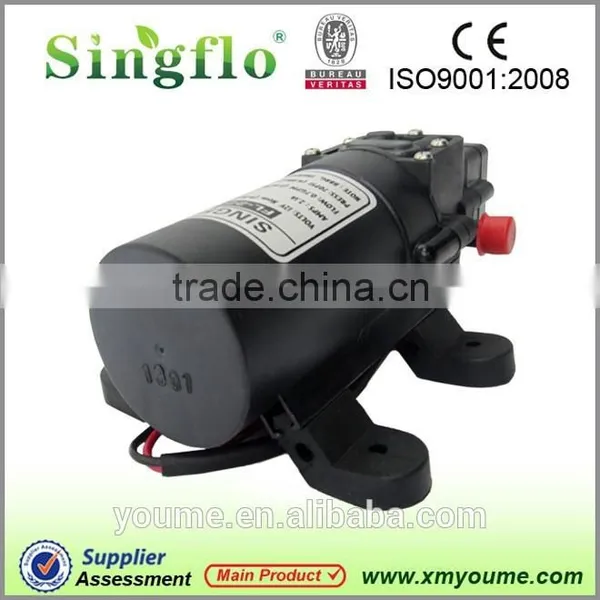

Singflo 12v sprayer pump/ agricultural power sprayer pump/ electric pump sprayer
Description:
A:Stable performance,
B:Self priming,automatic switch,
C:Low noise, corrosion resistant.
Pump Head 2 chambers
Max Pressure 55psi/35psi/80psi(consult factory for other pressure)
Motor Configuration lead wires 2-pin connector(consult with factory)
2-pin connector with on/off switch
Reciprocating Diaphragm made of Santoprene
Duty cycle:intermittent.
Housing PP
Check valve made of EPDM
Check valve spring: Stainless steel
Functions:
12v DC mini water pump can be used for low flow rate while high pressure requirements in situation as:
Pressure pumps used in sprayers and spray fixtures.
Water purification,filter machine,chemical metering and fluid supply.
Food,Beverage filling and transfer.
ure switch control pump's working or not, turn on switch,pump is at working;turn off switch with pump stop working,
So, it is special suitable for sprayers and spray fixtures with its low flow rate.
| Technical Data | ||||
| Model | Volt | Flow(L/Min) | Pressure(PSI) | Amp Draw(A) |
| FLO-2201 | 12 | 2 | 55 | 1.8 |
| FLO-2202 | 12 | 3.8 | 35 | 3 |
| FLO-2202 | 12 | 4.3 | 35 | 3.5 |
| FLO-2203 | 12 | 2.6 | 70 | 2.1 |
| FLO-2203-1 | 12 | 3.1 | 70 | 2.2 |
| FLO-2202A | 12 | 4 | 70 | 2.6 |
| FLO-2401 | 24 | 2 | 55 | 0.9 |
| FLO-2402 | 24 | 3.8 | 35 | 1.5 |
| FLO-2403 | 24 | 2.6 | 70 | 1 |
| FLO-2402A | 24 | 4 | 70 | 1.3 |
| Inlets size: | 3/8''hose barb, thread | |||
| Outlets size: | 3/8''hose barb, thread | |||
| dimension/pc: | 18.5x11x6.5cm | |||
| Net weight/pc: | 0.64kg | |||
| Gross weight/pc: | 0.72kg | |||
| Carton dimension(50pcs): |
56.5x38.5x36.5cm |
|||
