AS450 easy operation oil machine sunflower seeds oil machine factory price
1. Description of sunflower seeds oil machine
sunflower seeds oil machine is a new research improvement product.It can use to press rapeseed, peanut, soybean,sesame,sunflowerseed and other plant oil seeds.This kind of sunflower seeds oil machine adopts micro-electrical control,filter system,muti-stage press and can hot press.The product for sunflower seeds oil machine is the clean oil after filtering,it can directly to use.The sunflower seeds oil machine is the most ideal equipment for individual processing.
2. Application range of sunflower seeds oil machine
This sunflower seeds oil machine can also be used at any time throughout the year for peanut, beans,soybean, cotton seed, sunflower seed, coconut, jatropha seed, rape seed, prickly ash seed, chilli seed, corn germ, etc many kinds of oil plants, this sunflower seeds oil machine used for cooking oil mill plant.
| Oil material | Oil press rate (%) | Thickness of the material slag |
Residual oil ratio (%) |
| sesame | 42-55 | 1.0-1.5 | ≤7 |
| peanut | 40-50 | 0.8-2 | ≤7 |
| rapeseed | 28-43 | 1.0-1.5 | ≤7 |
| Sunflower seeds | 30-40 | 1.2-1.5 | ≤7 |
| Soy bean | 10-16 | 0.8-1.5 | ≤7 |

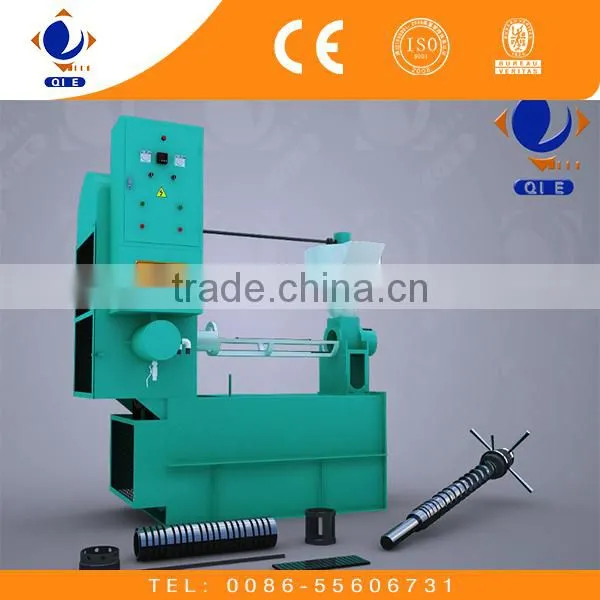

3. Structure of our sunflower seeds oil machine
Our sunflower seeds oil machine have two types-- Tape A and Tape B. All of them have the drive mechanism ,frame, electric,adjustable cake institutions,negative pressure filtration system , please check the following picture:
sunflower seeds oil machine Tape A and Tape B:
4. Technical parameters of our sunflower seeds oil machine
Automatic sunflower seeds oil machine
| Model | 6YL-80 | 6YL-100 | 6YL-120 | 6YL-130 | 6YL-160 |
|
Speed of press screw |
30-45r/min | 30-40r/min | 30-40r/min | 28-40r/min | 28-40r/min |
|
Boundary demension (mm) |
1700×1250×1650 | 1950×1300×1900 | 2050×1350×2000 | 2200×1600×2150 | 2500×1600×2500 |
| Handing capacity | 80-150kg/h | 150-250kg/h | 200-300kg/h | 250-400kg/h | 400-600kg/h |
| Main engine | Y160L-6-5.5kw | Y160M-6-7.5kw | Y160L-6-511kw | Y180L-6-15kw | Y200L-6-18.5kw |
| Vacuum pump | Y90S-4-0.55kw | Y90S-4-1.1kw | Y100L1-4-1.5kw | Y100L1-4-2.2kw | Y100L1-4-2.2kw |
| Heater | 2KW | 3KW | 3.3KW | 3.8KW | 4KW |
5. How to operate our sunflower seeds oil machine
1. Prepare the seeds;
2. Adjust sunflower seeds oil machine , such as electricity, heating (optional);
3. Start sunflower seeds oil machine , putting seeds into the feeder;
4. Seed into the sunflower seeds oil machine , begin to press
5. The crude oil comes out of the squeezing bolt, then flow into the board ,

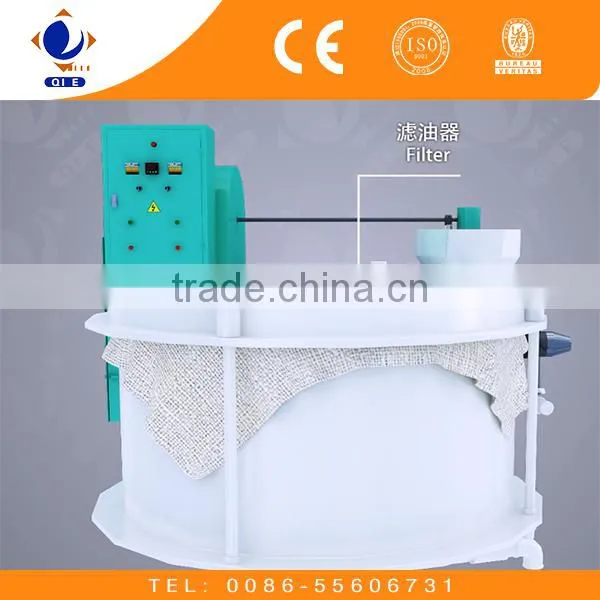

6. Go into the vacuum filter, using it for filtration
7. After filtration, the oil comes out from the bottom of pipe
6. Our sunflower seeds oil machine and oil product line
Except sunflower seeds oil machine ,our factory can supply a whole oil product line to you , such as cleaning machine flaking roll,cooking machine,hoiser,refining machine and bottling line and so on. You just need prepare the material ,we will do well all other things for you.
7. The advantages of sunflower seeds oil machine
1. Energy Saving: The electric power of our sunflower seeds oil machine can be reduced by 40% under the same output. For example, the machine can save 6 kilowatt at an average of one hour.
2. Labor Saving: 60% labor can be saved under the same output. One or two person can organize the production.
3. Widely Usage: The sunflower seeds oil machine is multi-function. It can process more than 20 kinds of oil crops, such as, peanut, linseed, sesame, rapeseeds, sunflower, cottonseeds, soybean, etc.
4. Oil Pure: Vaccum filter can filter the residue and ensure the oil quality. The oil of sunflower seeds oil machinecan meet the standard of health quarantine.
Zhengzhou Qi'E Grain&Oil Machine Co.,Ltd is a large-sized joint-equity enterprise which specialize in producting edible oil mechanical equipment andit is aslo a group enterprise integrating scientific research, manufacturing,sales as one.Our products are exported to more than 30 countries,and regions such as Russia, India, South Afica, Ukraine, Nepal, Indonesia and so on.
If you have interest in our machine, please kindly send us your inquiry details in the Below , Click "Send" Now!
