Mini Sunflower Oil Press
Notes: We are manufacturer and have own plant, if you need any grain oil processing machine, please send the inquriy to me. You will get good quality machine and best price.

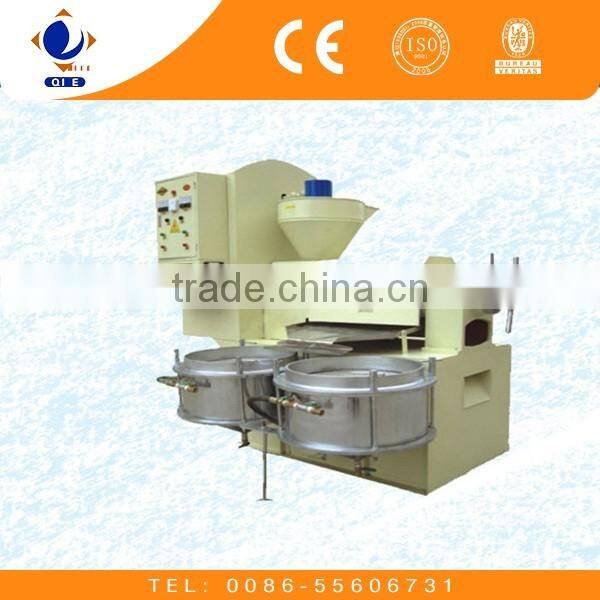

1. Description Of Mini Sunflower Oil Press
Automatic Mini Sunflower Oil Press with filter is a new research improvement product.It can use to press rapeseed,peanut,soybean,sesame,sunflowerseed and other plant oil seeds.This kind of Mini Sunflower Oil Press with filter adopts micro-electrical control,filter system,muti-stage press and can hot press.The product Mini Sunflower Oil Press is the clean oil after filtering,it can directly to use.The Mini Sunflower Oil Press is the most ideal equipment for individual processing.
2. Application Range Of Mini Sunflower Oil Press
This Mini Sunflower Oil Press can also be used at any time throughout the year for peanut, beans,
soybean, cotton seed, sunflower seed, coconut, jatropha seed, rape seed, prickly ash seed, chilli seed, corn germ, etc many kinds of oil plants.
| Oil material | Oil press rate (%) | Thickness of the material slag | Residual oil ratio (%) |
| sesame | 42-55 | 1.0-1.5 | ≤7 |
| peanut | 40-50 | 0.8-2 | ≤7 |
| rapeseed | 28-43 | 1.0-1.5 | ≤7 |
| Sunflower seeds | 30-40 | 1.2-1.5 | ≤7 |
| Soy bean | 10-16 | 0.8-1.5 | ≤7 |
3. Structure Of Our Mini Sunflower Oil Press

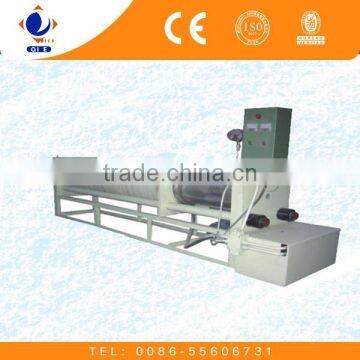

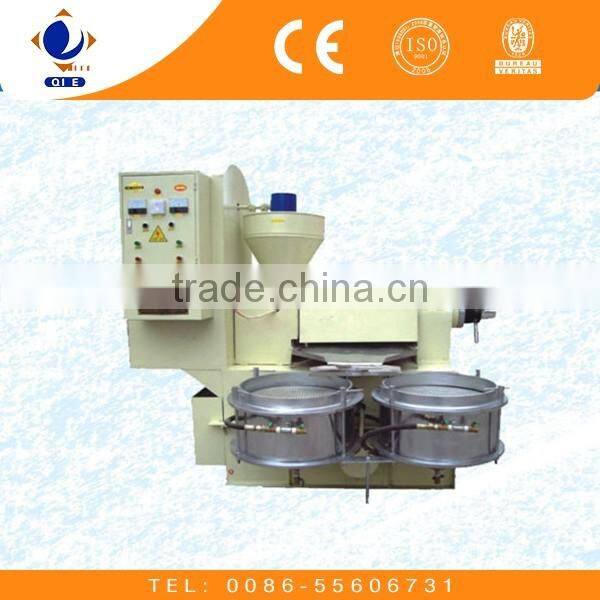

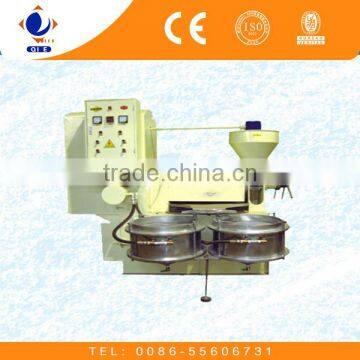

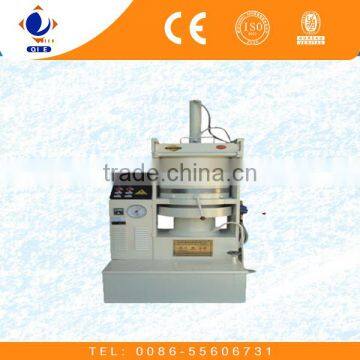

Our Mini Sunflower Oil Press have two types-- Tape A and Tape B. All of them have the drive mechanism ,frame, electric,adjustable cake institutions,negative pressure filtration system , please check the following picture:
4. Technical Parameters Of Our Mini Sunflower Oil Press
Automatic Mini Sunflower Oil Press
| Model | 6YL-80 | 6YL-100 | 6YL-120 | 6YL-130 | 6YL-160 |
Speed of press screw | 30-45r/min | 30-40r/min | 30-40r/min | 28-40r/min | 28-40r/min |
Boundary demension (mm) | 1700×1250×1650 | 1950×1300×1900 | 2050×1350×2000 | 2200×1600×2150 | 2500×1600×2500 |
| Handing capacity | 80-150kg/h | 150-250kg/h | 200-300kg/h | 250-400kg/h | 400-600kg/h |
| Main engine | Y160L-6-5.5kw | Y160M-6-7.5kw | Y160L-6-511kw | Y180L-6-15kw | Y200L-6-18.5kw |
| Vacuum pump | Y90S-4-0.55kw | Y90S-4-1.1kw | Y100L1-4-1.5kw | Y100L1-4-2.2kw | Y100L1-4-2.2kw |
| Heater | 2KW | 3KW | 3.3KW | 3.8KW | 4KW |

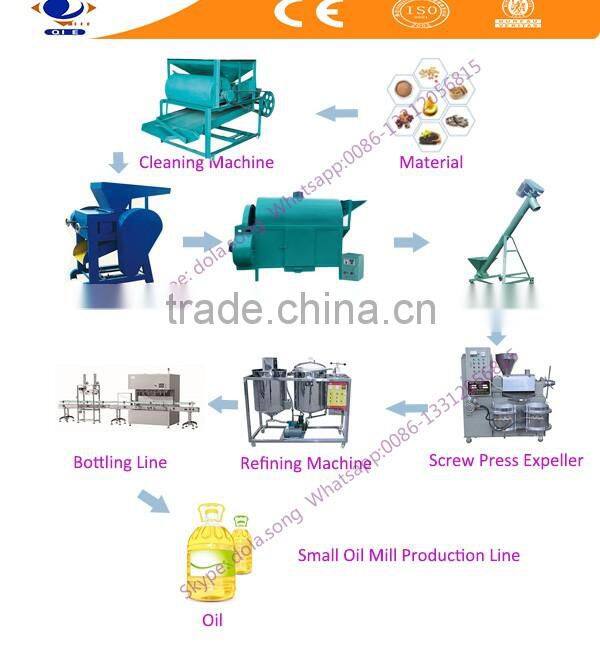

5. Our Mini Sunflower Oil Press And Oil Product Line
Except Mini Sunflower Oil Press ,our factory can supply a whole oil product line to you , such as cleaning machine flaking roll,cooking machine,hoiser,refining machine and bottling line and so on. You just need prepare the material ,we will do well all other things for you.

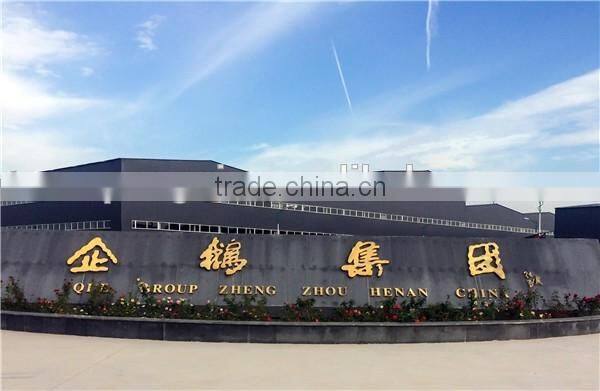

Zhengzhou Qi'E Grain&Oil Machine Co.,Ltd is a large-sized joint-equity enterprise which specialize in producting edible oil mechanical equipment andit is aslo a group enterprise integrating scientific research, manufacturing,sales as one.Our products are exported to more than 30 countries,and regions such as Russia, India, South Afica, Ukraine, Nepal, Indonesia and so on.
1. Zhengzhou Qi’e grain and oil machinery company is the manufacturer, the equipment is cost-effective.
I visit the Qi’e factory many times before I buy their machine, they have a big factory, they can produce the pre-treatment equipment, solvent extraction equipment and refining equipment independently. Because they are manufacturer, the price is reasonable. I belive we will have a new cooperation in the near future.
2. Zhengzhou Qi’e grain and oil machinery company’s have good technology team and service team.
My factory has just completed construction. Their engineers have a wealth of experience in installation. They guide installation during installation time and very responsible. After we finish the installation, they were debugged. The quality of finished oil is very good. I think they are best manufacturer.
If you have interest in our machine, please kindly send us your inquiry details in the Below , Click "Send" Now!

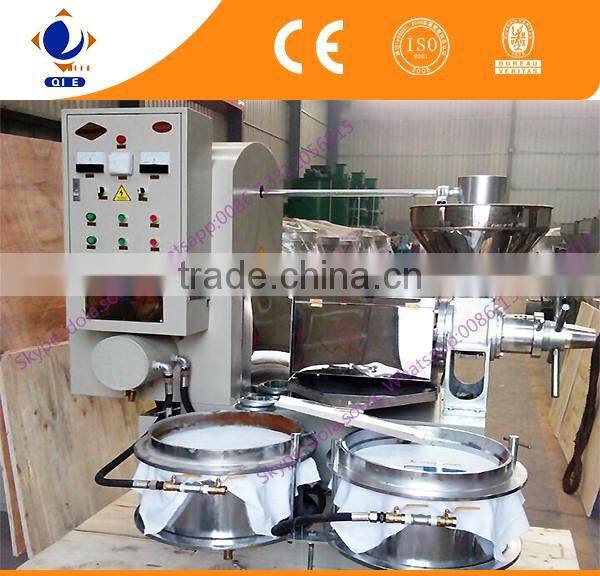

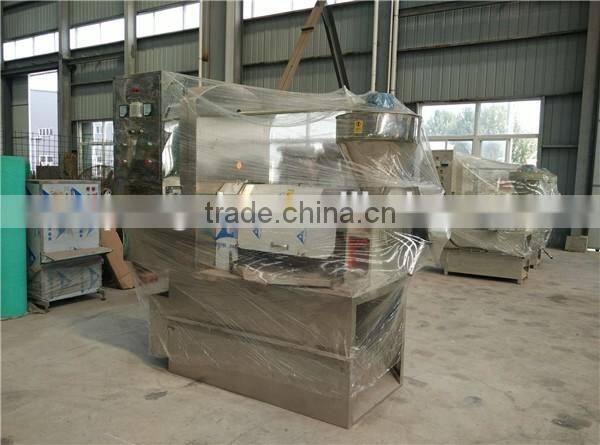

automatic sunflower oil expeller-1

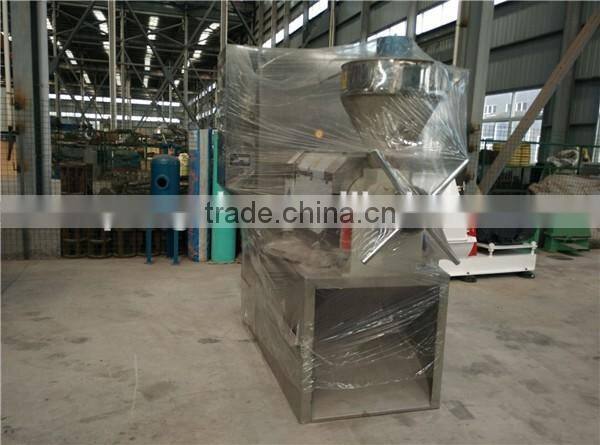

automatic sunflower oil expeller-2

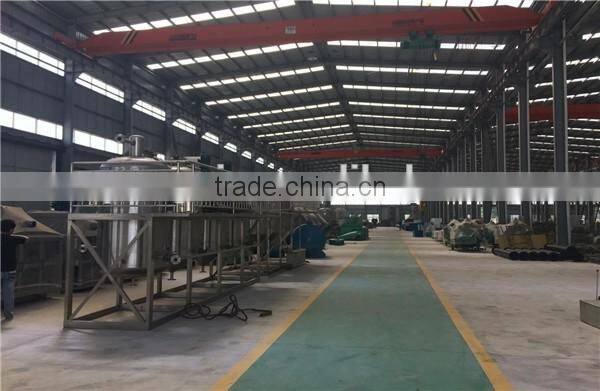

sunflower oil factory
