Continuous Oil Making Line/soybean Oil Production Plant With CE

Continuous oil making line/soybean oil production plant with CE

press unit.

2.Small top-grade cooking oil press unit, 1t-5t treated daily

3.Oil seed pretreatment: prepress unit, 10t-2000t treated daily
4.Oil seed etraction: 5t-1000t cake treated daily, adopting solvent(heane) etraction.

5.Top-grade cooking oil and salad oil press unit, 5t-500t treated daily
6.First class oil refining unit: 5t-1000t crude oil treated daily

• Extraction sectio

Soybean cake Etractor Solvent spraying Micella Evaporation section Cooling system

Cake Desolventization Cooling system Crude oil

Meal Meal packing

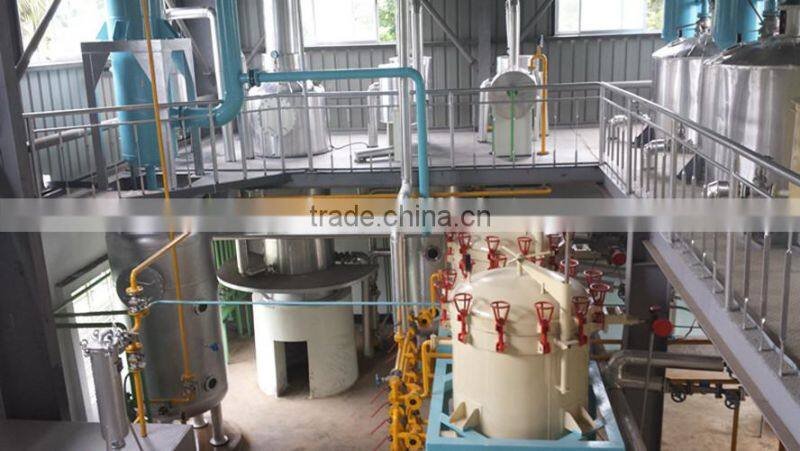

Soybean oil production plant introduction:

Extraction process:

1. Solvent pumps: continuously spray solvent to the rotary-type etractor

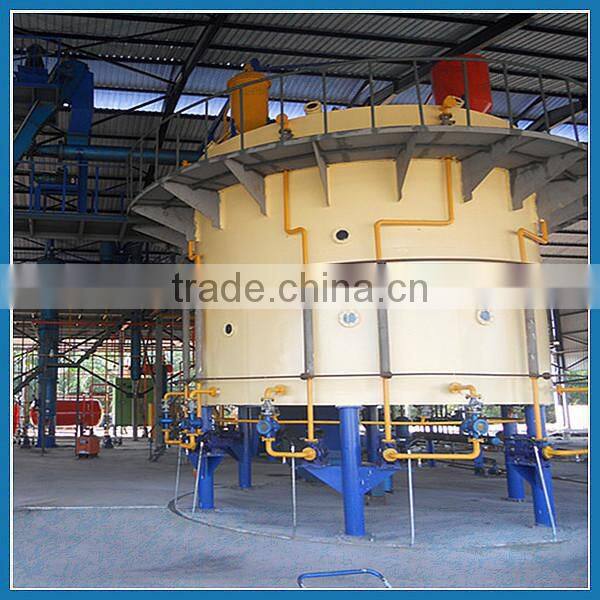

2. Roary etractor: Spray and soak the prepressed cake with solvent so that oil fats can be disolved in solvent(form miscella). After processing, you can get wet meal and miscella (mied oil)
3. DTDC: usd to separate the solvent from the wet meal.
4. Miscella tank 1st: pump the miscella (oil with solvent) in to the miscella 1st , then add saline water to it. The phospholipid in the miscella will react with the saline water, at last the reactant precipitate, reaching the goal of purifying.
5. Miscella tank 2nd: the purified miscella will be pumped into it.
6. Miscella stripping: it will remove the remaining solvent in miscella. And the solvent will be discharged to condenser for recycling.
7. Condensers: to cooling the solvent gas separated from the wet meal and miscella for recycling.

Soybean oil production plant advantage:

1. Our products have the high quality and high performance.we use the stainless steel instead of the carbon steel.
2. we buy directly from the manufacturer for guaranteeing the quality.
3. our welding worker should get the certificates.and our electric machines all imported from Germany. And more other advantages we will talk in our specific condition.
