Soya Cake Extraction Machine ,soya Cake Solvent Extraction Equipment,soya Oil Plant Machine

Process Features of soya cake extraction machine Rotocel Extraction:

1. Adopt stainless steel fied grid plate and increase the horizontal grid plates, which can prevent the strong miscella from flowing back to the blanking case, so as to ensure good etraction effect;

2. The rotocel etractor is driven by rack, with unique rotor of balanced design, low rotating speed, low power, smooth operation, no noise and quite low maintenance cost;

3. The feeding system can adjust the rotating speed of airlock and main engine according to the feeding quantity and maintain a certain material level, which is beneficial to the micro negative pressure inside the etractor and reduce the solvent leakage.

4. The advanced miscella circulation process is designed to reduce the fresh solvent inputs, reduce the residual oil in meal, improve the miscella concentration and save energy by reducing the evaporation capacity.

5. The high material layer of the etractor helps to form immersion extraction, reduce the meal quality in miscella, improve the quality of crude oil and reduce the evaporation system scaling

6. Specially suitable for the etraction of various pre-pressed meals.

Main Economic and Technical Parameters of soya cake extraction machine :

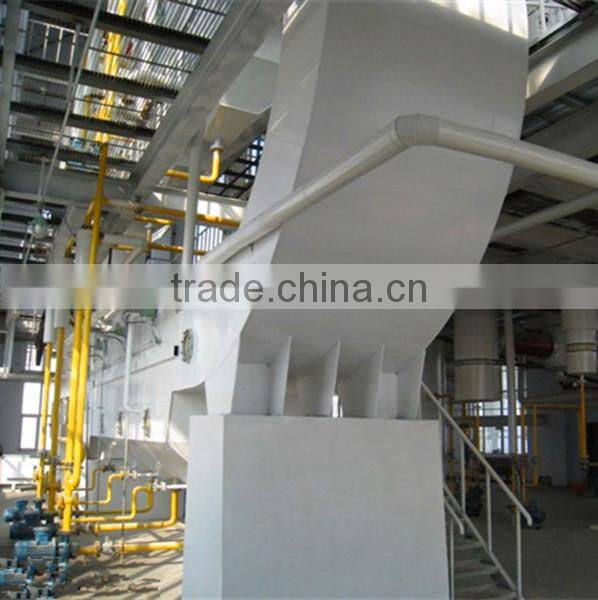

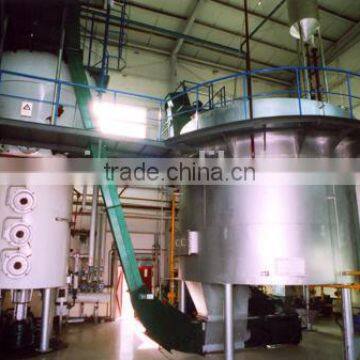

Picture of soya cake extraction machine

Soya cake extraction machine

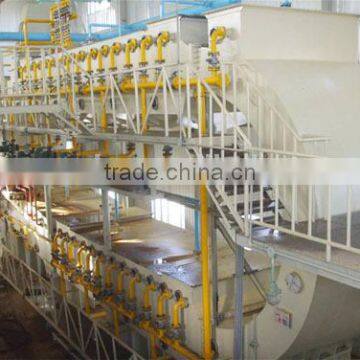

Towline extractor of soya cake extraction machine :

Towline Extractor Advantages:

1) The material is divided into several independent units on the material bed, which can effectively prevent miscella at all levels from fleeing hither and thither on the material layer and ensure the concentration gradient between several sprays.

2) Immersion area appears in each lattice, which can help achieve better immersion effect.

3) The chain bo is supported by track and can prolong the service life of screen deck by not touching it.

4) The towline etractor is driven by world leading double-shaft hydraulic motor, with balance force, reliable operation and less maintenance cost.

5) Specialty suitable for the etraction of high oil and high power materials, and better immersion effect can be epected for ordinary oil plants.

Main Economic and Technical Parameters of Towline Etractor (take 300T/D as an eample):

Our comapny

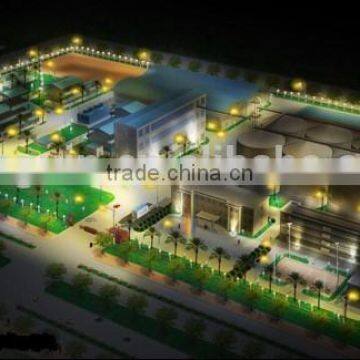

Our Factory
