Vegetable Edible Oil Mill Machine And Equipment
There are many kindsl of edible oil mill:
Model |
Squeeze worm rotation speed |
Exterior size(mm) |
Cpacity |
Main engine |
Vacuum pump |
Heater |
6YL-80 |
30-45tun/min |
1650x1150x1750 |
80-150kg/h |
Y160L-6-5.5KW |
Y90S-4-0.55KW |
2KW |
6YL-100 |
30-40turn/min |
1950x1300x1900 |
150-250kg/h |
Y160M-6-7.5 |
Y90S-4-1.1 |
3KW |
6YL-120 |
30-40turn/min |
2050x1350x2000 |
200-300kg/h |
Y160L-6-11KW |
Y100L1-4-1.5KW |
3.3KW |
6YL-130 |
28-40turn/min |
2200x1600x2150 |
250-400kg/h |
Y180L-6-15KW |
Y100L1-4-2.2KW |
3.8KW |
6YL-160 |
28-40turn/min |
2500x1600x2500 |
400-600kg/h |
Y200L-6-18.5KW |
Y100L1-4-2.2KW |
4KW |
6YL-180 |
28-38turn/min |
2750 x1750 x2350 |
800-1000kg/h |
6-22kw |
2.2kw |
3kw |

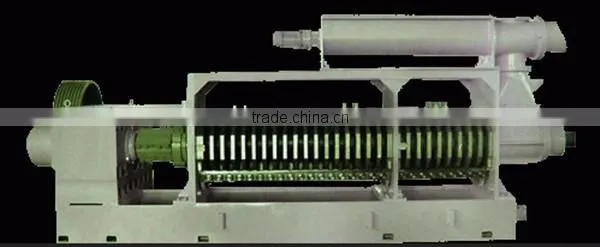

When oil press operating, the prepared materials enter the pressing chamber from the hopper and then move forwards by the rotating of pressing screw and is pressed under the high-pressure condition in the chamber, friction between material and chamber will be created, which also created friction and relative movement among material particles, on the other hand, root diameter of the pressing screw carries larger from one end to the other. hence, when rotating, it not only pushed particles moving forwards but also turns them outwards as well, meanwhile, particles adjacent the screw will rotation along with screw rotating, causing every particle inside the chamber to possess different speed, therefore relative movement among particle creates heat which is necessary during manufacturing. because of helping protein change property, damage colloid, increase plasticity, decrease oils elasticity, resulting in high oil productivity.
Big capacity of edible oil mill:
1. About 95% oil was extraction out from oil material; 2. high oil quality 3.high protein conent in the pressed cake;4.match wiht water cooling device for low tempreture press 5.multi function press,hot press,and the up cooker tempreture could reach into 90-110;6.it is adapt to many vegetable materials,such as sunflower seed,peanut,rapeseed and more; 7. alloy sequeeze bar and sprial,long service life
Spare parts of edible oil mill:
Model |
Name |
Q.T.Y |
Material |
HNX220 |
1# Pressing bolt |
1Pcs |
Carburization |
HNX220 |
2# Pressing bolt |
1Pcs |
Carburization |
HNX220 |
3# Pressing bolt |
1Pcs |
Alloy |
HNX220 |
4# Pressing bolt |
1Pcs |
Alloy |
HNX220 |
5# Pressing bolt |
1Pcs |
Alloy |
HNX220 |
6# Pressing bolt |
1Pcs |
Alloy |
HNX220 |
7# Pressing bolt |
1Pcs |
Alloy |
HNX220 |
1# Blocking ring |
1Pcs |
Alloy |
HNX220 |
2# Blocking ring |
1Pcs |
Alloy |
HNX220 |
3# Blocking ring |
1Pcs |
Alloy |
HNX220 |
Light cover |
1Pcs |
Alloy |
HNX220 |
1# Ring gasket |
1Pcs |
Carburization |
HNX220 |
2# Ring gasket |
1Pcs |
Carburization |
HNX220 |
Long cage bar |
160Pcs |
Alloy |
HNX220 |
Short cage bar |
40Pcs |
Alloy |
HNX220 |
Long drawknife |
2Pcs |
|
HNX220 |
Short drawknife |
2Pcs |
|
HNX220 |
Circle of cake discharge |
1Pcs |
|
HNX220 |
Circle of cake revise |
1Pcs |
|
HNX220 |
Thread bushing |
1Pcs |
|
HNX220 |
Big turbine |
1Pcs |
|
HNX220 |
Small turbine |
1Pcs |
|
HNX220 |
Tight nut |
1Pcs |
|
HNX220 |
Main shaft jam nut |
1Pcs |
|
HNX220 |
Feed wing |
1Pcs |

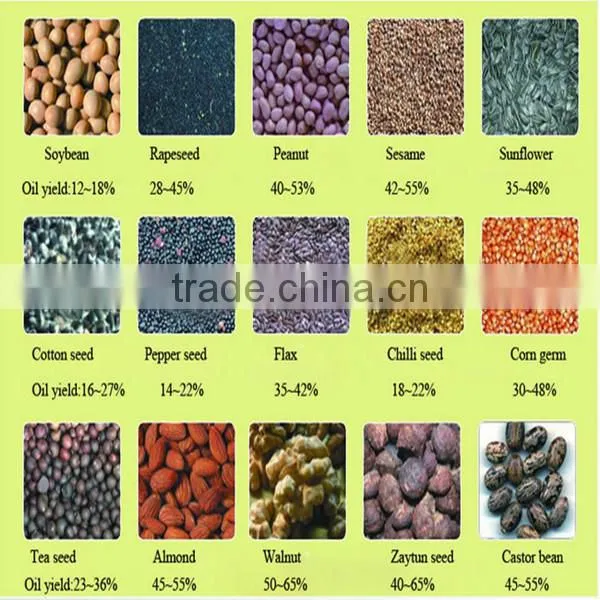

Edible oil mill:adapt to many vegetable oil crops:

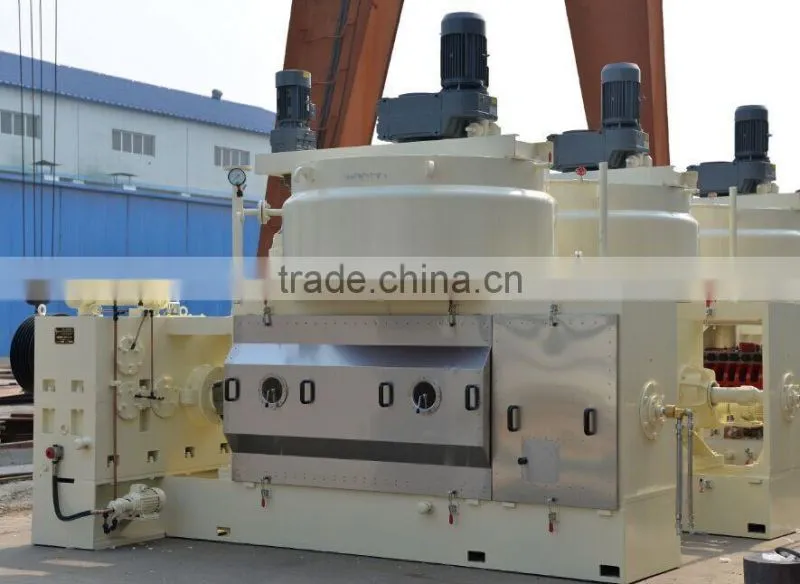

Other capacity of edible oil mill:
Why choose QI'E sunflower oil cold press?
Excellent design, advanced tech, reliable equipment, good performance, favorable and reasonable price, prompt delice!
Zhengzhou QI'E Grain&Oil Machinery Co.,Ltd is a large-size joint-equity enterprise which specialize in producing edible oil mechanical equipment and it is also a group enterprise integrating scientific research, manufacturing, sales as one. Research Institute of Machine Design Company and Henan, Henan University of Technology (formerly the Zhengzhou Grain College) school-enterprise cooperation in the oil equipment to carry out long-term, protein extraction, phospholipid extraction, etc. R & D and application of new technologies.
Attn: Tom
Website:
Phone: +86-15515901135
Skype: Luyachao819
Whatsapp/viber/tango: +8615515901135
If you want to learn more or purchase equipments, please contact me.
