ss304 metal sifter/ education sieve
Characteristic
Usage: sample selection and classification of soil, aggregates and stones
Type: BS & ISO Standard, woven and perforated
Woven Wire Mesh Sieve is made of stainless steel mesh and supplied with full-depth frames.
Perforated Plate Sieve (Square Hole) is made of tinned steel plate and supplied with full-depth frames.
Specifications
Frame diameters: Φ200mm, Φ300mm
Aperture sizes: 38μm, 45μm, 53μm, 63μm, 75μm, 80μm, 90μm, 100μm, 106μm, 125μm, 150μm, 160μm, 180μm, 200μm, 212μm, 250μm, 300μm, 315μm, 355μm, 400μm, 425μm, 500μm, 600μm, 630μm, 710μm, 800μm, 850μm, 1.00mm, 1.18mm, 1.25mm, 1.40mm, 1.60mm, 1.70mm, 2.00mm, 2.36mm, 2.50mm, 2.80mm, 3.35mm, 4.00mm, 4.75mm
Woven wire mesh test sieves
Material |
Stainless Steel 304 |
|
Production Technology |
Weaving |
|
Production Standard |
ISO3310-1:1990 R20/3,R20,R40/3 series, ASTM, TYLER, JIS, DIN, BSI |
|
Sieve Diameter (mm) |
Φ75/ Φ100/ Φ127/Φ200/ Φ203/ Φ300/ Φ400/ Φ600 |
|
Screen Frame |
Thickness |
0.6-0.7 mm |
Height |
25mm, 30mm, 35mm, 50mm, 60mm |
|
Shape |
Round |
|
Aperture shape |
Square |
|
Aperture |
0.02-3mm |
|
Perforated sheets test sieve
Material |
Stainless Steel 304 |
|
Production Technology |
Punching |
|
Production Standard |
ISO3310-2:1990 R20/3,R20,R40/3 series, ASTM, TYLER, JIS, DIN, BSI |
|
Sieve Diameter (mm) |
Φ200/ Φ300/ Φ400/ Φ600 |
|
Screen Frame |
Thickness |
0.6-0.7 mm |
Height |
25mm, 50mm,60mm |
|
Shape |
Round |
|
Aperture shape |
Round, square |
|
Aperture Shape |
150mm-3mm |
|
Electroformed sheets test sieve
Material |
Nickel (Ni) |
|
Production Technology |
Electrochemical machining |
|
Production Standard |
ISO3310-3:1990 R20/3,R20,R40/3 series, ASTM, TYLER, JIS, DIN, BSI |
|
Sieve Diameter (mm) |
Φ75 |
|
Screen Frame |
Thickness |
0.6-0.7 mm |
Height |
35mm |
|
Shape |
Round |
|
Aperture |
500μm-5μm |
|

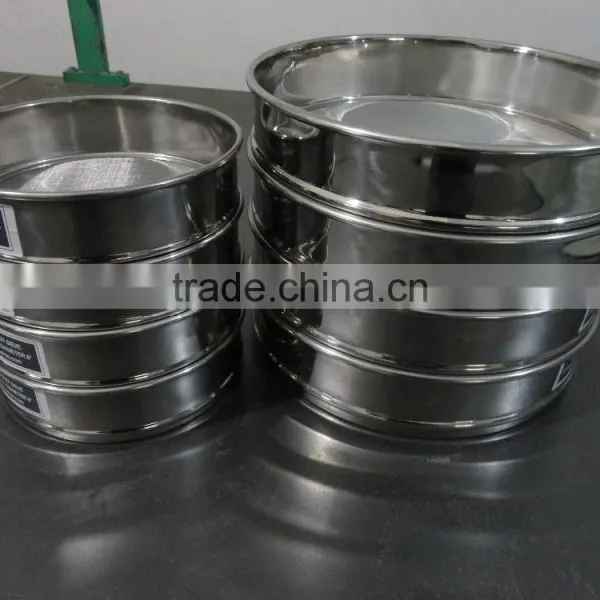

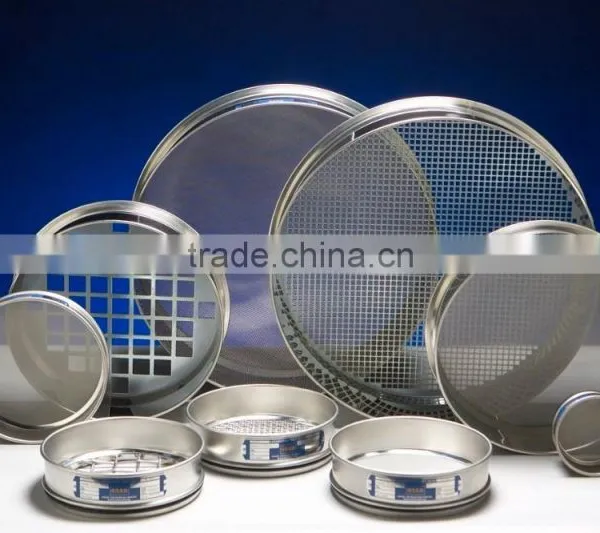

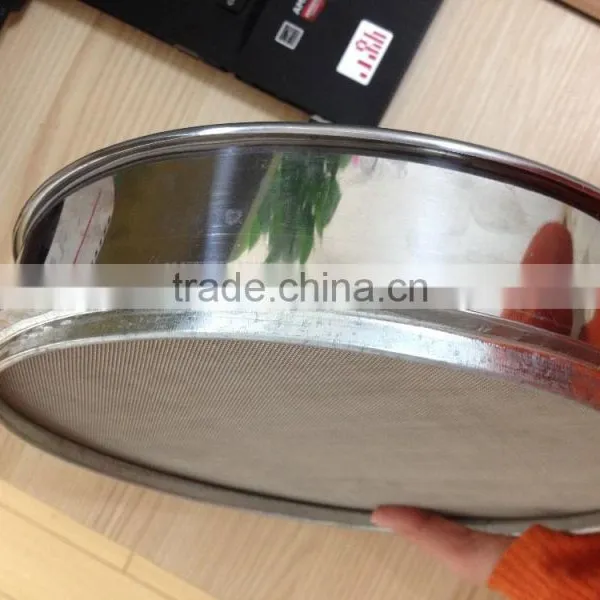

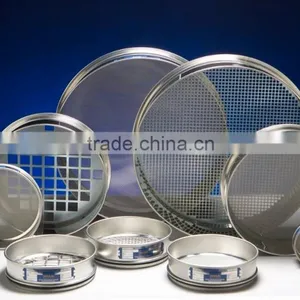

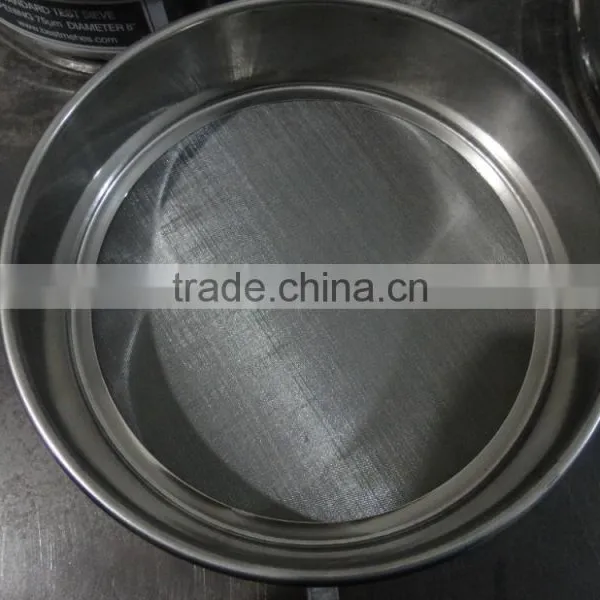

Sieve images
Wooden case package
ISO9001:2008 certificate
Factory picture
