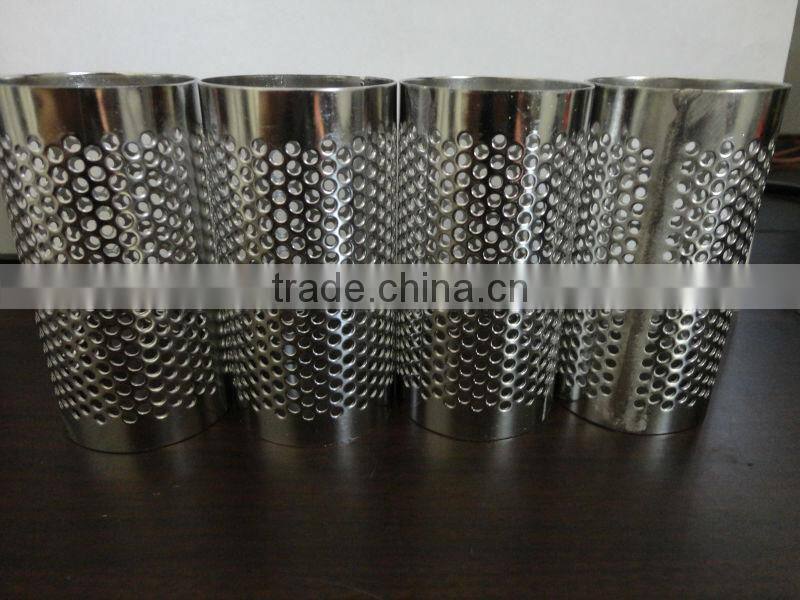

perforated stainless steel sheet
Material: Mild steel perforated metal screen; galvanized iron perforated metal screen; aluminum perforated metal screen; stainless steel perforated metal screen; perforated metal sheets in other materials.

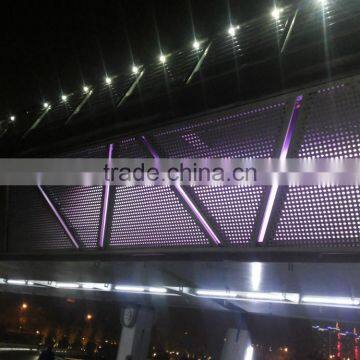

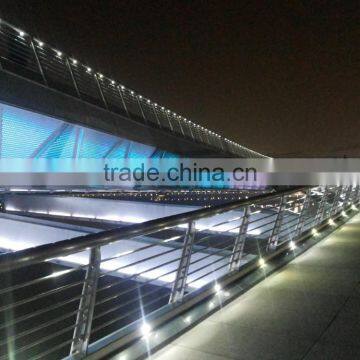

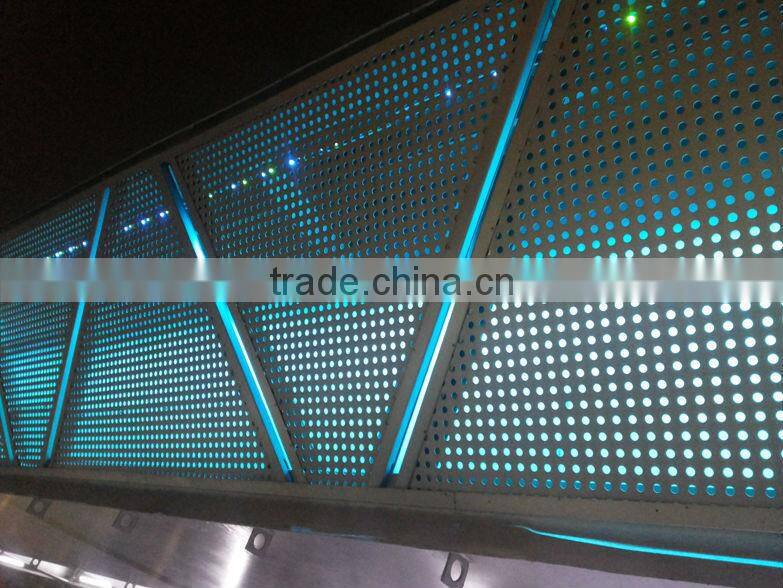

Uses: With the most complicated and beautiful designs for producing of vibrating screen for oil field drilling, mine screening, engineering, sifting of grains, decorations and designs of buildings.

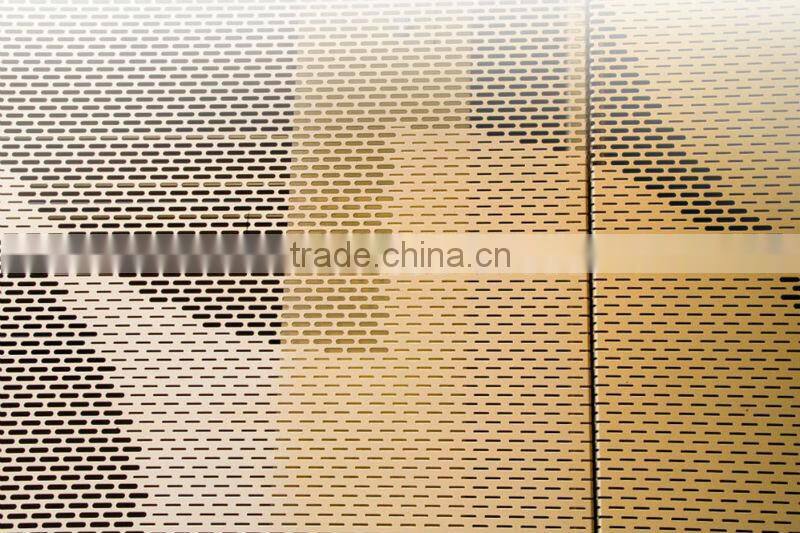

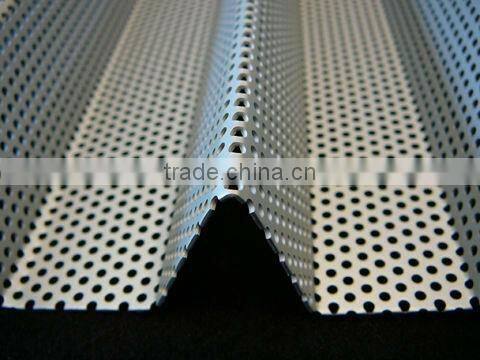

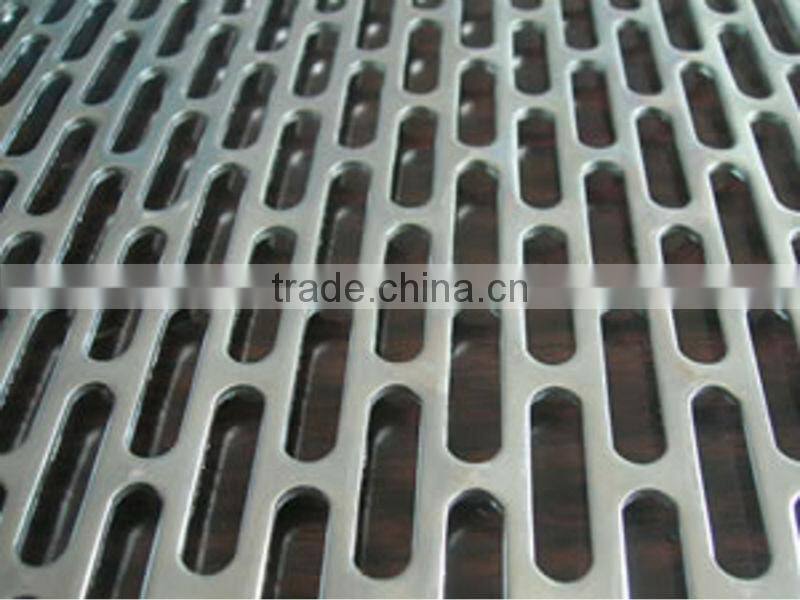

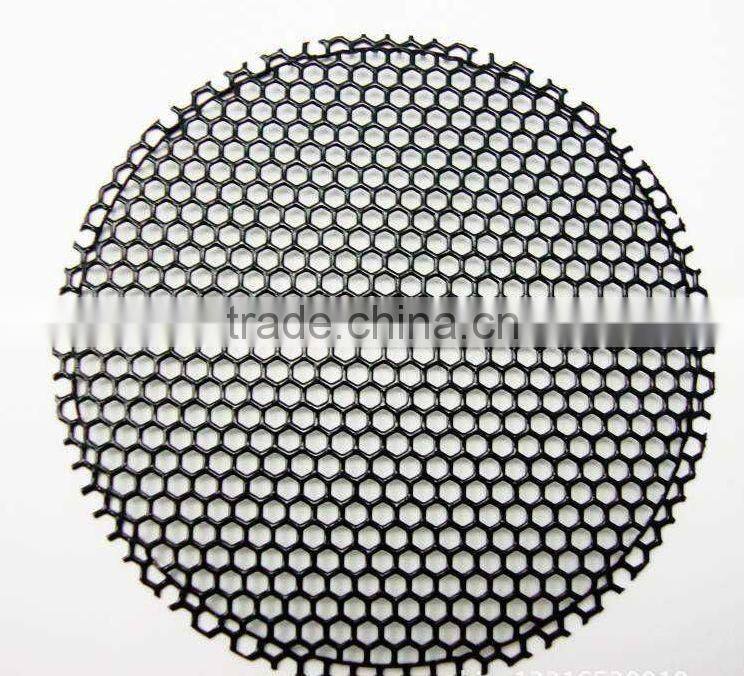

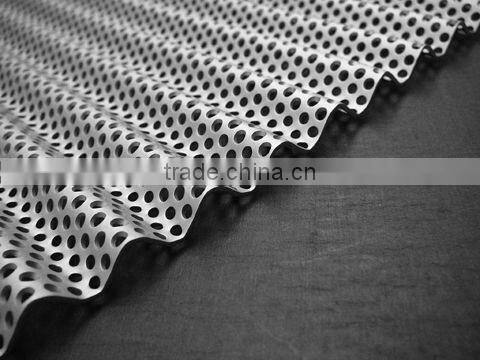

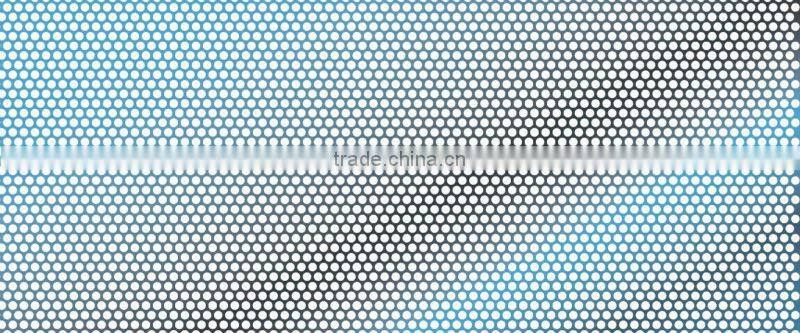

Perforation patterns: Round perforations, square perforations, slotted perforations, fish scale perforations, hexagonal perforations, cross perforations as well as some other special patterns
Hole Diameter | Staggered Centers | Sheet Thickness | Open Area | ||
0.033 In. | 0.84mm | 0.055« | 0.0165-0.0198 IN. | 0.40-0.50mm | 28.00% |
0.045 In. | 1.14mm | 0.066« | 0.0165-0.0198 IN. | 0.40-0.50mm | 37.00% |
1/16 In. | 1.59mm | 3/32 In. | 0.026-0.053 IN. | 0.66-1.35mm | 41.00% |
1/16 In. | 1.59mm | 1/8 In. | 0.046-0.053 IN. | 1.17-1.36mm | 23.00% |
3/32 In. | 2.38mm | 1/4 In. | 0.033-0.053'' | 0.84-1.35mm | 12.50% |
1/8 In. | 3.17mm | 3/16 In. | 0.026-0.129'' | 0.80-2.89mm | 40.00% |
1/8 In. | 3.17mm | 7/32 In. | 0.026-0.039'' | 0.66-0.99mm | 29.60% |
5/32 In. | 3.97mm | 3/16 IN. | 0.026-0.065'' | 0.66-1.65mm | 63.00% |
3/16 In. | 4.76mm | 5/16 IN. | 0.029'', 0.059'' | 0.73mm, 1.50mm | 32.00% |
1/4 In. | 6.35mm | 5/16 IN. | 0.026-0.079'' | 0.66-2.00mm | 58.00% |
1/2 In. | 12.70mm | 11/16 IN. | 0.059'', 0.121'' | 1.50mm, 3.00mm; | 48.00% |

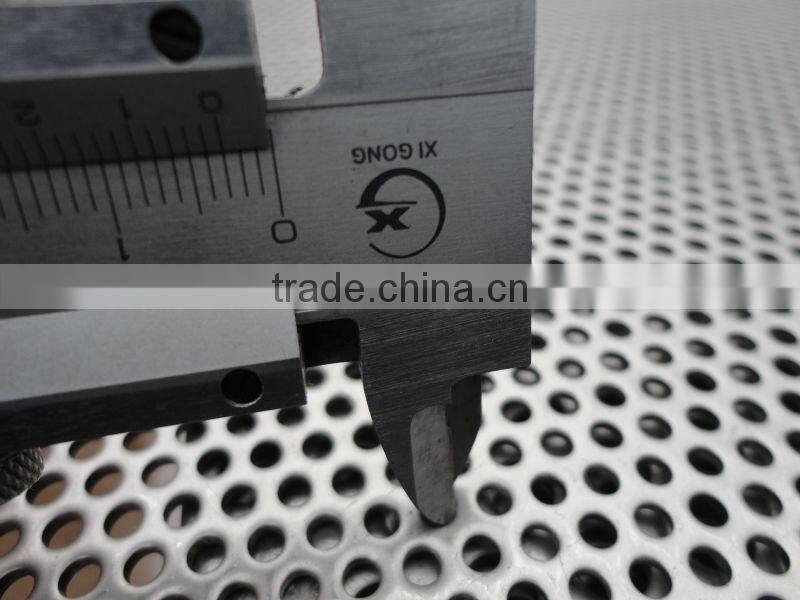

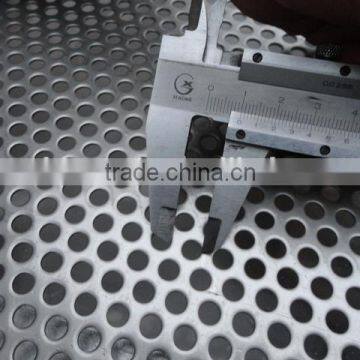

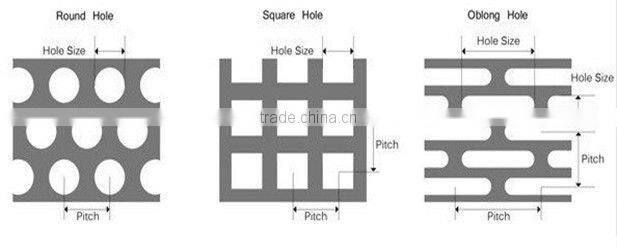

Hole size and pitch
we also manufacture other sheet sizes according to clients' requests.

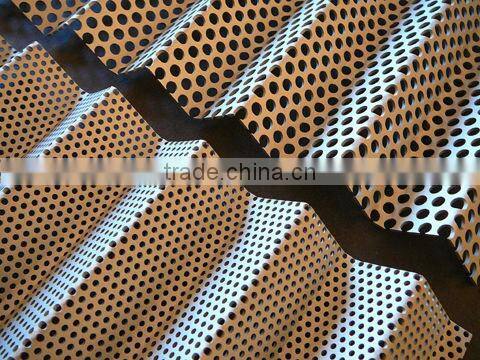

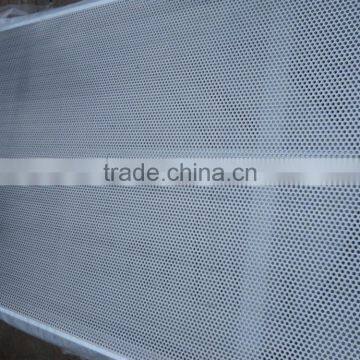

Perforated product:

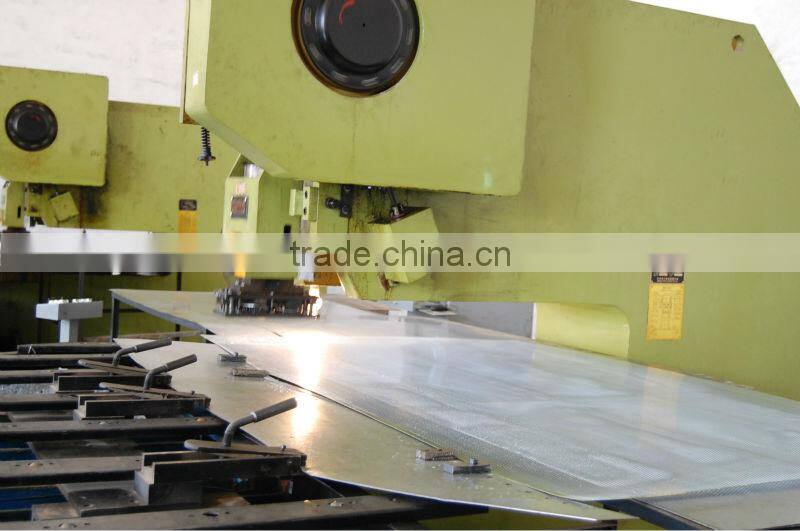

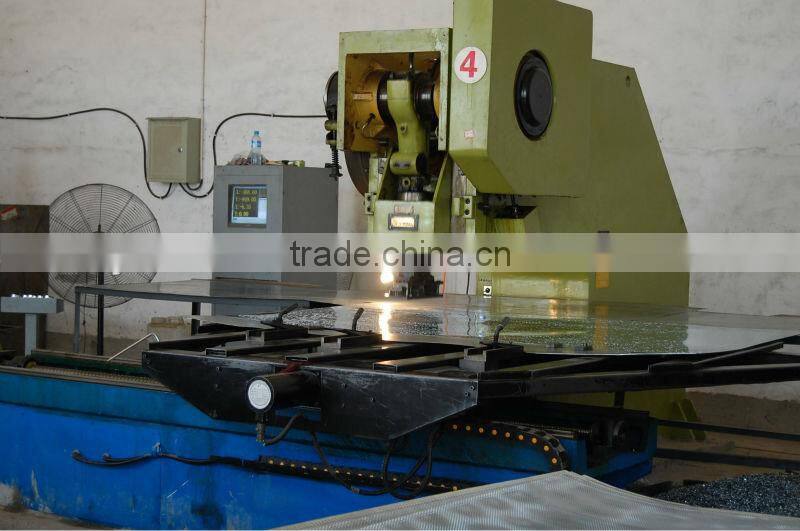

Punching machines:
