M2100 Sanray UHF RFID Reader Module With Good Price

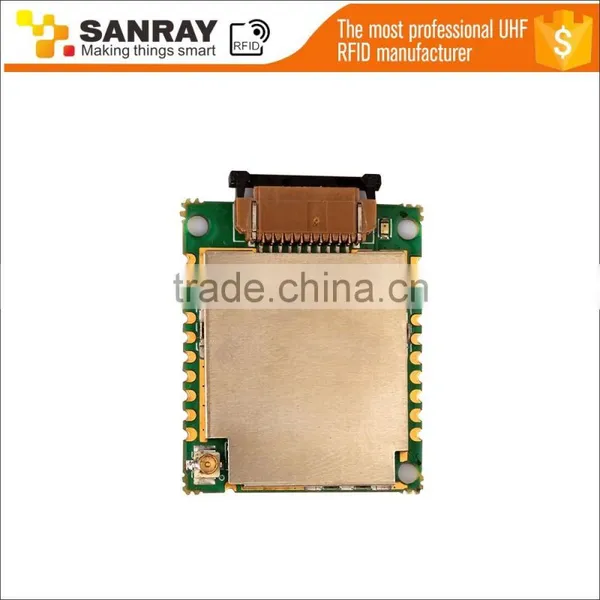

M2100 Sanray UHF RFID Reader Module With Good Price photo-1

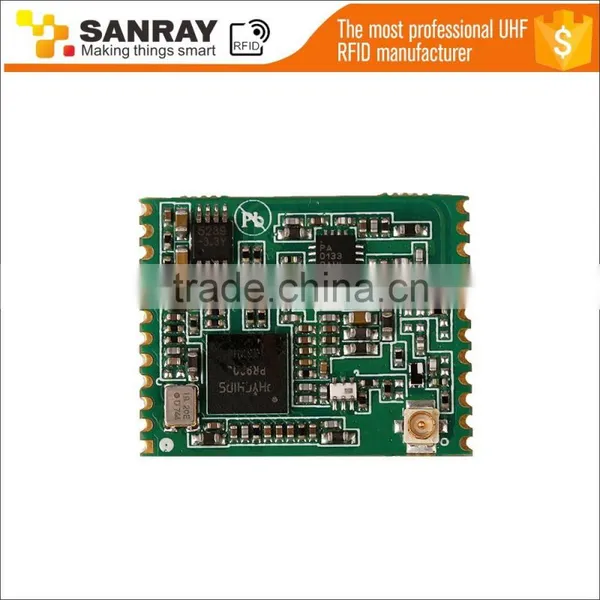

M2100 Sanray UHF RFID Reader Module With Good Price photo-2

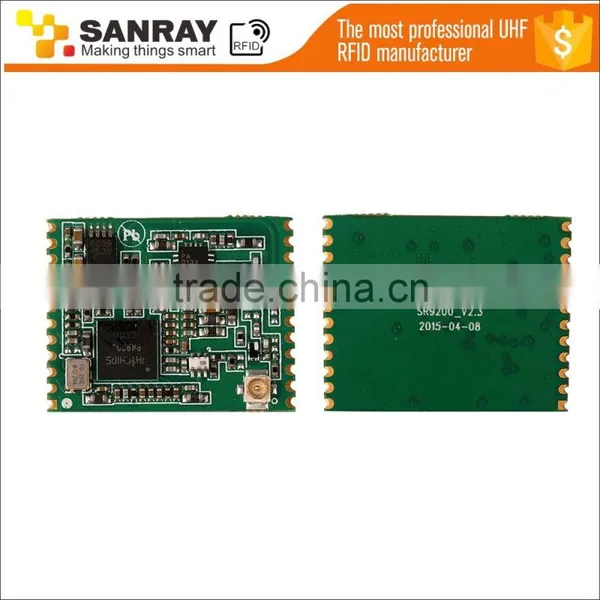

M2100 Sanray UHF RFID Reader Module With Good Price photo-3

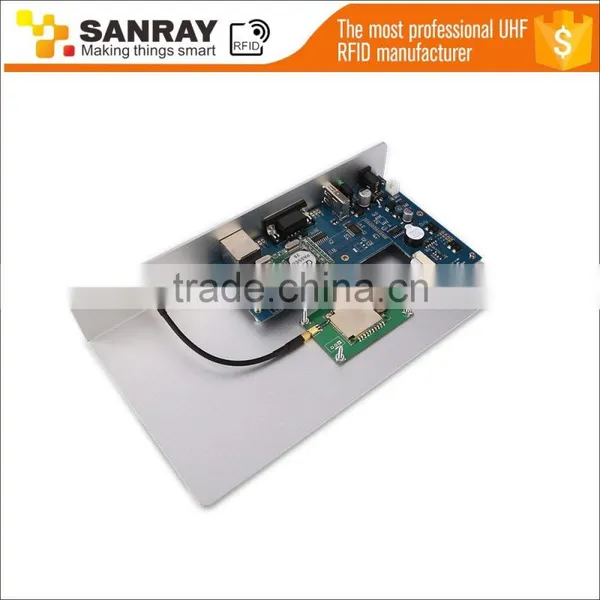

M2100 Sanray UHF RFID Reader Module With Good Price photo-4
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Sanray
Model Number:
M2100
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen/Hongkong
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Guangdong, China
Brand Name Sanray
Model Number M2100
Product Description

Sanray UHF RFID Reader Module M2100

Employed 9200 RF Chips, up to -82dbm receiving sensitivity and the highest performance in this field makes this module more suitable for harsh application environment.


Low power consumption, brilliant performance.

Provide the most comprehensive functions SDK and ports, easy to integrate RFID software.

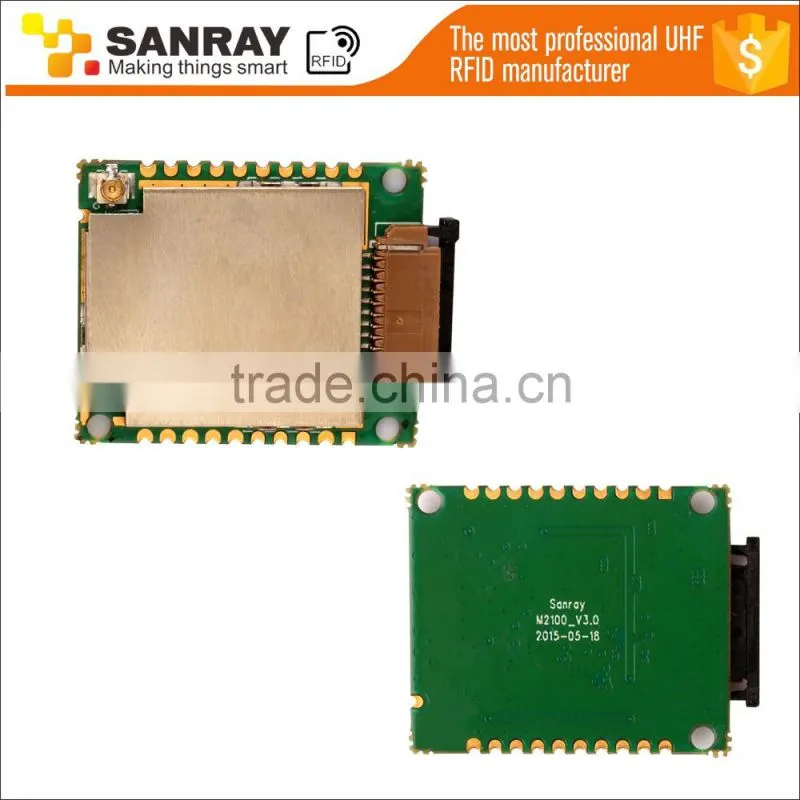

Detailed Image
Electrical Parameters of Sanray UHF RFID Reader Module M2100
RFID IC Type:
PHYCHIPS PR9200
Working Voltage:
DC 5V
Dimension:
25.0*20.0*3.5MM
Max working current:
<350mA
Working Frequency:
840~960MHz
Sleep Current:
<0.5mA
Max Output Power:
28dBm
Working Temperature:
-25℃~+65℃
Receiving Sensitivity:
-60dBm
Working Humidity:
≤95%(+25℃)
Antenna Interface:
IPEX
Storage Temperature:
-40℃~+80℃
Communication Protocol:
EPC global UHF Class 1 Gen 2/ISO 18000-6C
Antenna port impedance:
50Ω
Module Interface:
10PIN FPC on pin + 20 pin with 2.0 MM hole spacing of stamps
Largest Reading Labels:
Over 2.5m(with 2dBi ceramic antenna and white card)
Serial communication parameters:
Baud rate can be adjusted (default 115200 BPS), the parity bit: no, the data bits: 8 bits, stop bits: 1
Supporting Working Areas:
China 1,China 2,US, Canada , U.S. FCC; Europe ,Japan,Korea,Malaysia,Taiwan
M2100 FPC PIN definition
PINS
Name
Description
1
UART TX0
The serial interface to send, TTL level
2
UART TX0
The serial interface receive and TTL level
3
P03
GPIO Port
4
P10
GPIO Port
5
P15
GPIO Port
6
P_EN
Power supply can make feet, buy low level (0 v) module into sleep mode
7
GND
GND
8
GND
GND
9
VCC
Power supply, the input voltage of 3.7 V to 5.5 V
10
VCC
Power supply, the input voltage of 3.7 V to 5.5 V

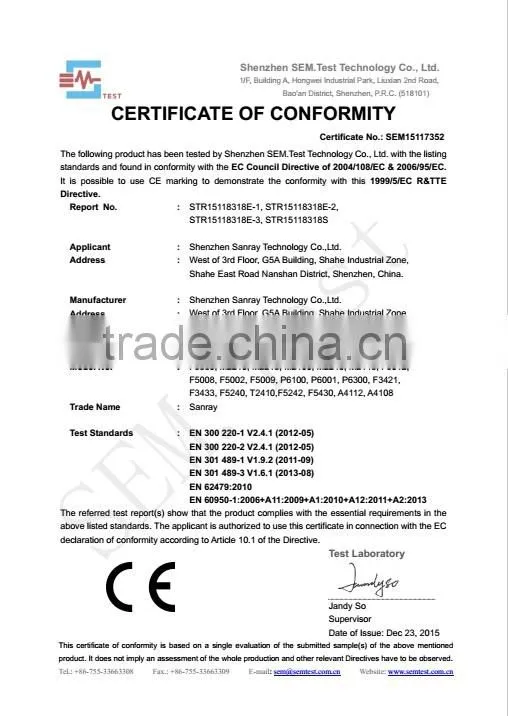

Certifications
Applications

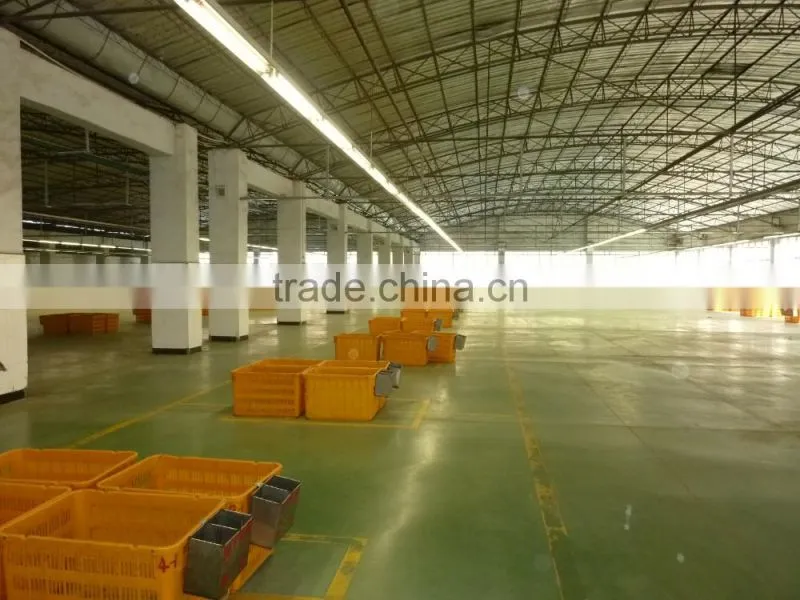

Company Information
