Anti-interference Integrated UHF Rfid Reader For Digital Warehouse Management

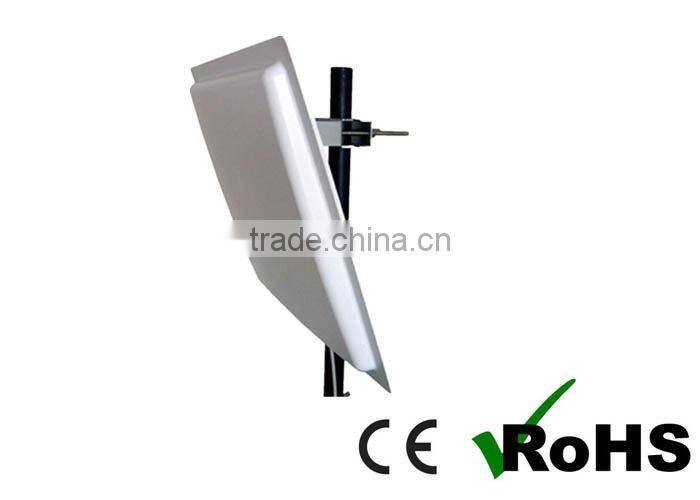

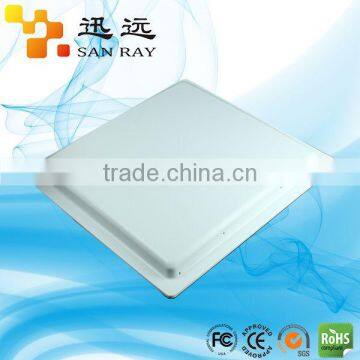

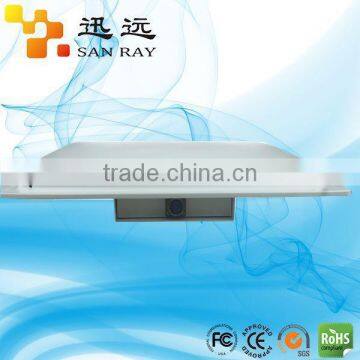

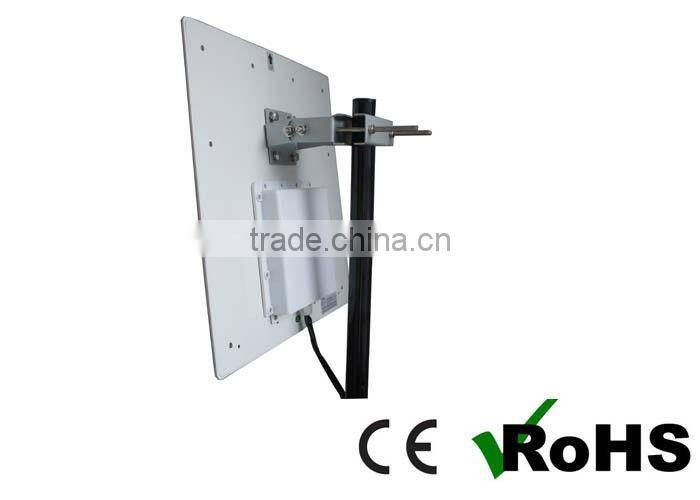

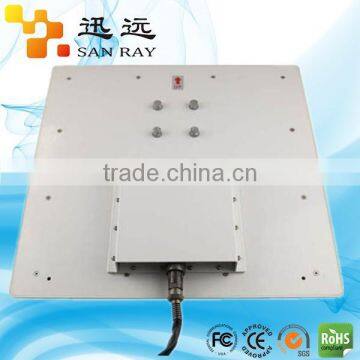

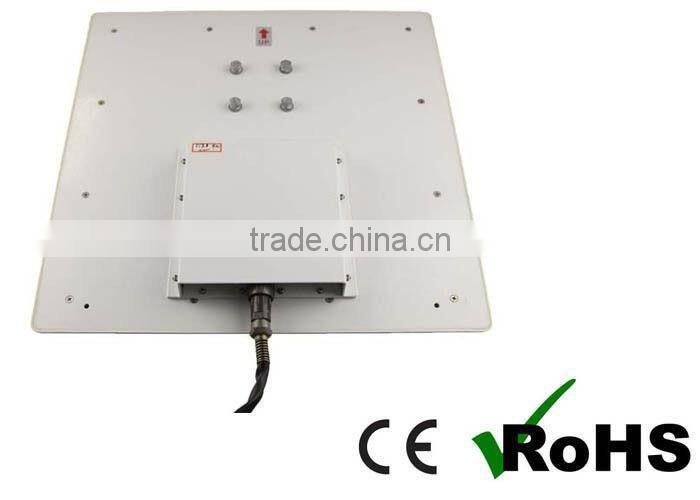

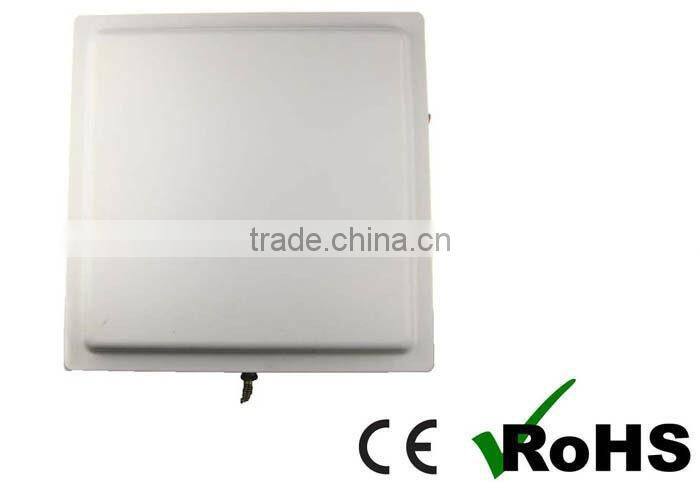

F5012-H Long-range UHF RFID Integrated Reader is a high-performance reader/writer designed for high challenging RFID application environment. It employs our high efficient M2210 RF module, 12dbi linear polarization antenna and integrates with interfaces of RS232, RS485 and Ethernet, which can realize a reading distance of 14m. It owns a superior multi-tags reading rate and can achieve a tag identification rate of 400tags/s or above.
F5012-H adopts ABS industrial plastic case. Waterproof, dustproof and excellent anti-interference capability make this reader meet the requirements of all-weather outdoor industrial application.
This product is suitable for RFID intensive and more challenging environment and required a higher reading/writing performance, such as warehousing, logistics, production line management, etc..
Product advantage:
1. Employed IMPINJ R2000 RF Chips, up to -82dbm receiving sensitivity and the highest performance in this field makes this module more suitable for harsh application environment.
2. High stability and reliability, 60*24 hours high temperature of workstation, can work stably and continuous.
3. Remarkable performance, can achieve a reading distance over 14m for single tag reading.
4. Remarkable performance in intensive tags reading, can attain a tags identification rate of 400tags/s.
5. Provide the most comprehensive functions SDK and ports, easy to integrate RFID software.
6. Adopted integrating RF chip, module performance is more stable, and more suitable for harsh application environment.
7. The use of carrier wave cancellation technology makes the tags reading more accurate and reading scope wider.
8. Enhanced noise suppression function for reliable data capturing.
9. High precision return signal strength (RSSI).
10. Excellent performance of anti-interference and lightning-proof design.
11. ABS industrial plastic case, rugged and durable.
12. Waterproof and dustproof of industrial design, IP64.
13. WIFI optional.
Main Parts Performance Parameters
| NO. | Name | Parameters |
| 1 | Working Voltage | DC +12V |
| 2 | Working Temperature | -25~+65℃ |
| 3 | Working Humidity | ≤95%(+25℃) |
| 4 | Storage Temperature | -40~+80℃ |
| 5 | Tag Protocol | EPCglobal UHF Class 1 Gen 2 / ISO 18000-6C |
| 6 | Working Frequency | 840~960 MHz |
| 7 | Supporting Working Areas | China 1, China 2 |
| US, Canada and other regions following U.S. FCC | ||
| Europe and other regions following ETSI EN 302 | ||
| 208 with & without LBT regulations Japan,Korea,Malaysia,Taiwan | ||
| 8 | Output Power | Software adjustable, step interval 1.0dB, maximum +30dBm |
| 9 | Output Power Flatness | ±0.2dBm |
| 10 | Receiving Sensitivity | -82dBm |
| 11 | RF Port Standing Wave | ≤1.5 |
| 12 | Reading Distance | ≥14m(relate to tags type, transmitted power and application environment) |
| 13 | Multi-tags Reading | ≥400tags/s |
| 14 | Interface Communication Rate | 115200bps |
| 15 | Working Temprature Detection | Support |
| 16 | Intensive Read/Write Mode DRM | Support |
| 17 | Antenna Connection Protection | Support |
| 18 | RSSI | Support |
| 19 | Antenna Type | 12dbi linear polarization antenna |
| 20 | Communication Port | RS485,RS232(DB-9)RJ45(100M Ethernet port) |
| 21 | Buzzer | Yes |
| 22 | Enclosure | ABS industrial plastic case |
| 23 | Dimension | 44.5*44.5*7.5CM |
| 24 | IP Grade | IP64 |
Interface Definition:
| Pin NO. | Name | Description |
| 1 | 485-A | RS485 A |
| 2 | 485-B | RS485 B |
| 3 | GND | Ground |
| 4 | GND | Ground |
| 5 | E-6 | Ethernet RJ45 PIN6 |
| 6 | E-3 | Ethernet RJ45 PIN3 |
| 7 | +12V | DC +12 Power supply |
| 8 | GND | Ground |
| 9 | E-1 | Ethernet RJ45 PIN1 |
| 10 | E-2 | Ethernet RJ45 PIN2 |
| 11 | 232-RX | RS232 RX |
| 12 | 232-TX | RX232 TX |

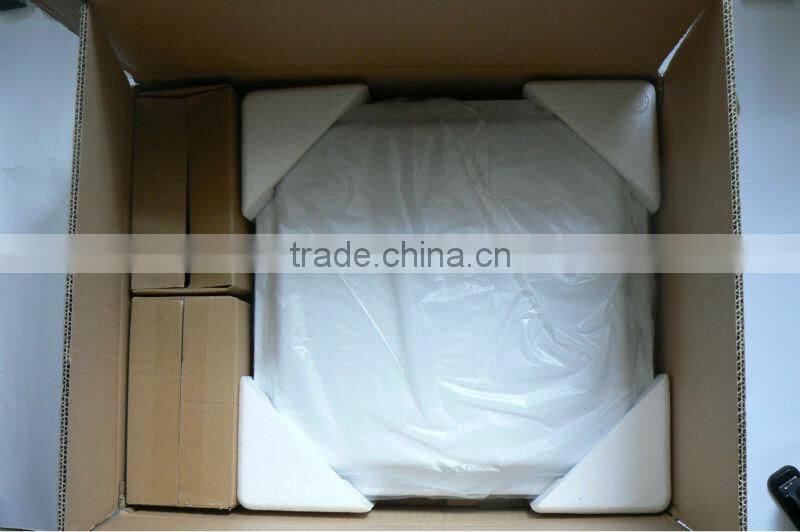

Package:
