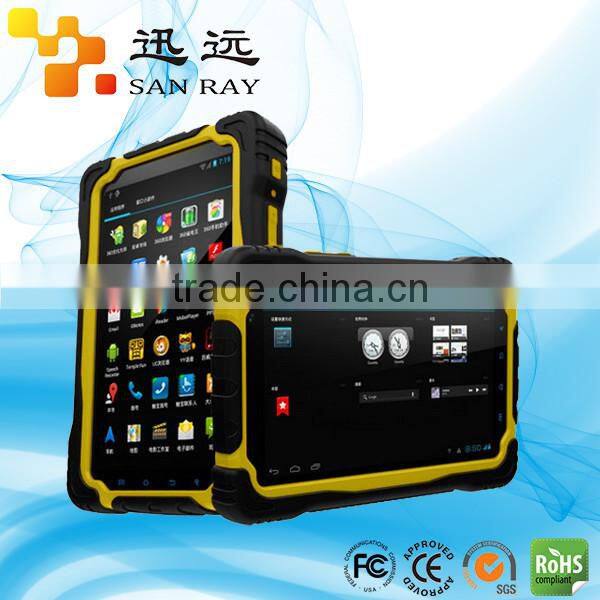

Shock resistance ISO 18000-6C protocol UHF rfid portable tablet reader with 3G/GPS (Sanray:P6300)
P6300 uhf RFID is three-in-one tablets, adopts the design of waterproof, dust proof, put down, and With advanced uhf RFID radio frequency module, read and write distance up to 3 meters.In geography, logistics, Lin Industry, public transportation, construction, maintenance, mining, military and security, has special operation and working outdoors The domain is used.Product specifications for 200 x132x21mm, weighs 650 grams, waterproof and dust proof design level IP67 (guarantee Level IP66), fall protection in accordance with MIL - STD - 810 - g/Method516.6 / Procedure IV of the military Protection level, maximum resistance to 1.8 meters of arbitrary Angle drop, static pressure test for more than 2 tons.Also has a large capacity Quantity of batteries, outdoor sunlight environment visual, ultra-low temperature under the condition of shell start up, etc
Advantages of android tablet rfid reader P6300
1. Adopt high-performance UHF RFID chips, read and write distance up to 3 meters.
2. With high stability;
3. The protection grade could reach IP67
4. The large capacity battery, long run.
5. 1.8 meters fall protection.
6. Touch screen: full toughened capacitive touch screen surface hardness greater than 8 h, 400 CD/M2 brightness visible in the sunlight.
Technical parameter of android tablet rfid reader P6300
| Size | 200*136*21mm(L×W×H) |
| Weight(g) : | 650g |
| CPU | MT6589WK/MT6582 (Quad core 1.2Ghz Processor) Cortex A7 |
| Phone and 3 g spectrum | WCDMA 850/2100 (850/1900 optional) & GSM850/900/1800/1900 |
| Phone SIM card interface: | support,common1.8/3.3V SIM card |
| OS | Android 4.2.1 |
| Navigation and positioning built-in | GPS Satellite-navigation chips, support A-GPS,EPO |
| RFID | Support functions of uhf RFID,read range up to 3m |
| OTG | support |
| FM radio | support |
| Bluetooth | BT4.0 (A2DP+EDR) |
| Motion sensor | support |
| Gravity sensor | support |
| Geomagnetic sensor | support |
| Gyro Sensor | support |
| Trumpet | 20x30 Membrane type speaker unit |
| Network connections | 3G |
| Communication | WCDMA 3.75G (HSDPA+ 42.2Mbps, HSUPA+ |
| 11.5Mbps), support WIFI route sharing | |
| EDGE : | support |
| GPRS | support |
| WAP | support |
| WI-FI | support |
| Main display | 7.0”hd IPS/AFFS display 1024 * 600 600 CD/m2 visual highlight the sun. |
| Touch screen | G + G 5 full toughened high strength capacitance touch screen |
| Main camera | 5 million pixels with af and electronic flash |
| Deputy camera | 2 million megapixel camera |
| Built-in storage | 1 GB of RAM + 8 GB ROM |
| External memory expansion | Micro SD card (T - FLASH card) card reader, maximum support 64 GB extension |
| Battery | 9650 mah |
| Charging interface | USB Micro 5 pin |
| Data interface | USB Micro 5 pin |
| Headphone jack | 3.5 mm |
| Language | English, Spanish, Portuguese (Brazil), Portuguese (podcast), Italian, German, Dutch, French, Polish, Romanian, Turkish, the Russian, Arabic, Indonesian, Malay,Thai, Vietnamese, Hindi, Hebrew, Simplified Chinese |
| Color | yellow sun, army green, metallic grey |
| Shock resistant | 1-19 Hz / 1-1.0 mm 19-200 Hz / 1.0 g acceleration amplitude |
| Shock resistance | Meet MIL - STD - 810 - g/Method516.6 / Procedure military protection grade IV |
| Waterproof grade | 6 class |
| Dust proof grade | 6 class |
| Reliability | MTBF > 50000 h;MTTR < 0.5 h |
| Working temperature | - 20 ° C to + 65 ° C |
| Storage temperature | - 40 ° C to +80 ° C |
| Relative humidity | 5% to 95% |
| Working height | maximum working height: 4500 meters (15000 feet) |
| MOQ | 1 ea |
| Package | Foam & Carton |
| Devlivery terms | FOB,CFR,CIF,EXW,DDP,DDU,Express Delivery |
| Delivery time | 7 working days for common quanlity |
| Payment type | L/C,T/T,Western Union,Paypal |
| Supply ability | 50K pcs/month |
| Port | Shenzhen |
Warrenty period: 12 months upon the product's received date.
