Wearable active rfid reader 2.45 GHz tag with rfid tag iso18000-6c

Specifications

Frequency:2.4GHz~2.5GHz ISM
RF power:-30.0dBm~1.0dBm
Read distance:0~200m(up to antenna)
Modulation:GFSK
RSSI:YES

Wearable active rfid reader 2.45 GHz tag with rfid tag iso18000-6c





Key Features of active rfid tag T3433

Long reading distance

Ultra  low  RF  power  consumption,  long life time

Excellent anti-collision mechanism makes multiple tags real time monitoring adaptable

High protection grade

Large user memory, which can be used for many flexible applications

Intelligent  temperature  monitoring function

Support RSSI function



Technology specifications of active rfid tag T3433



Operating frequency: 2.4GHz~2.5GHz ISM

RF Power:-30.0dBm~1.0dBm

Reading distance:

0~50m (with standard matched 2dBi Omni-directional antenna)

0~200m(depends on antenna)

Operating current: <22uA, 3V (500ms transmitting interval)

Modulation: GFSK

Communication rate: 250Kbps

User memory: 4K byte

Working temperature: -20°C~+60°C 90%RH

Storage temperature: -40°C~+80°C

Read and write: 3 years(500ms transmitting interval)

Read only: 5 years (500ms transmitting interval)

RSSI function: YES

Electric hint: alarm when low battery

Material: ABS(ROHS), flame retardant

Colour: White, blue, yellow, green

Environmental sealing: IP65

Drop test: 1.2m

Weight: 30g

Dimension: 87mm*56mm*5mm





Typical Applications of active rfid tag T3433



Cold chain logistic

Temperature monitoring and collecting

School students’ management

Vehicle and asset tracking

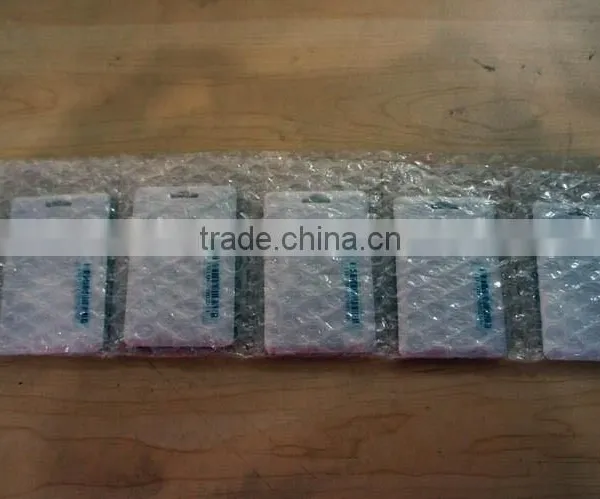

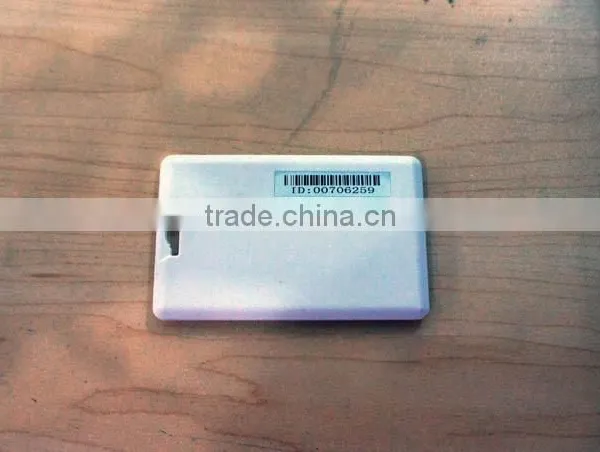

Pictures of active rfid tag T3433
