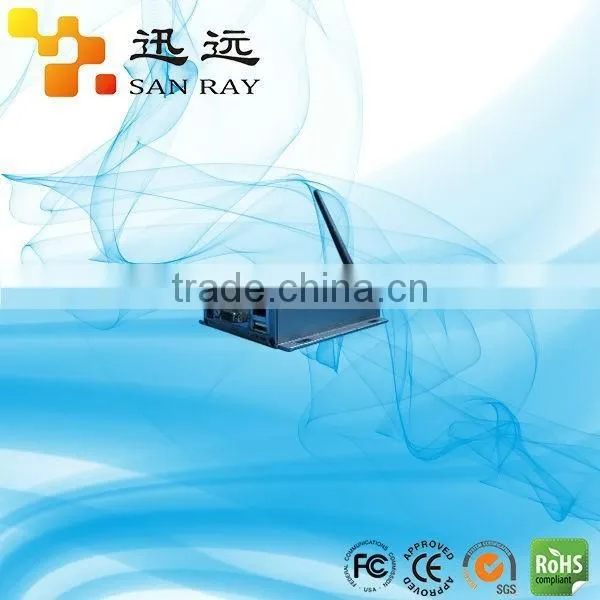

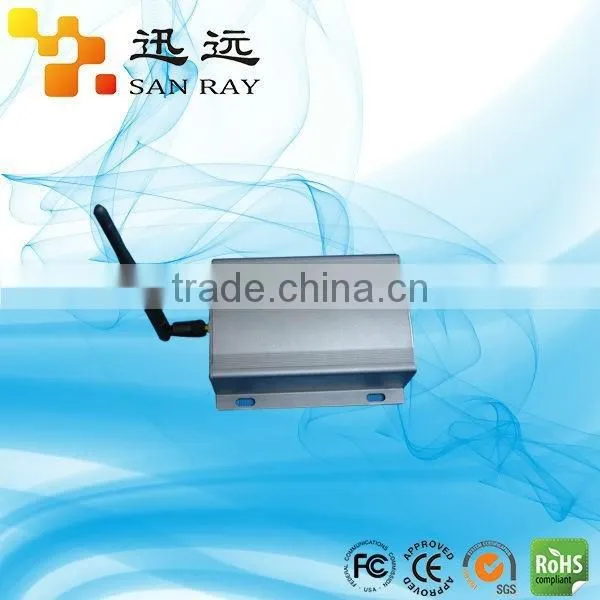

Long range animal uhf rfid reader, 2.5ghz omni-directional uhf rfid reader(Sanray:F3411)
Typical Applications of 2.45GHz Active RFID reader F3411
Intelligent transportation management
Asset identification,tracking and checking management
Orientation, tracking and checking people in coal mine etc
Position monitor management for baby, prisoner, older psychotic etc.
Product parameters
| Operating frequency | 2.4GHz~2.5GHz ISM |
| Antenna | Connect 1 antenna through SMA |
| RF power range | -18.0dBm~0.0dBm( adjusted by 32 grade ) |
| Receiving sensitivity | -90.0dBm |
| Operating mode | FHSS or fixed frequency(set by software) |
| Modulation | GFSK |
| Reading range | 0~50m (Standard matched antenna SR-24A02R, omni-directional) |
| 0~100m ( Antenna SR-24A12T, directional) | |
| 0~200m( Antenna SR-24A18T , directional) | |
| RSSI active reader can be adjusted less than 10m | |
| Anti-collision | Up to 500 tags read simultaneously |
| Buffer capacity | 2000 tags data |
| Communication speed | 250kbps, 1Mbps, 2Mbps(adjustable) |
| Communication interface | RS-232, RS-485, USB, Wiegand26/34/42/50, Ethernet |
| Input and output | 1 triggering input, 2 relays output |
| Optional function | 2 relays, CAN, RSSI, ID match function, Offline function and Time function |
| Power supply | AC input: 100~240V, 50/60Hz 1.2A |
| DC output: 5V/1A | |
| Product size | 134mm*99mm*34mm |
| Packing size | 284mm*275mm*85mm |
| Gross weight | 0.79kg |
| Net weight | 0.25kg |
| Working temperature | -20℃~+70℃ |
| Storage temperature | -40℃~+85℃ |
| Accessories | Standard matched antenna, Power adapter, Power cable, |
| RS-232 cable, USB cable, Ethernet cable | |
| Working status indication | Buzzer, LED indicator |
| MOQ | 1 ea |
| Package | Foam & Carton |
| Devlivery terms | FOB,CFR,CIF,EXW,DDP,DDU,Express Delivery |
| Delivery time | 7 working days for common quanlity |
| Payment type | L/C,T/T,Western Union,Paypal |
| Supply ability | 50K pcs/month |
| Port | Shenzhen |
Warrenty period: 12 months upon the product's received date.
