Home > Security & Protection > Access Control System > Access Control Card Reader > High-performance 2.45GHz Active RFID Reader/Writer

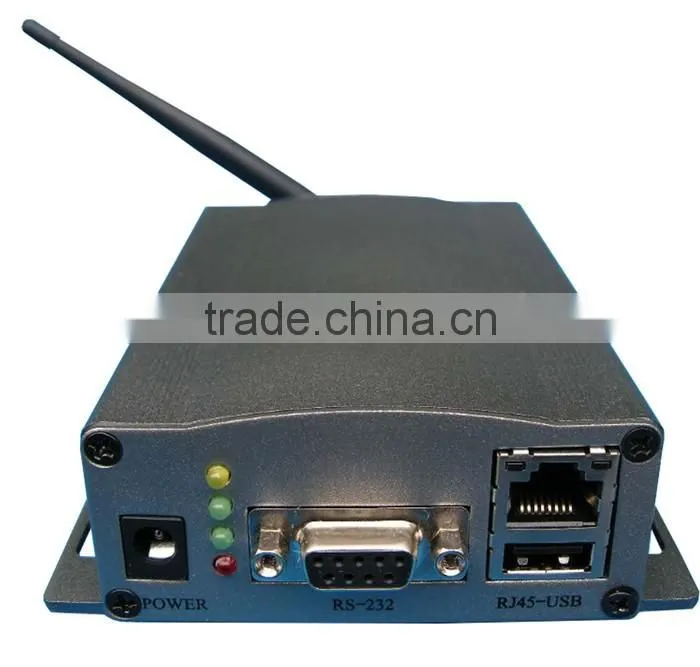

High-performance 2.45GHz Active RFID Reader/Writer
US$ 275 - 380
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Sanray
Model Number:
F3411
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen Yantian/HongKong
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
2.45 GHz Omni Directional Active RFID ReaderUS$ 275 - 380MOQ: 1 Piece -
Smart 2.4GHz Active RFID Card Reader/WriterUS$ 275 - 380MOQ: 1 Piece
-
0-50m Omni Directional Active RFID Reader 2.45GHzUS$ 275 - 380MOQ: 1 Piece
-
Strong Receiving Sensitivity Active RFID Reader 2.45GHzUS$ 275 - 380MOQ: 1 Piece
-
2.45GHz Active RFID Reader ManufacturerUS$ 275 - 380MOQ: 1 Piece
Place of Origin
Guangdong, China
Brand Name
Sanray
Model Number
F3411
High-performance 2.45GHz Active RFID Reader/Writer
Product Description
Build-in 15dbi antenna and integrates with interfaces of RS-232,RS-485,USB,Wiegand26/34/42/50, RJ45, reading range up to 50m.
| Technology specifications | |
| Operating frequency | 2.4GHz~2.5GHz ISM |
| Antenna | Connect 1 antenna through SMA |
| RF power range | -18.0dBm~0.0dBm( adjusted by 32 grade ) |
| Receiving sensitivity | -90.0dBm |
| Operating mode | FHSS or fixed frequency(set by software) |
| Modulation | GFSK |
| Reading range | 0~50m (Standard matched antenna SR-24A02R, omni-directional) |
| 0~100m ( Antenna SR-24A12T, directional) | |
| 0~200m( Antenna SR-24A18T , directional) | |
| RSSI active reader can be adjusted less than 10m | |
| Anti-collision | Up to 500 tags read simultaneously |
| Buffer capacity | 2000 tags data |
| Communication speed | 250kbps, 1Mbps, 2Mbps(adjustable) |
| Communication interface | RS-232, RS-485, USB, Wiegand26/34/42/50, Ethernet |
| Input and output | 1 triggering input, 2 relays output |
| Optional function | 2 relays, CAN, RSSI, ID match function, Offline function and Time function |
| Power supply | AC input: 100~240V, 50/60Hz 1.2A |
| DC output: 5V/1A | |
| Product size | 134mm*99mm*34mm |
| Packing size | 284mm*275mm*85mm |
| Gross weight | 0.79kg |
| Net weight | 0.25kg |
| Working temperature | -20℃~+70℃ |
| Storage temperature | -40℃~+85℃ |
| Accessories | Standard matched antenna, Power adapter, Power cable, RS-232 cable, USB cable, Ethernet cable |
| Working status indication | Buzzer, LED indicator |
| Application scenarios | |
| 1. Intelligent transportation management | |
| 2. Asset identification,tracking and checking management | |
| 3. Orientation, tracking and checking people in coal mine etc | |
| 4. Position monitor management for baby, prisoner, older psychotic etc. | |

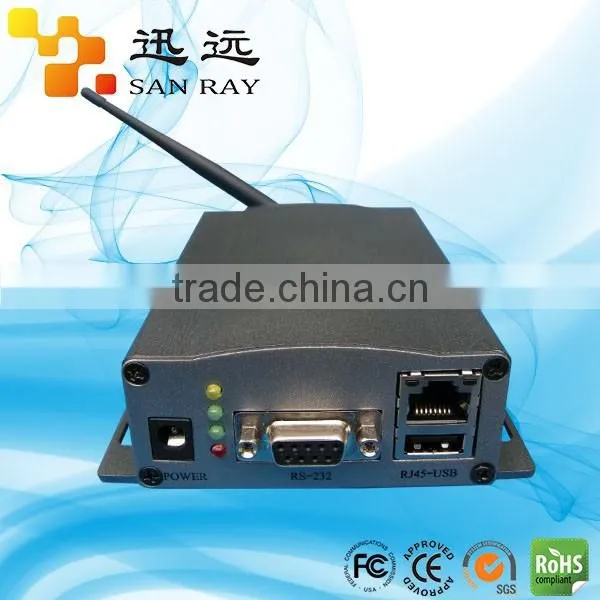

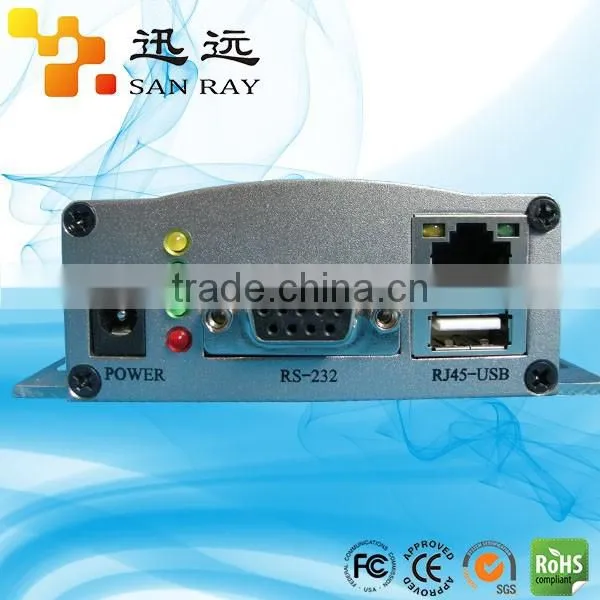

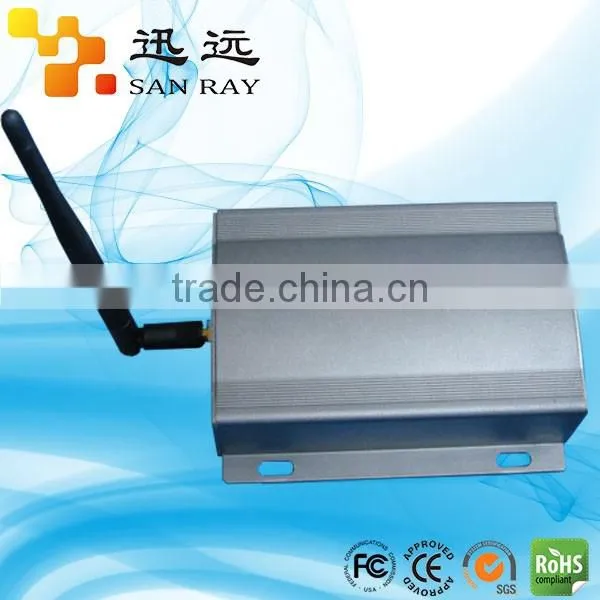

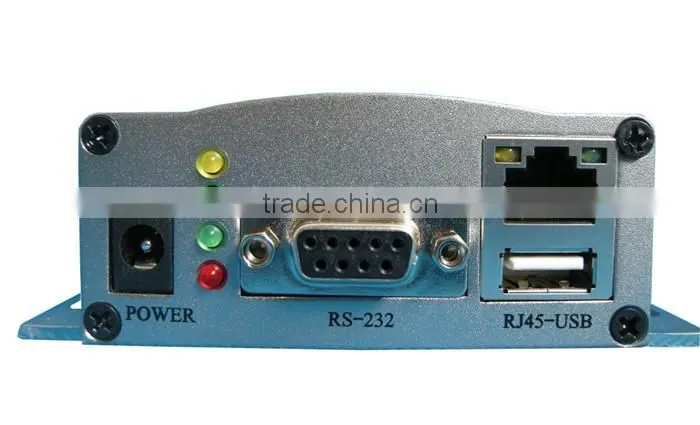

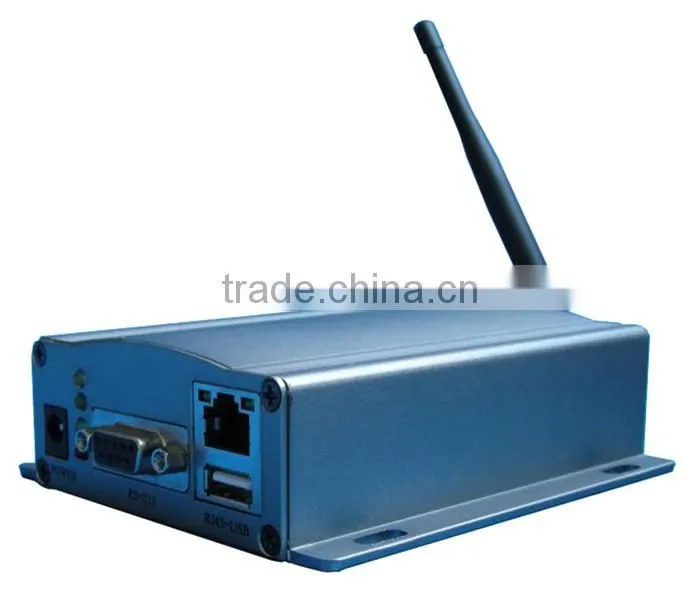

Detail Pictures:
Company Information
| Business type: | Manufacturer,Trading company |
| Main Products: | RFID Reader/Tag/Module,UHF Reader,Active Reader |
| Location: | Guangdong, China (MainlaManufacturer, Trading Companynd) |
| Year Established: | 2011 |
| Year start exporting: | 2013 |
| Number Of Employees: | 101 - 200 People |
| Total Revenue: | US$2.5 Million - US$5 Million |
| Main Markets: | Eastern Europe, Mid East, North America, Western Europe, South America |
Related Products

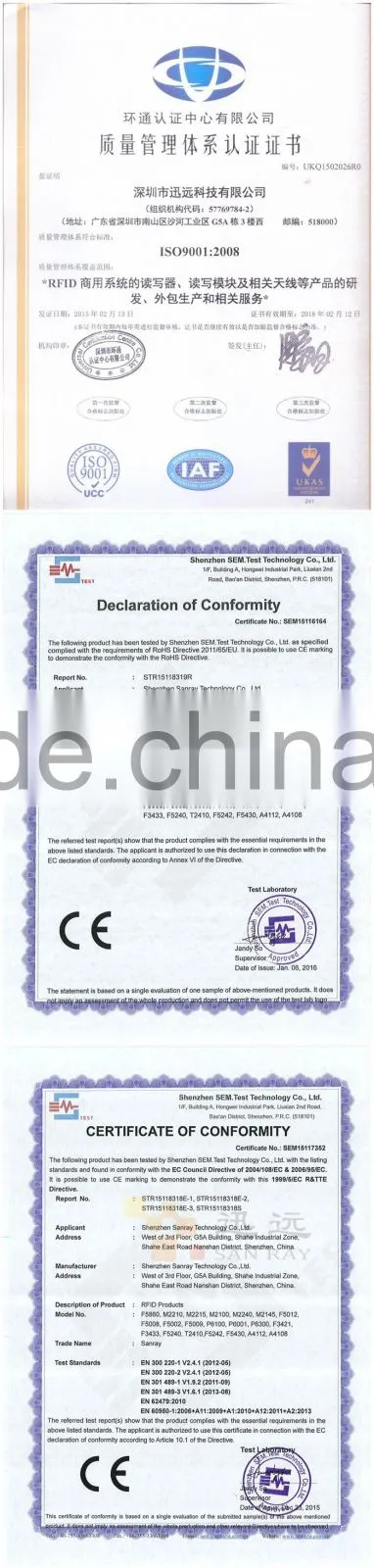

Certifications
