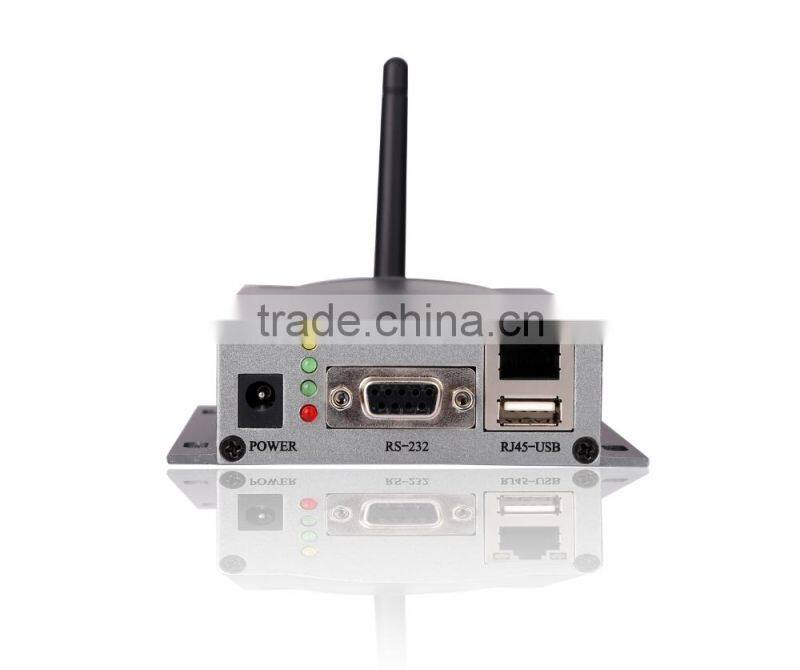

2.45 GHz Directional Active RFID Reader With Free Software

2.45 GHz Directional Active RFID Reader With Free Software photo-1

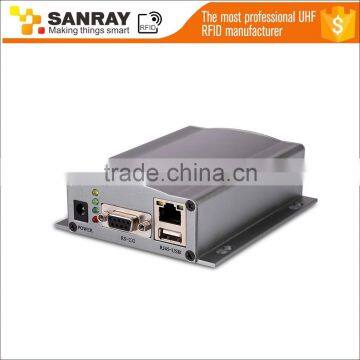

2.45 GHz Directional Active RFID Reader With Free Software photo-2

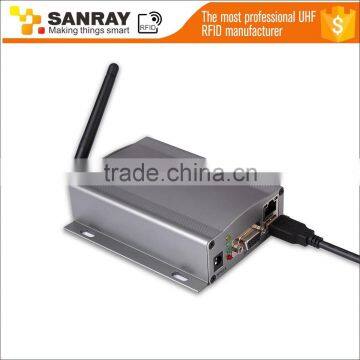

2.45 GHz Directional Active RFID Reader With Free Software photo-3

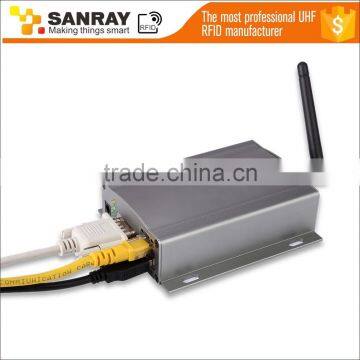

2.45 GHz Directional Active RFID Reader With Free Software photo-4
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Sanray
Model Number:
F3411
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen/Hongkong
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Guangdong, China
Brand Name Sanray
Model Number F3411
M3411
Product Description

Product Details

2.45 GHz Directional Active RFID Reader With Free Software

Intelligent transportation management;

Asset identification, tracking and checking management;


Product Details

2.45 GHz Directional Active RFID Reader With Free Software

Orientation, tracking and checking people in coal mine etc.;


Position monitor management for baby, prisoner, older psychotic etc..

Specification
Product Electrical Parameters
2.45 GHz Directional Active RFID Reader With Free Software
Operating frequency
2.4GHz~2.5GHz ISM
Antenna
Connect 1 antenna through SMA
RF power range
-30dBm~0.0dBm( adjusted by 32 grade )
Receiving sensitivity
-90.0dBm
Reading range
0~50m (Standard matched antenna SR-24A02R, omni-directional)
Anti-collision
Up to 500 tags read simultaneously
Communication interface
RS-232, RS-485, USB, Wiegand26/34/42/50, Ethernet
Input and output
1 triggering input, 2 relays output
Optional function
2 relays, CAN, RSSI, ID match function, Offline function and Time function
Power supply
AC input: 100~240V,50/60Hz 1.2A DC output: 5V/1A
Product size
134mm*99mm*34mm
Packing size
284mm*275mm*85mm
Gross weight
0.79kg
Net weight
0.25kg
Working temperature
-20℃~+70℃
Accessories
Standard matched antenna, Power adapter, Power cable, RS-232 cable, USB cable, Ethernet cable
Applications

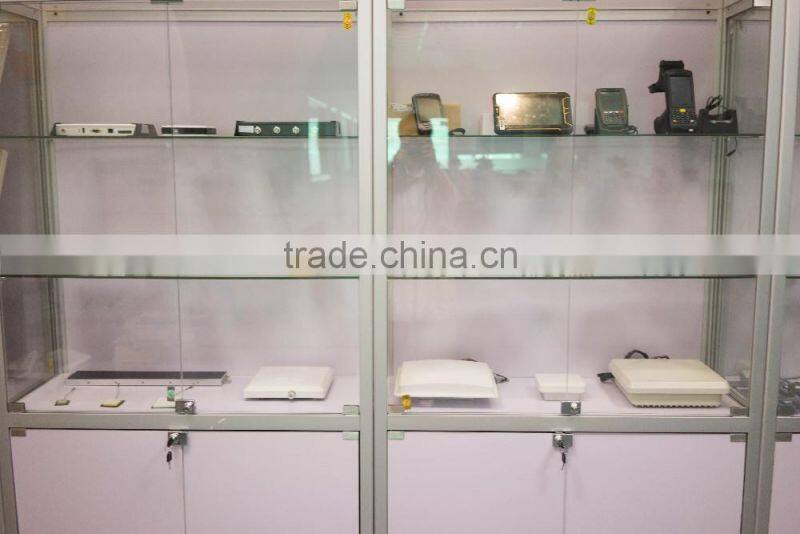

Company Information

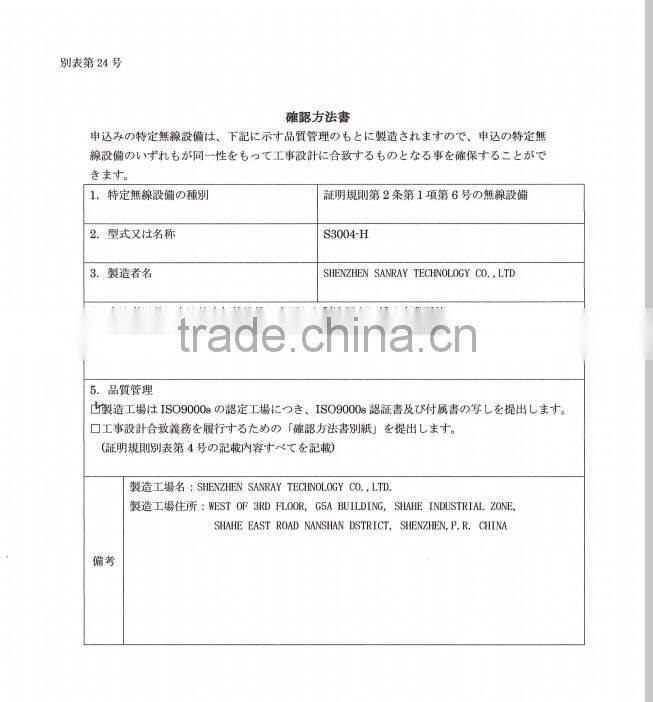

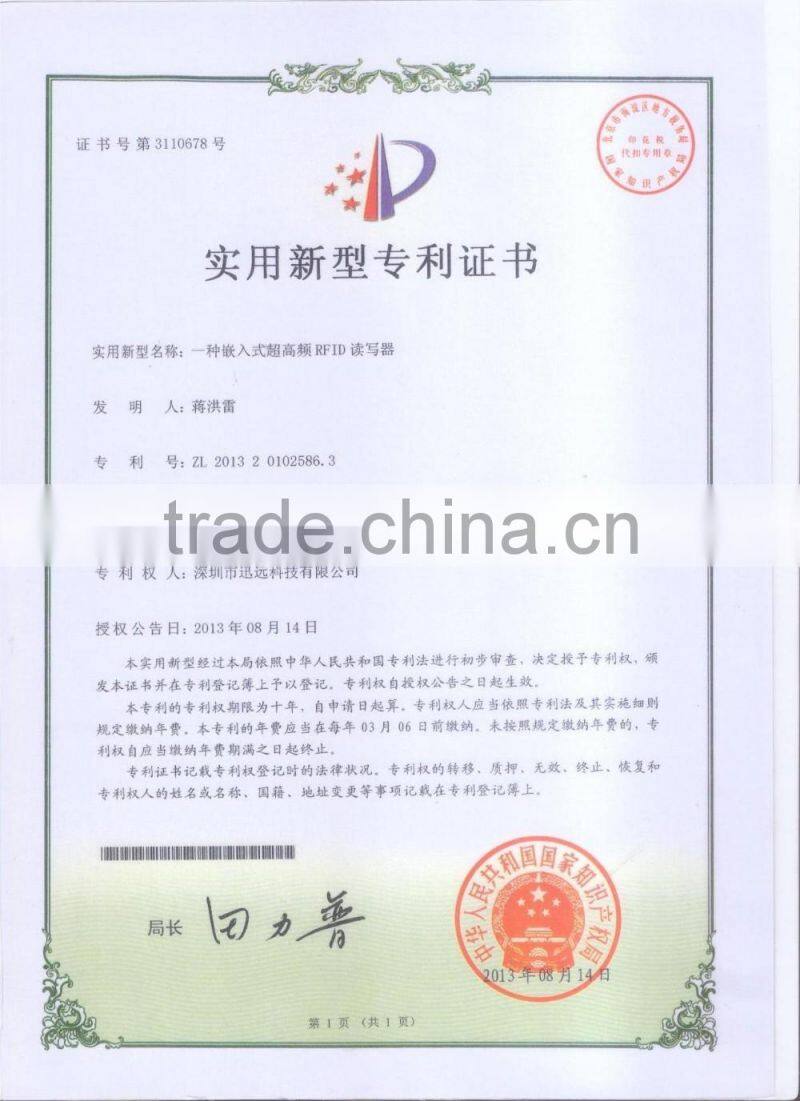

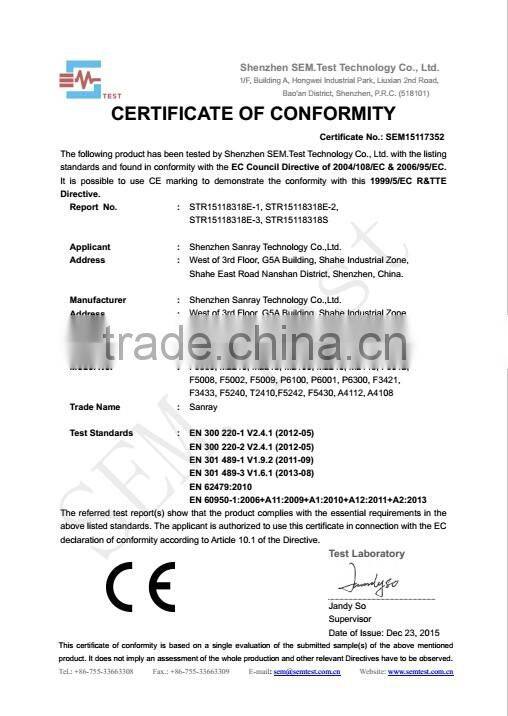

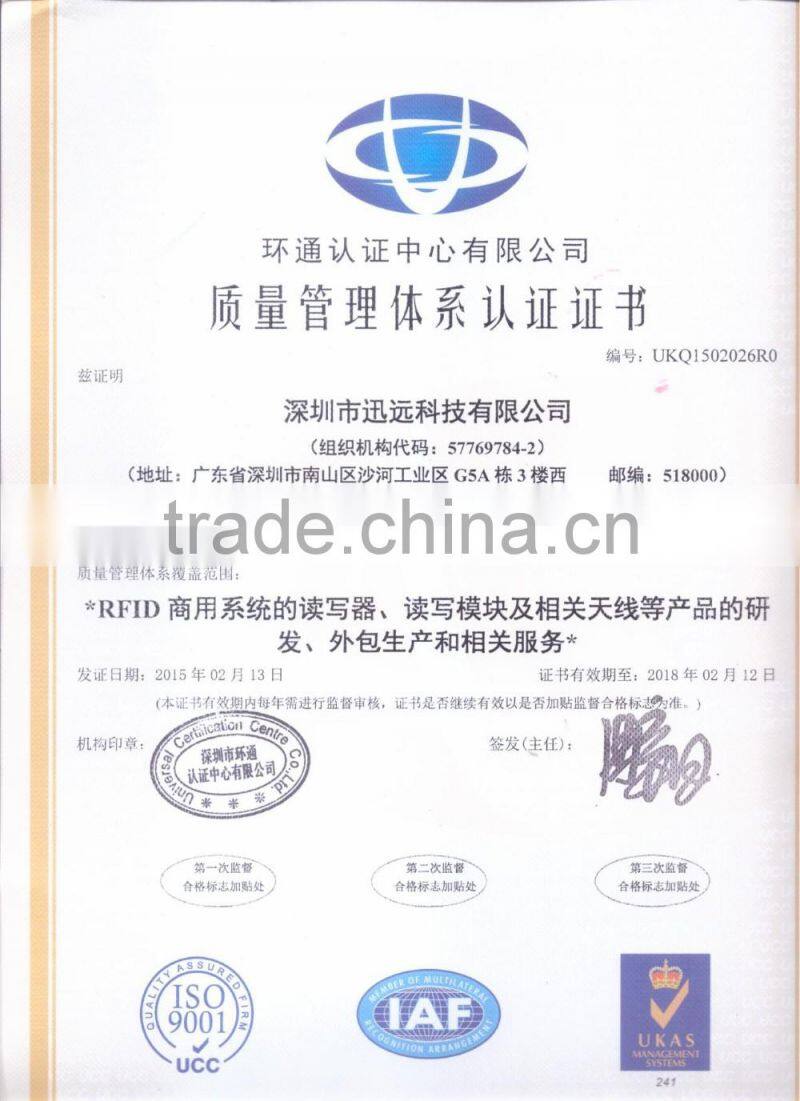

Certifications
FAQ

Q1. Can I have a sample order for reader ?

A: NO , you need buy sample

Q2. What about the lead time?

A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than

Q3. Do you have any MOQ limit for reader order?

A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for reader?

A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.

Q6. Is it OK to print my logo on reader product?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?

A: Yes, we offer 1 years warranty to our products.

Q8: How to deal with the faulty?

A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new reader with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution i
ncluding re-call according to real situation.
