Stainless steel Honey Processing Machines/honey stick filling machine
Introduction honey fliter machine
|
(1). honey production line machine using in high vacuum state reduce the boiling point of water principle, make honey quickly evaporate out the water, improve the concentration of honey. Equipment also melting with crystallization, filtration sterilization, concentration, and other functions, honey production line make honey meet the national standards, and can long-term preservation (2). This kind of vacuum thickener machine is mainly designed for honey thickener orsome other heat sensitivity materials. This is a kind of small batch type thickeningequipment. The machine made of stainless steel of 304,the quality of materials after concentrating will bevery good. Good designed of the structure make the machine small, low noise, easy tooperate.
|
Feature of honey fliter machine

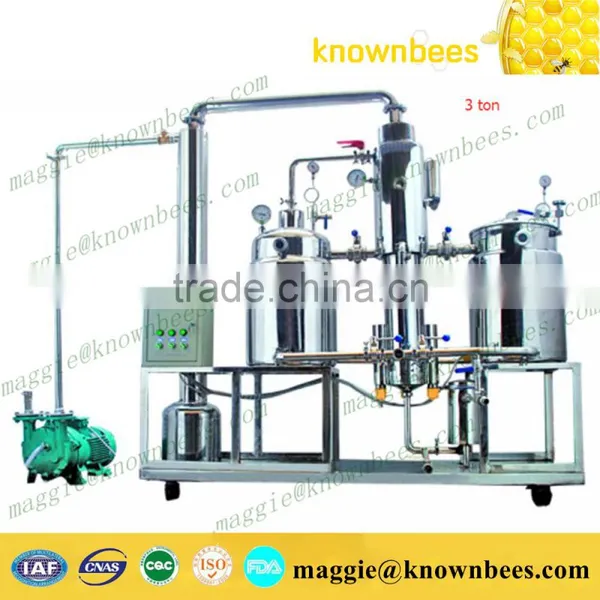

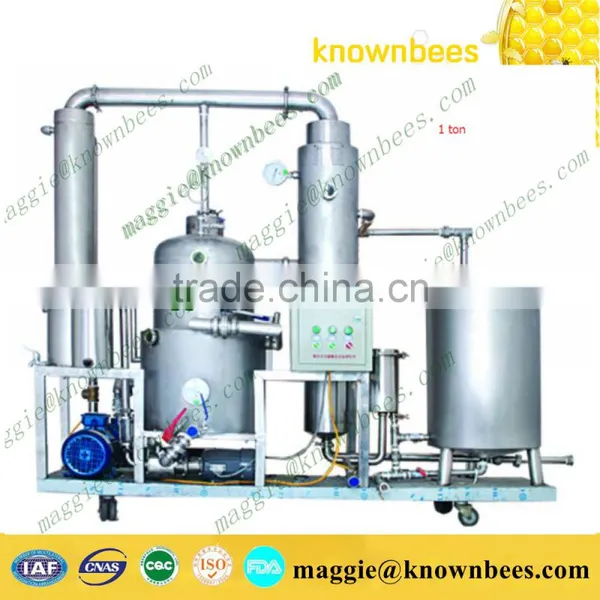

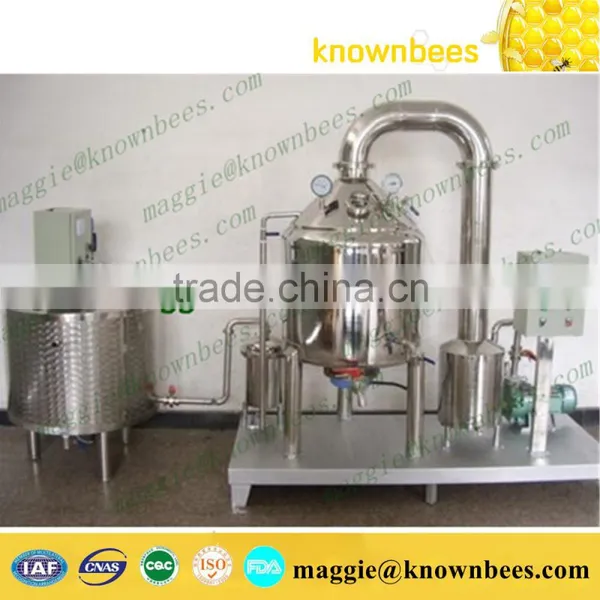

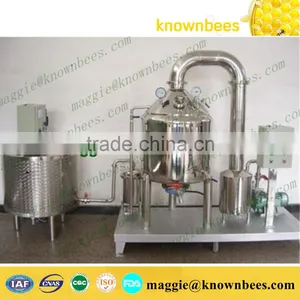

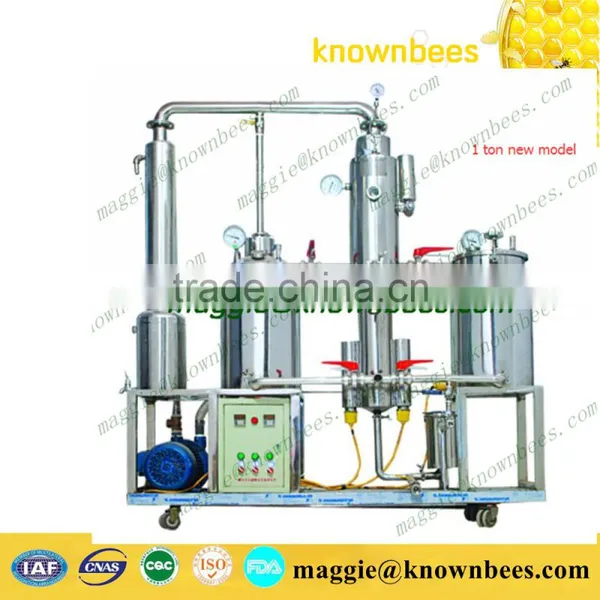

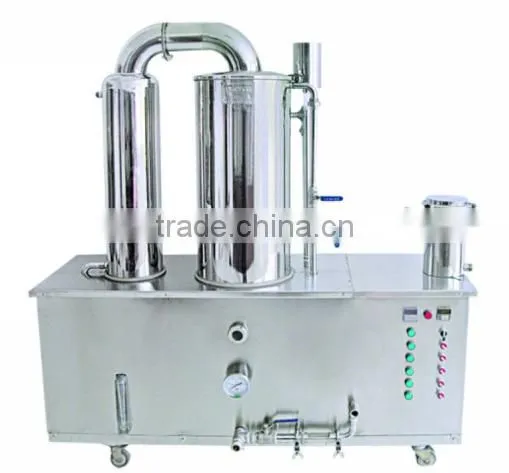

This vacuum thickener is consisting of pre heating tank, filtering, thickening tank,cooling system, storage tank, and vacuum pump,etc.The machine use electrical heating way, in order to provide the capacity of themachine, in order to get high vacuum, the machine special designed one set of coolingsystem and storage tank together with vacuum pump. The clients need to provide10kw, 220v electricity and water supply for the machine line. |
Technical of different honey fliter machine
<
| Model | KN-HF-50 | KN-HF-100 | KN-HF-200 | KN-HF-300 | KN-HF-400 |
| Output capacity(ton) | 0.5 | 1 | 2 | 3 | 4 |
| Production capacity is according to per hour increase four Baume degree | |||||
| Voltage(V) | 220 | 380 | 380 | 380 | 380 |
| Power(KW) | 9.5 | 16.35 | 26.75 | 32.95 | 4 |
| Actual power consumption(Kw) | 22 | 28 | 22 | 28 | 4 |
| Concentration temperature (℃) | ≤50 | ≤50 | ≤50 | ≤50 | ≤50 |
| Vacuum degree (Mpa) | ≥0.092 | ≥0.092 | ≥0.092 | ≥0.092 | ≥0.092 |
| Preheat Tank Capacity(L) | 50 | 100 | 200 | 300 | 400 |
| Concentrated Tank Capacity(L) | 50 | 100 | 200 | 300 | 400 |
| Heating | Electric heating | Electric heating | Electric heating | Electric heating | Electric heating or steam |
| Dimensions(M) | 1.8×0.6×1.7 | 2×0.7×1.9 | 2×0.8×2.1 | 2×0.86×2.3 | 2×0.86×2.4 |
| Material | ss304 | ss304 | ss304 | ss304 | ss304 |
<

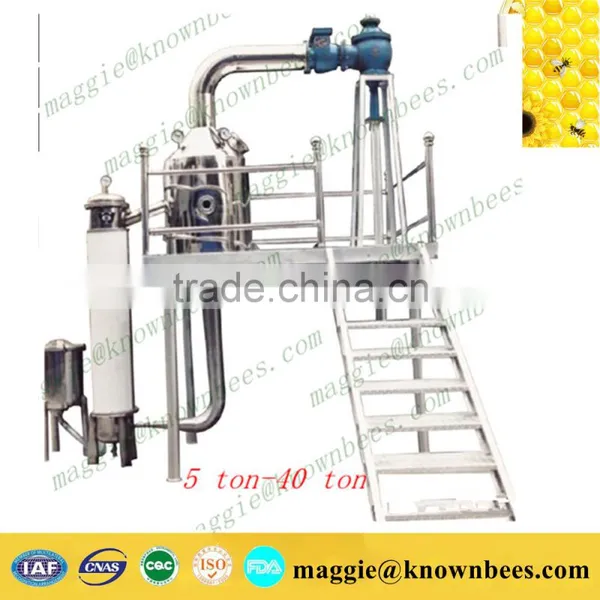

| Model | KN-HF-50 | KN-HF-1000 | KN-HF-2000 | KN-HF-4000 |
| Output capacity(ton/7 hours) | 5 | 10 | 20 | 40 |
| Production capacity is according to per hour increase four Baume degree | ||||
| Voltage(V) | 380 | 380 | 380 | 380 |
| Power(KW) | 5.5 | 7.5 | 7.5 | 11 |
| Concentration temperature (℃) | ≤50 | ≤50 | ≤50 | ≤50 |
| Vacuum degree (Mpa) | ≥0.092 | ≥0.092 | ≥0.092 | ≥0.092 |
| heating area | 4.5 | 6.6 | 11.3 | 14.9 |
| steam pressure(Mpa) | 0.1 | 0.2 | 0.3 | 0.4 |
| Boller(Ton) | 1 | 1 | 1 | 2 |
| Concentrated Height(M) | 3.2 | 3.4 | 3.6 | 3.85 |
| Hydraulic ejector height(M) | 4.1 | 4.3 | 4.5 | 4.7 |

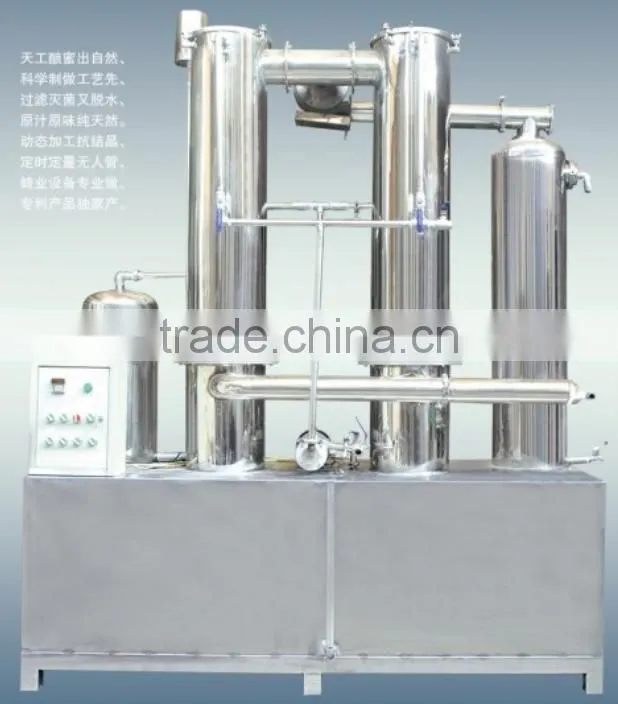

| Work form | Rising film, continuous access to material way | |||
| Heating | steam | |||
| Using ares(m2) | 15 | 15 | 20 | 20 |
Other related products
Company information
|
Zhengzhou Known Company Limited belong to HENAN ARTEX group company Limited which found 1986 year, which belong to government-owned corporation; Known is an export-oriented company which specializes in producing, processing and selling bee equipment, such as honey extractors, fogging machines and bee nest machines.We have many kinds of honey extractors, fogging machines, bee nest machines and comb foundation processing production lines. Our factory is located in China's biggest bee product collection and distribution base - zhengzhou city, Henan Province. Since the foundation, we have always insisted on the unique management idea of "lowest price, best quality, the advanced technology". Our aim is "100% customer satisfaction". We sincerely welcome domestic and overseas merchants to visit us. We are willing to work with you to create a bright future. |
Our service for beefeeder:
1. Professional pre-sales team
Being patient to learn clients’need
Suggesting item in according to clients’need
Being Patient to answer clients’doubt
2. Professional after-sale team
Keeping in touch with clients in order to let clients know process of the orders
Technical support throughout whole transaction
Designing suitable marketing plan
Timing visit after transaction completed
Being positive to answer occurring question during transaction
Client: What’s your payment terms?
Maggie: We accept T/T, L/C, Western Union.
Client: What’s your shipping way?
Maggie : By sea, by air, or via DHL, UPS, TNT, FEDEX, EMS etc.
(We'll choose the most suitable way and lowest delivery cost for you.)
Client: How long about your delivery time?
Maggie : All delivery will be forwarded as purchasing order.
Delivery time for order within available stock is in 3-5 days.
Delivery time for order without available stock is 7-15 days.
Package&shipping for beekeeping equipment
shipping: Express shipping and sea shipping are both OK,we can help to arrange the goods with the most suitable transportation.
sample checking: We supply one or two pcs free sample for u to check the quality, but u should pay the freight cost.
Any quetions plz do not hesitate to contact us!
WELOCME YOUR ORDER!
