Hongyuan Bulk Production Bucket Elevator Price
- 300 Set / Sets per Month
- Shanghai/Tianjin/Qingdao
- T/T Credit Card
- Grain Bucket chain conveyor/ rice mill bucket elevator
- Food grade z type bucket elevator for sale
- Grain Bucket chain conveyor design, rice mill bucket elevator
- Rice mobile hopper bucket elevator
- TD High Output Carbon Steel Bucket Elevator
- Large Capacity Grain Bucket Elevator for agriculture conveying machine
Product Details
Condition: | New | Type: | Bucket Conveyor | Material: | Other, Carbon steel, Carbon steel |
Material Feature: | Heat Resistant | Structure: | Inclining Conveyor | Load Capacity: | 240 m3/h |
Place of Origin: | Henan, China | Brand Name: | Hongyuan | Model Number: | TD |
Voltage: | 380V | Power(W): | 5.5kw | Dimension(L*W*H): | 500*200*170000mm |
Certification: | CE, ISO | After-sales Service Provided: | Engineers available to service machinery overseas |
Packaging Details
Standard wooden case or according to your requirements.
Product Description

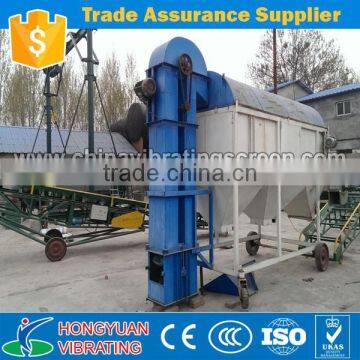

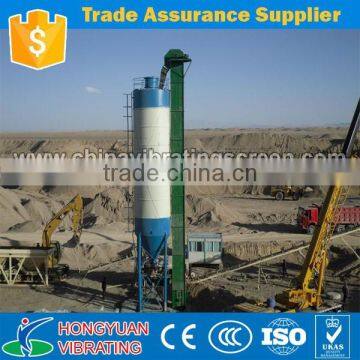

Hongyuan Bulk Production Bucket Elevator Price
TD Series type Bucket Elevators are used to elevate(lifting) varieties of powder,granule, small and less grinding bulk materials, for example grain, coal, cement,smash ore. The max lifting height is 40 meters. There are four kinds of hopper on the elevators: Q type (shallow hopper)/ H type (arc type)/ ZH type (Medium deep size hopper) / SH type (Deep size hopper), which can lifting varieties of materials respectively. You can choose the suitable hopper as per the materials properties.
Model | TD-100 | TD160 | TD250 | TD315 | TD400 | TD500 | TD630 | ||||||||||||||||||||||
Buecket type | Q | H | Q | H | Zd | Sd | Q | G | Zd | Sd | Q | H | Zd | Sd | Q | H | Zd | Sd | Q | H | Zd | Sd | Q | H | Zd | Sd | |||
Capacity | 4 | 7.6 | 9 | 16 | 16 | 27 | 20 | 36 | 38 | 59 | 28 | 50 | 42 | 67 | 40 | 76 | 68 | 110 | 63 | 116 | 96 | 154 | ~ | 142 | 148 | 238 | |||
(m3/h) | |||||||||||||||||||||||||||||
Bucket volume(L) | 0.15 | 0.3 | 0.49 | 0.9 | 1.2 | 1.9 | 1.12 | 2.24 | 3 | 4.6 | 1.95 | 3.55 | 3.75 | 5.8 | 3.1 | 5.6 | 5.9 | 9.4 | 4.84 | 9 | 9.3 | 14.9 | ~ | 14 | 14.6 | 23.5 | |||
Belt speed(m/s) | 1.4 | 1.4 | 1.6 | 1.6 | 1.8 | 1.8 | 2 | ||||||||||||||||||||||
Rotated speed(r/min) | 67 | 67 | 61 | 61 | 55 | 55 | 48 | ||||||||||||||||||||||
Bucket size | t | 200 | 350/280 | 450/360 | 500/400 | 560/480 | 625/500 | 710 | |||||||||||||||||||||
b | 100 | 160 | 250 | 315 | 400 | 500 | 630 |
TD Series Bucket Elevators is made up three parts:
3rd part: Bottom part with tension drum.
There two kind of The transmission device of TD Series type product, YZ type reducer, ZQ(YY) type reducer. It is equipped directly on the head part of main axle which leaves out the transmission platform and coupler. The Heterotypic roller non-return device inside the equipment is reliable.
Bucket Elevators transfer bulk materials vertically from one location to another. Inlet can be flooded or control fed Volumetric transfer device
The other main products in our company:
1.What is our product range?
Our company is specialized in manufacturing screening equipment, such as Round Vibrating Sieve, Linear Screening Machine, Laboratory Test Sieve, Ultrasonic Sieving Machine, 450 Type Vibrating Screen Filter, Powder Vibrating Sieve, Granule Sieve Machine, Liquid Vibration Filter, High-Frequency Vibration Filter, vibrating feeder, conveyor system, bucket elevator, grain machine and packaging machine and so on.
2.Which industry does the crane applied to?
Chemical industry, Food industry, Pharmaceutical industry, Metallurgical Industry and so on.
3.What method of payment do you support?
We usually support T/T, L/C or Western Union, and various methods of payment is available.
4.What are the advantages of our products?
1) Reasonable structure.
2) Favorable performance.
3) All goods examined before delivery by 4QC staff.
4) Electricity saving, large capacity.
5) All voltage can be customized, such as 220V, 380V, 415V and so on.
Company information
Xinxiang Hongyuan Vibratory Equipment Co., Ltd. is one of the famous enterprises that manufacture and sell equipments for screening, conveying and elevating. The company is specialized in the manufacturer, sales and research of vibrating screen and non-vibrating screen equipment, conveying equipment (screw conveyer, belt conveyer, drag conveyor, vibrating conveyor, magnetic conveyor, highpressure conveyor and so on), as well as elevating equipment (TD series elevator, NE series elevator, vertical elevator and highpressure elevator).
Feel free to contact Cathy at any time, the reply will given in 24 hours. You can write down the questions or doubts under the block.
Company Profile
Xinxiang Hongyuan Vibratory Equipment Co., Ltd. is one of the famous enterprises that manufacture and sell equipments for screening, conveying and elevating. The company is located in the Hi-tech Development Zone of Henan Xinxiang, which is the largest manufacturing base of vibrating screen in China. The city of Xinxiang also has the advantage of convenient transportation, as the Yellow River is in the north of it, the Beijing-Hong Kong-Macau Expressway is in the east of it, and the Beijing-Guangdong Railway is in the west of it.
The company is specialized in the manufacturer, sales and research of vibrating screen and non-vibrating screen equipment, conveying equipment (screw conveyer, belt conveyer, drag conveyor, vibrating conveyor, magnetic conveyor, high-pressure conveyor and so on), as well as elevating equipment (TD series elevator, NE series elevator, vertical elevator and high-pressure elevator). Presently there are over 200 employees, among them, 65 have professional titles of middle and senior. In the year of 2000, the CAD work station was established by the company, which is an earlier one in the same field. Moreover, our products have scientific design, high performance and reasonable price. Depending on the first-rate products, as well as the advanced technology and equipment, highly competent personnel, strict management, and complete inspecting measures, the company has fostered a good image.
Aiming at high quality and satisfying service, and based on the principles of honesty, pragmatism, innovation and diligent, the company does welcome the old and new customers to communicate and corporate with us.
For over ten years, the company has devoted itself into the manufacture and development of vibratory equipment, which includes vibrating screen and non-vibrating screen, conveyor, feeder, vibrating motor, elevator, etc. In addition, the company not only has the excellent equipment, but also has a comprehensive marketing and after-sale service network all over Asia. Before sales, this network can provide technology support; for sales, it can provide help for business negotiation; and after sales, it can provide guide for installation and application. All in all, this network can assure you satisfying service in the whole process.
At last, the company does want to express the heartfelt thanks to the trust and support of the old and new customers. It is hoped that we can make progress and create a bright future together! Hongyuan does welcome you!
