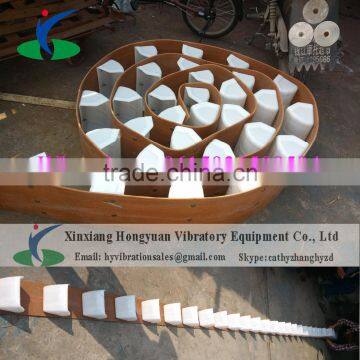

China bucket elevator conveyor with plastic elevator bucket
- 300 Set / Sets per Month
- Shanghai/Tianjin/Qingdao
- T/T Credit Card
- high efficiency TDTG series Bucket Elevator with cheap price
- china chain cement vertical elevator bucket with factory price
- China factory direct supply Bucket Elevator for Chips
- Stable operation Granular Conveying Price Bucket Elevator
- 2015 new style elevator bucket, Bucket Conveyor, Bucket Conveying Equipment
- Grain Bucket chain conveyor elevating, rice mill bucket elevator
Product Details

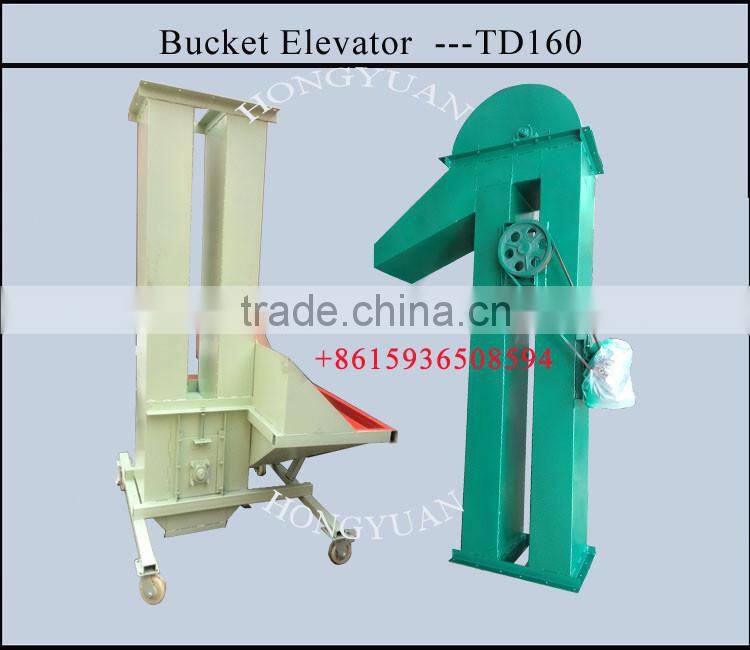

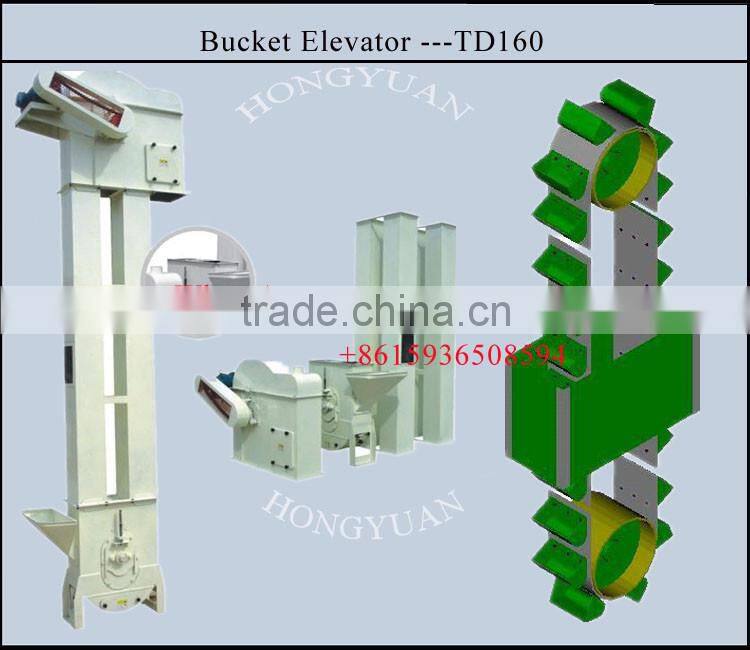

Place of Origin: | Henan, China | Brand Name: | Hongyuan | Model Number: | TD160 |
Packaging Details
Standard wooden case or according to your requirements.
Product Description
Bucket Elevators transfer bulk materials vertically from one location to another. Inlet can be flooded or control fed Volumetric transfer device.
Technical Reference
Model | TD160 | TD250 | TD315 | TD400 | ||||||||||||
Hopper type | Q | h | zD | Sd | Q | h | zD | Sd | Q | h | zD | Sd | Q | h | zD | Sd |
Capacity (m3/h) | 5.4 | 9.6 | 9.6 | 16 | 12 | 22 | 23 | 35 | 17 | 30 | 25 | 40 | 24 | 46 | 41 | 66 |
Hopper width (mm) | 160 | 250 | 315 | 400 | ||||||||||||
Hopper volume (L) | 0.5 | 0.9 | 4.2 | 1.9 | 1.3 | 2.2 | 3.0 | 4.6 | 2 | 3.6 | 3.8 | 5.8 | 3.1 | 5.6 | 5.9 | 9.4 |
Hopper distance (mm) | 280 | 350 | 360 | 450 | 400 | 500 | 480 | 560 | ||||||||
Belt width (mm) | 200 | 300 | 400 | 500 | ||||||||||||
Hopper speed (m/s) | 1.4 | 1.6 | 1.6 | 1.8 | ||||||||||||
Max granule(mm) | 25 | 35 | 45 | 55 | ||||||||||||
Model | TD500 | TD630 | TD160 | TD250 | TD350 | TD450 | ||||||||||
Hopper type | Q | h | zD | Sd | h | zD | Sd | Q | S | Q | S | Q | S | Q | S | |
Capacity (m3/h) | 38 | 70 | 58 | 92 | 85 | 89 | 142 | 4.7 | 8 | 18 | 22 | 25 | 42 | 50 | 72 | |
Hopper width (mm) | 500 | 630 | 160 | 250 | 350 | 450 | ||||||||||
Hopper volume(L) | 4.8 | 9 | 9.3 | 15 | 14 | 14.6 | 23.5 | 0.65 | 1.1 | 2.6 | 3.2 | 7 | 7.8 | 14.5 | 15 | |
Hopper distance (mm) | 500 | 625 | 710 | 300 | 400 | 500 | 640 | |||||||||
Belt width (mm) | 600 | 700 | 200 | 300 | 400 | 500 | ||||||||||
Hopper speed (m/s) | 1.8 | 2 | 1 | 1.25 | 1.25 | 1.25 | ||||||||||
Max granule (mm) | 60 | 70 | 25 | 35 | 45 | 55 |

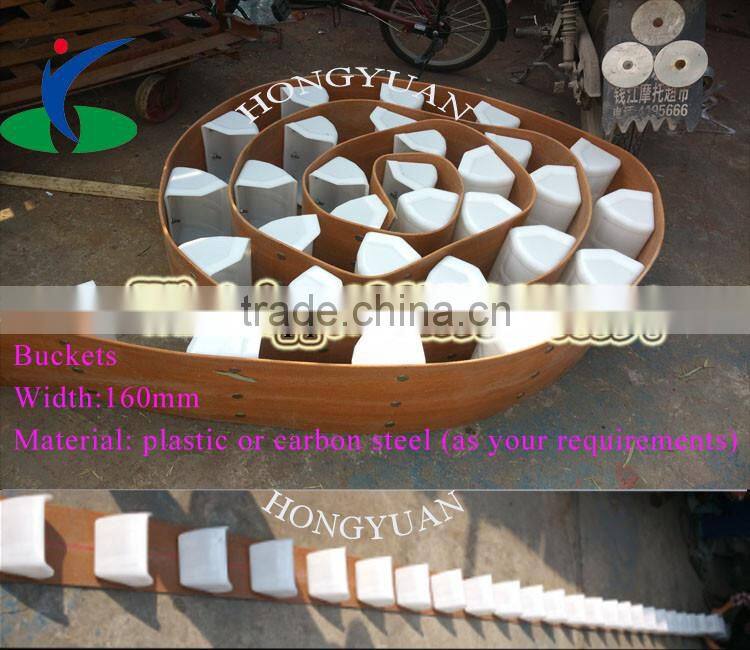

It has two kinds of materials: Stainless steel and carbon steel, it according to your requirements and design for you.

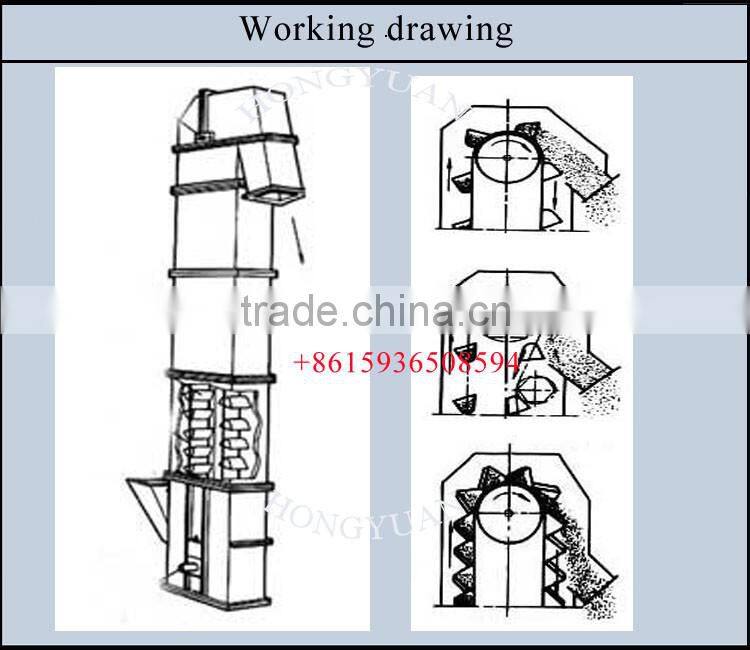

China bucket elevator conveyor with plastic elevator bucket adopts material flow trough feeding way. when the material feed into the bucket, and belt bucket willl lift to the machine top and than automatically discharging the material by the gravity function.
Shipping by standard export wooden boxes.
1.bagging and weighting machine, click to know more information.

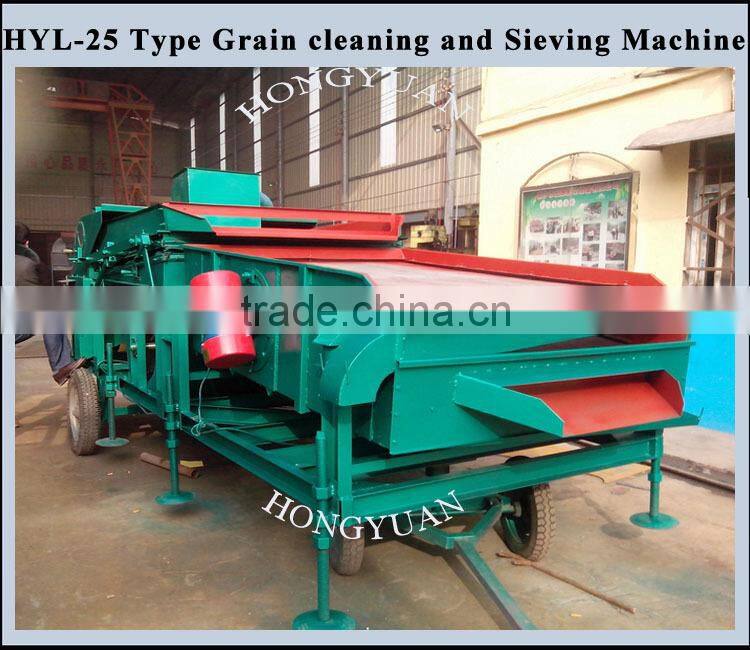

2. grain cleaning and sieving machine, click to know more information
The other main products in our company:
1.What is our product range?
Our company is specialized in manufacturing screening equipment, such as Round Vibrating Sieve, Linear Screening Machine, Laboratory Test Sieve, Ultrasonic Sieving Machine, 450 Type Vibrating Screen Filter, Powder Vibrating Sieve, Granule Sieve Machine, Liquid Vibration Filter, High-Frequency Vibration Filter, vibrating feeder, conveyor system, bucket elevator, grain machine and packaging machine and so on.
2.Which industry does the crane applied to?
Chemical industry, Food industry, Pharmaceutical industry, Metallurgical Industry and so on.
3.What method of payment do you support?
We usually support T/T, L/C or Western Union, and various methods of payment is available.
4.What are the advantages of our products?
1) Reasonable structure.
2) Favorable performance.
3) All goods examined before delivery by 4QC staff.
4) Electricity saving, large capacity.
5) All voltage can be customized, such as 220V, 380V, 415V and so on.
Company information
Xinxiang Hongyuan Vibratory Equipment Co., Ltd. is one of the famous enterprises that
manufacture and sell equipments for screening, conveying and elevating.The company is
specialized in the manufacturer, sales and research of vibrating screen and non-vibrating screen
equipment, conveying equipment (screw conveyer, belt conveyer, drag conveyor, vibrating
conveyor, magnetic conveyor, highpressure conveyor and so on), as well as elevating
equipment (TD series elevator, NE series elevator, vertical elevator and high pressure
elevator).
Feel free to contact Cathy at any time, the reply will given in 24 hours.
Company Profile
Xinxiang Hongyuan Vibratory Equipment Co., Ltd. is one of the famous enterprises that manufacture and sell equipments for screening, conveying and elevating. The company is located in the Hi-tech Development Zone of Henan Xinxiang, which is the largest manufacturing base of vibrating screen in China. The city of Xinxiang also has the advantage of convenient transportation, as the Yellow River is in the north of it, the Beijing-Hong Kong-Macau Expressway is in the east of it, and the Beijing-Guangdong Railway is in the west of it.
The company is specialized in the manufacturer, sales and research of vibrating screen and non-vibrating screen equipment, conveying equipment (screw conveyer, belt conveyer, drag conveyor, vibrating conveyor, magnetic conveyor, high-pressure conveyor and so on), as well as elevating equipment (TD series elevator, NE series elevator, vertical elevator and high-pressure elevator). Presently there are over 200 employees, among them, 65 have professional titles of middle and senior. In the year of 2000, the CAD work station was established by the company, which is an earlier one in the same field. Moreover, our products have scientific design, high performance and reasonable price. Depending on the first-rate products, as well as the advanced technology and equipment, highly competent personnel, strict management, and complete inspecting measures, the company has fostered a good image.
Aiming at high quality and satisfying service, and based on the principles of honesty, pragmatism, innovation and diligent, the company does welcome the old and new customers to communicate and corporate with us.
For over ten years, the company has devoted itself into the manufacture and development of vibratory equipment, which includes vibrating screen and non-vibrating screen, conveyor, feeder, vibrating motor, elevator, etc. In addition, the company not only has the excellent equipment, but also has a comprehensive marketing and after-sale service network all over Asia. Before sales, this network can provide technology support; for sales, it can provide help for business negotiation; and after sales, it can provide guide for installation and application. All in all, this network can assure you satisfying service in the whole process.
At last, the company does want to express the heartfelt thanks to the trust and support of the old and new customers. It is hoped that we can make progress and create a bright future together! Hongyuan does welcome you!
