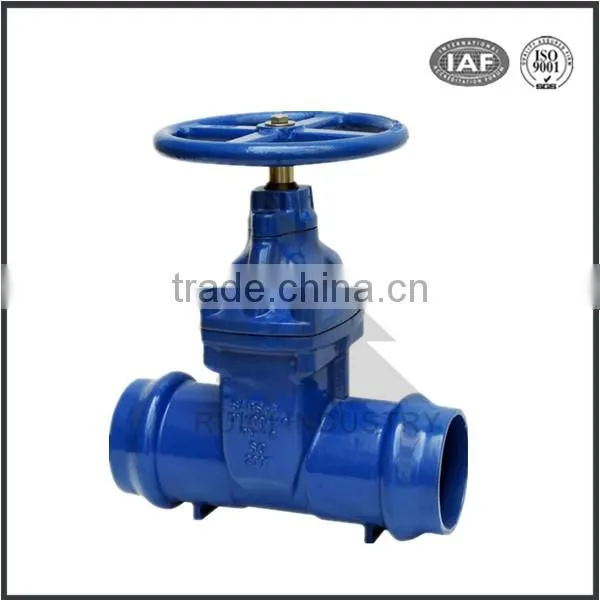

6 Inch Cast Iron Resilient Seated Different Type of Gate Valve

Name: 6 Inch Cast Iron Resilient Seated Different Type of Gate Valve
Brand: NONE
SKU: 139184501

US$ 8.29 - 58.89 MOQ: 1 Piece

Key Specifications

Standard or Nonstandard:

Standard

Structure:

Gate

Pressure:

Low Pressure

Dalian Ruici Industry Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China port

Delivery Detail:

Delivery time depends on order quantity.

Standard or Nonstandard Standard

Structure Gate

Pressure Low Pressure

Power Manual

Material Casting

Temperature of Media Medium Temperature

Media Water

Port Size ISO

Place of Origin Liaoning, China

Model Number NONE

Brand Name NONE

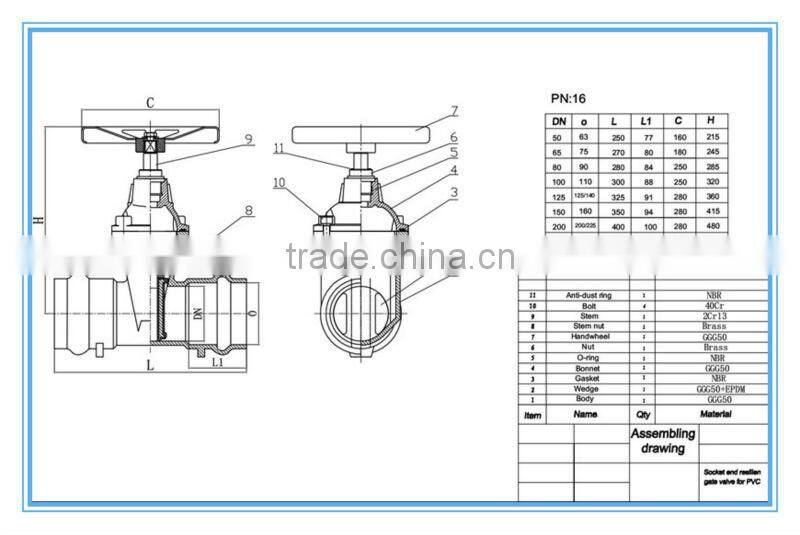

6 inch cast iron resilient seated different type of gate valve

Body:Ductile Iron GGG50(EN-GJS-500-7) DIN EN 1563(DIN 1693)

Bonnet:Ductile Iron GGG50(EN-GJS-500-7)DIN EN 1563(DIN 1693)

Gland:Ductile Iron GGG50(EN-GJS-500-7)DIN EN 1563(DIN 1693)

Gate:Ductile Iron GGG50(EN-GJS-500-7)DIN EN 1563(DIN 1693)

Gate covering:Completely covered internally and externally with elastomer EPDM

Bonnet gasket:EPDM

Orings:EPDM

Stem:Stainless steel

Stem Nut:Brass

Bolts:Stainless steel

Paiting:Epoxy

Pipe Connect: UNE EN1452-2 /ISO4422

Nominal pressure: 0.6, 1.0, 1.6 and 2.5MPa (150lb)
Nominal diameter: 50 to 1,200mm
Temperature: -38 to 650°C (range of temperature subject to the material of sealing and property of medium)
Connecting flange: ANSI B16.5, GB/T9113, JB/T79, HG, SH, JIS, DIN, NF and BS
Main materials: WCB, ZG1Cr18Ni9Ti CF8, CF8M, CF3, CF3M and 2520
Seal type: hard and soft
Accessory: flange ,solenoid valve
High-quality, full-port design
Compact, Low Profile
Leak-proof elastomer packing gland
pneumatic systems to deliver optimum control. This compact valve is highly resistant to chemical and corrosive flow.
