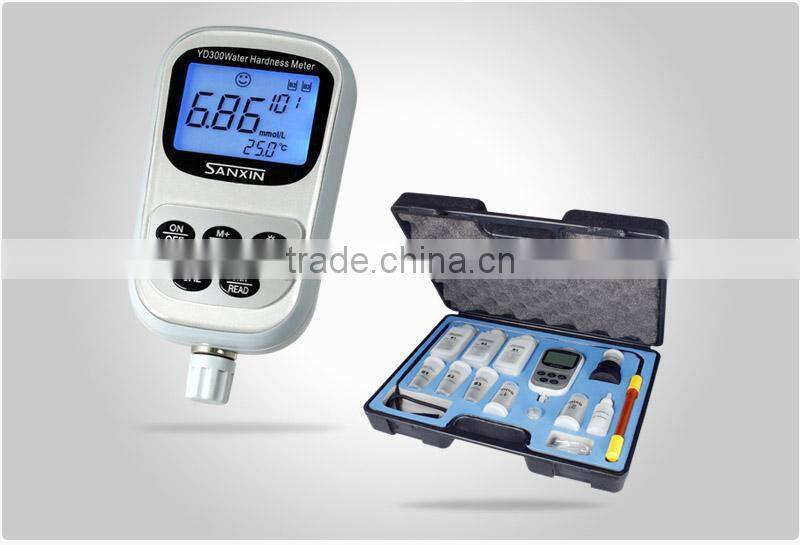

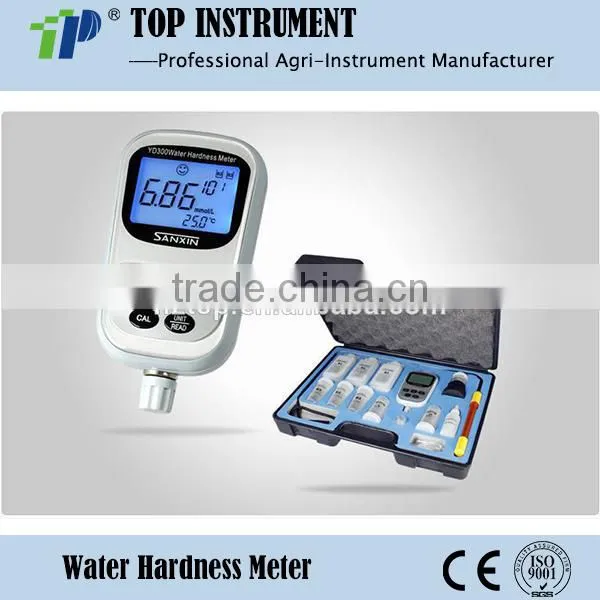

High Quality Portable Water Hardness Meter

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Zhejiang, China

Model Number:

YD300

Zhejiang Top Cloud-Agri Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo or Shanghai port

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Model Number YD300

Name: High Quality Portable Water Hardness Meter

Model: YD300

Product Description

Introduction

Portable meter is used for measuring water hardness (the total concentration of calcium ion and magnesium ion).
Electrode adopts model 601-F water hardness combination electrode with patent structure. It consists of measurement electrode, reference electrode and temperature probe. Replaceable measuring head, steady potential, quick response, easy to use.
Meter adopts intelligent chip design, automatic calibration, automatic temperature compensation, time display, data storage, low voltage display, etc.
Ability to switch among eight units: mmol/L, mg/L (CaCO3), mg/L (CaO), mmol/L (Boiler), mg/L (Ca). Three options of three units : ºfH(France),ºdH (Germany)and ºeH(UK)from WH-Link communication software.
Equipped with B1,B2 and B3 calibration solution.
IP57 waterproof rating, equipped with portable case, calibration solution and other accessories.

Specification

Water Hardness	Measuring range	(0 ~ 10)mmol/L; (0 ~ 401)mg/L(Ca);
		(0~1000)mg/L(CaCO3); (0 ~ 100)ºfH(France Degree);
		(0 ~ 561)mg/L(CaO); (0 ~ 56)ºdH(German Degree);
		(0 ~ 20)mmol/L(Boiler);(0~70)ºeH (England Degree)
	Resolution	0.01 and 0.1 water hardness units
	Accuracy	±5% FS
	Temp. compensation	(5 ~ 50)℃ (automatic)
	Calibration Solution	B1 Calibration Solution — 2.00×10-2 mmol/L
		B2 Calibration Solution — 2.00×10-1 mmol/L
		B3 Calibration Solution — 2.00 mmol/L
		(B3Calibration Solution also can be used for the soaking solution of electrode)
	Calibration Mode	(a)B1/B2 Calibration—using B1 and B2 Calibration Solution,suitable for < 2.00×10-2 mmol/L low concentration water quality,for example, boiler water.
	Calibration Mode	(b)Calibration—using B2 and B3 Calibration Solution,suitable for general water quality.
Temperature	Measuring range	0 ~ 60℃
	Resolution	0.1℃
	Accuracy	±0.5℃
Other Technical Parameter	Data storage	99 groups
	Content Storage	Serial number of measuring value, measuring value, units, temperature, ATC or MTC, date, time and calibration way.
	Power	Two AA cells (1.5V*2)
	Dimension and weight Quality & safe certificate	Meter:(6512031)mm/180g; Carry Case: (25521050)mm/790g
	Dimension and weight Quality & safe certificate	IISO9001:2000 and CE
Working conditions	Ambient temperature	(5~35)℃
Working conditions	Ambient humidity	≤85%RH

1. Model YD300 water hardness meter	1set
2.Model 601-S water hardness electrode (With two measuring heads and one screw plug)	1pc
3. AA cell (1.5V )	2pcs (included)
4.100mL hardness calibration solution ( B1, B2 and B3 )	1btl/each
5.20mL test cup	6pcs
6. Test cup pedestal	1pc
7.Carring case	1pc
8. Operation manual	1 set

Accessory Category	Description	Specification
Water hardness electrode	601-S water hardness electrode	Suited for measurement of total concentration of calcium ion and magnesium ion, match YD300 meter, 8 pin connector
Water hardness calibration solution	Water hardness calibration solution B1	2.00×10-2mmol/L,500mL/250mL/100mL(bottle)
	Water hardness calibration solution B2	2.00×10-1mmol/L,500mL/250mL/100mL(bottle)
	Water hardness calibration solution B3	2.00mmol/L, 500mL/250mL/100mL(bottle)
	Plastic test cup	Specification:20mL
Accessories	Test cup base	Place test cup on the base
