New design pto grass cutter and hayrake machine
Product Description
9GL-1.4/1.6/1.8/1.9/2.1 Rear-fixed mounted reciprocating-type Mower matched with four-wheel tractor range from 12~35 HP. The machine uses biased crank connected bar structure to drive blades to work. It is suitable to be used to reap natural forage grass and plant herbage, alfalfa, reed, grass feed etc. in level grass land for agricultural, forest and pasturing area, and in different condition grass land in the sloping field and hills area. It uses the tractor's power output shaft to promote the mower's movement of blade, used the three-points suspension structure to make the machine rise and fall, operate the power output structure (Operate the Clutch of tractor) to realize the moving and stopping of blades, lifting mechanism is divided into two models of cylinder and lifting frame.
Main Specification
Model |
9GL-1.4 |
9GL-1.6 |
9GL-1.8 |
9GL-2.1 |
(m) Cutting width |
1.4 |
1.6 |
1.8 |
2.1 |
(cm) Cutting Height |
6~8 |
6~8 |
6~8 |
6~8 |
(kg) Weight |
230 |
240 |
250 |
260 |
(hp) Fitted power |
18 |
25 |
25 |
25~30 |
Linkage |
Rear-fixed three points mounted |
|||
Working speed |
5~8 km/h |
|||
Knife travel |
76 mm |
|||
Productivity |
1~1.4 ha/h |
|||

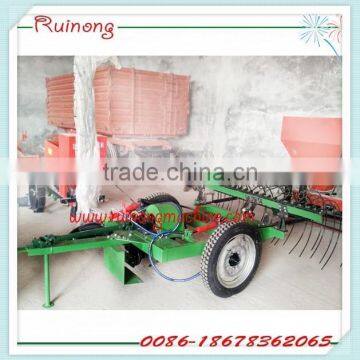

Pictures
Packing and shipping
We usuall pack our goods in iron frame and we can also do as you requirements
We will ship the goods within 30 days for more than 100sets, and 15 days for one set
.
Guarantee
The guarantee period is one year, and we will express the broken parts by plane for free during the guarantee period.
If the products have big problems that affect the normal usage, we will agree to return the goods.
