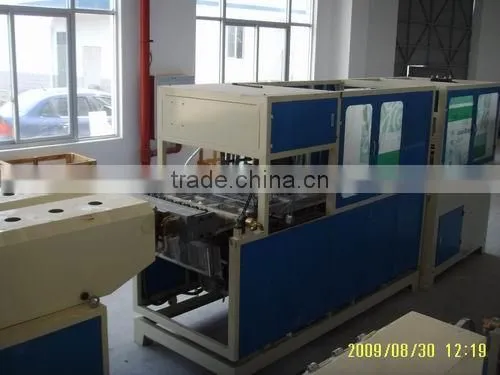

Disposable Plastic Product Machine

Name: Disposable Plastic Product Machine
Brand: Baochuang
SKU: 139170843

US$ 144,000 - 160,000 MOQ: 1 Set

Key Specifications

Condition:

New

Application:

Granules

Plastic Processed:

Fujian Baochuang Machinery Industry Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Fuzhou

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Application Granules

Plastic Processed PP

Screw Design Double-screw

Place of Origin Fujian, China

Brand Name Baochuang

Model Number X-65/80

Disposable plastic product machine :

The ZF double layers once-extruding compound plastic machine

1.this machine can extrude out two colors of decomposed sheet at the same time .

2.after been polished and compressed the sheet will be made smoother and neater.

3.molding the heat preserved material sheet directly will save the equipment investm-ent,

4.reduces power consumption and enhances efficiency.themachine is computer-controlled and with a friendly operating windows.

5.according to the geography distribution of the local resources such sa calcium carbonate talcum powder and plantfider.

6.the machine can produce bows,cups,plate-like fast food container etc all kinds of packing containers or tablewares up to hundreds products .

7.this machinc measures up with GRAS regulations (FDA).

Techniques:

Extruding Coating Automatic forming Intelligent mechanical Hand Automatic Punching die-Cutting Continusioucly process without manual work

SPECIFICATIONS

Main screw	88mm	Motor of auxiliary unit	11kw
Length-to diameter ratio of main screw	1:28mm	Power of sucking plastic and shaping section	1.5kw
Screw rotation speed	10~60r/min	Max. shaping area	520×260mm2
Heating system	30A	Max. shaping depth	80mm
Extrusion output	70kg/h	Working speed
Power of main motor	18.5kw	Pumping speed of vacuum pump	70m3/h
Screw of auxiliary unit	65mm	Vacuum limit	2×10pa
Length-to diameter ratio of main screw of auxiliary unit	1:25mm	Pressure of air source	0.5~0.7mpa
Screw rotation speed	10~60r/min	Displacement of air source	0.7~1m3/min
Heating system	20A	Power supply voltage	380v 50hz
Extrusion output	70kg/h	Weight of complete unit	3.2T
Main engine size(mm)	3400×1500×1500	Auxiliary engine size(mm)	2800×1200×1950
