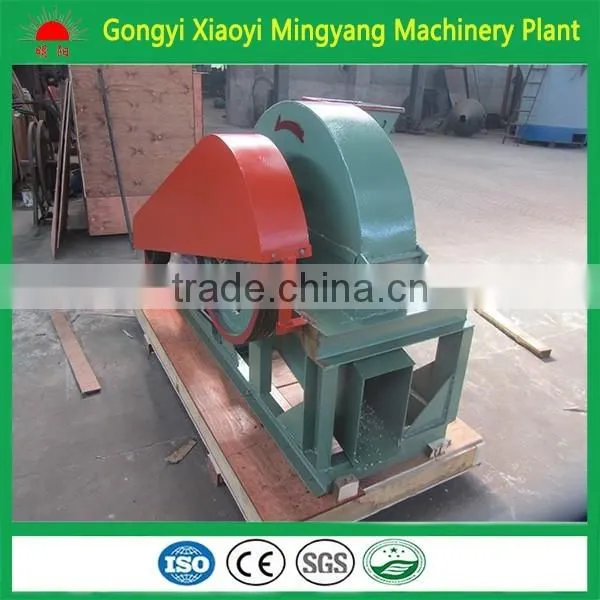

2016 Hot sell disc type industrial shaving machine with low noise
Introduction of industrial shaving machine:
1)industrial shaving machine is mainly used to cut the wood into uniform shavings.
2)includes rack, platform fixed on the rack, the knife rest fixed on the platform, the raw materials put into the inlet, and the shavings are produced through the knives, with even size and thickness.
3) The materials can be log, the tree branch and plate edges and other wood materials
4) Application: The wood shavings can be used to make particle board, the raw materials of the wood pulp paper in papermaking factory; fragile’s filling materials in transporting company, making bed for animals such as the pig, the cow, the sheep. Also can be used as the bioenergy .
Worling principle of industrial shaving machine:
1.Put the raw materials into the feeding hole;
2.Cut the materials by the cutters, and then put them into the pulverizing room;
3.Strike and crush them by the hammer and shear knife in high-speed revolution;
4.Send out the finished products through the screen by wind power;
5.The particles size can be adjusted by the size of the blades and mesh aperture.
Advantage fo the industrial shaving machine:
1.The wood waste crusher can process logs, branches, plate edges into wood shavings.
2.Produced shavings are as the same as furniture factory production of wood shavings.
3.Automatic self-feeding equipment, has greatly increased the production speed, it also saves time and manpower.
The main data of industrial shaving machine:
Model |
9BH-420 |
9BH-600 |
9BH-800 |
Output(kg/h) |
400 |
800 |
1200 |
Inlet size(mm) |
160*80 |
200*120 |
230*230 |
Knife number |
4 |
4 |
8 |
The knife length(mm) |
90 |
150 |
150 |
Power(kw) |
7.5 |
15 |
30 |
Outsize(m) |
1.2*0.5*0.8 |
1.5*0.7*0.85 |
1.8*0.85*1.15 |
Weight(kg) |
150 |
280 |
500 |

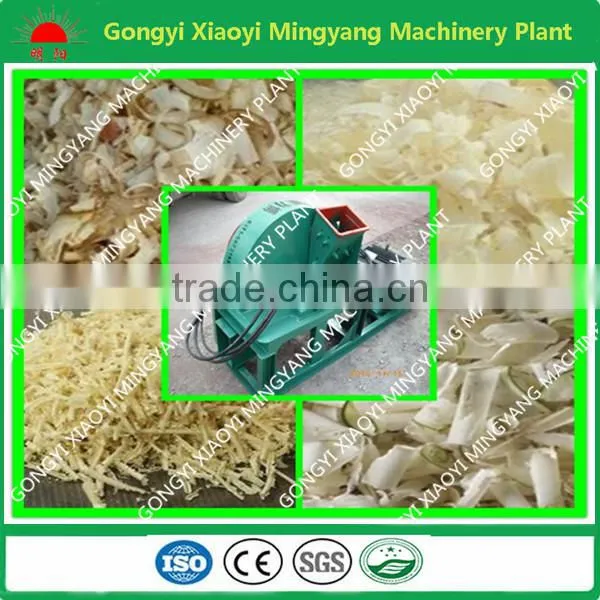

Finish products of industrial shaving machine
The pre-sales service:
To provide you with the project and process design, make suitable plan for you, or design and manufacture the products according to your special needs.
The sales of service:
To accompany you to complete the equipment inspection and acceptance, assists to draft the construction scheme an detailed process.
The after-sales service:
Our company could send the engineer to guide the installation of equipment and the commissioning of the machine.
About us:
Gongyi Xiaoyi Mingyang Machinery Plant is located in Zhengzhou City, which is the biggest manufacturing base of charcoal making machinery.And we are the one of the earliest and largest manufacturers of renewable fuel & energy equipments and related machinery.
After 15 years development, now our company becomes an independent economic entity with the integration of science, engineering and trading department. our products and are widely accepted in both domestic and world market, and also exported to more than 30 countries, such as England, Russia, Sweden, Poland, Iran, Sudan, South Malaysia, Indonesia, Vietnam, etc.
We have got many certification such as CE,ISO9001, BV and so on
