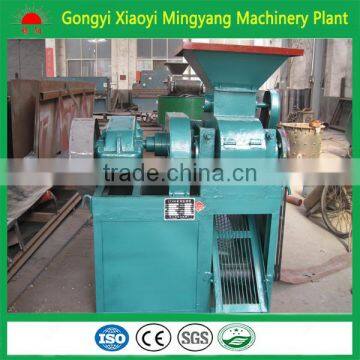

Factory direst suply charcoal ball briquette press machine with ce approved
- 120 Set / Sets per Month
- qingdao shanghai and any other ports in China
- T/T D/P D/A Credit Card PayPal
- Charcoal Briquette Machine with Low Price(0086-15978436639)
- Charcoal Briquetting Process Machine(86-15978436639)
- Briquetting Plant Machine(0086-15978436639)
- Charcoal Briquette Machine China Trade(86-15978436639)
- Charcoal Briquette Machine for Family Use(86-15978436639)
- Granules Charcoal Briquette Machine(0086-15978436639)
Product Details
Condition: | New | Production Capacity: | 2-4TPH | Motor Type: | AC Motor |
Power(W): | 7.5KW | Place of Origin: | Henan, China | Brand Name: | Mingyang |
Model Number: | T360-4 | Dimension(L*W*H): | 1.45*1.47*1.75m | Certification: | ISO CE |
Warranty: | One Year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Factory direst suply charcoal ball briquette press machine with ce approved
The whole production line of the charcoal ball briquette press machine
1.Mateials size required before feeding into briquette machine,less than 3mm.If the size
is larger than 3mm,it is necessary to crush into smaller size for briquette;
2.Moisture content:around 10%;
3.Briquette plant is made up of crusher,double shaft mixer,binder mixing barrel,briquetting
machine,vertical dryer,etc;
Brief Introduction of charcoal ball briquette press machine
charcoal ball briquette press machine is mainly used for anhydrous materials of non ferrous and ferrous mineral powder briquette /ball making system before the smelting furnace, such as coal,coke powder, coking coal, coal ash, coal mud, iron ore concentrates, chromate ore concentrates,mgo power, copper power, chrome ore power,Lead Zinc Ore, steel slag, aluminum ash, Si Mn mineral powder, bauxite refractory, nonferrous metal power, refractory matter, ceramic filter sand and metallurgical powder cold pellet making industry.
Parameter of charcoal ball briquette press machine
Model | capacity | Power(kw) | Speed of main shaft | Type of pressure | Material of roller | Form of structure |
T290 | 1-2TPH | 5.5 | -- | Mechanical | -- | Two rollers single press |
T360 | 4TPH | 7.5-15 | 18r/min | Mechanical | 65Mn | Four roller double press |
T430 | 6TPH | 11-18.5 | 15r/min | Mechanical | 65Mn | Four roller double press |
T500 | 8TPH | 15-22 | 15r/min | Mechanical & Hydraulic | 65Mn 9cr2Mn | Four roller double press |
T650 | 10TPH | 18.5-30 | 13r/min | Mechanical & Hydraulic | 65Mn 9cr2Mn | Four roller double press |
T800 | 15TPH | 30-45 | 13r/min | Mechanical & Hydraulic | 65Mn 9cr2Mn | Four roller double press |
T1000 | 20TPH | 55-75 | 13r/min | Mechanical & Hydraulic | 65Mn 9cr2Mn | Four roller double press |
Working principle of charcoal ball briquette press machine
This series of charcoal ball briquette press machine will pass the power on to the two pressure roller through the reducer.The two sides and roll rotation, in both the rotating roll,Natural materials to enter the ballroll mode, with the roll rotation, material pressure on a small become larger, When the material to the two rollers rotating line contact point, the pressure of materials has reached the peak. Tremendous pressure in the role of line, the materials become a finished product from the powder ball.
The structure of charcoal ball briquette press machine
1, the feeding part, is used to feed material so that the material can feed to rolloer evenly ,it is drived by Spiral comprises electromagnetic motor.
2. The transmission part, main transmission system is: Motor - triangle belt - reducer - Open Gear - roll.
3. Forming part, mainly refers to the part of the host machine, its core part is roller.
The feature of charcoal ball briquette press machine
charcoal ball briquette press machine also named Coal Briquette Roller-press Machine, it is used to make ball shape briquettes from powder material, such as coal dust, slime, charcoal powder, gypsum powder, iron powder, etc.The size of the pellet can be 20mm-60mm. As a manufacturer, we can design the machine according to your raw material and your request about the size of the briquettes. After briquetting, the coal will be easy for transporting, storing and burning. charcoal coal ball press machine
The application of charcoal ball briquette press machine
charcoal ball briquette press machine not only can make charcoal powder into high-efficient natural
fuel, but also can make coal powder, coke powder, iron ore fine, mill scale,iron powder, refractory material, lime powder etc into performed high-efficient fuel. The final products are smokeless, non-toxic, high-efficient, flame-retardance, high density ,environment protective etc
FInal Products of charcoal ball briquette press machine
1. Shape:pillow-shaped ball, egg-shaped ball, oval-shaped ball, circle-shaped ball, square-shaped ball, columnar-shaped ball, banding-shaped ball, cake-shaped ball, etc.
2.Size : Usually 20-60mm. We can supply you any types of the final product you customize
3.Uniformity: Mixer may be needed to make materials homogeneous.
4.Moisture content: 9-15%. If higher than this, rotary dryer is needed.
Pre-sale Service
1. Free site investigation for clients, provide project consulting, drawings design, project budget and relevant technical data.
2. Customer focus, providing a variety solutions for clients reference to get the most satisfaction option.
On-sale service
1. Strictly conforming to the relevant national standards to process professional installation and debugging. Complete clients using,maintenance and general troubles clearance of technical guidance.
2. After installation, ask for clients to check and accept, solicit clients opinions to fill in the quality acceptance form.
After-sale service
1.Warranty service : The Equipment have one year warranty and long life maintenance, prompt provide the required service to clients after warranty period
2.Telephone service : Set customer hot line ,dealing the problems at once when they in process of working line,dealing the problems at once when they in process of using equipment.
3.Software service : Provide relevant project consultant and software version upgrades for free.
4.after service guarantee : Create customer files, implement the tracking service to customers, provide free annual inspection and regular maintenance.
Gongyi Xiaoyi Mingyang Machinery Plant is
one of the largest and earliest manufacturers of the charcoal making machine, biomass briquette machine and wood pellet production line in China with 25 years experience.
Covered an area of 10000 square meters, currently has 118 employees, divided to 7 department .Designed and produced 6 production line, more than 150 kinds of machines, awarded 10 patents in China.
Products are widely accepted in both domestic and world market ,more than 150 countries
The company enlarged for building one experimental Center of high-tech automtaic production equipment to meet the market requirement.
Professional after-sales service team to be able to handle client issues in a timely manner.
Our main production line include:
Charcoal / Biomass Briquette Plant for Agro-Forestry Wastes
Wood Pellet Mill / Feedstuff Pelletizing Plant
oil press machine
Animal feed pellet machine
Nail making machinery plant
Roller Briquette Press for Coal / Charcoal powder
Cold rolling mill
BBQ Charcoal briquette extruder
How to choose a suitable Charcoal ball press machine :
1. What’s the raw material?
As different materials match different machines, So pls tell us what’s the raw material, is it limestone powder,coal powder or other metal powder.
2. The moisture of raw material ?
The moisture determines whether dryer is needed in the process.
3. The size of raw material ?
It should be crushed if the size is too big.
4. Capacity you need ?
Different capacity match different models of machine, what’s more, the smaller the capacity is, the simpler the process will be.
