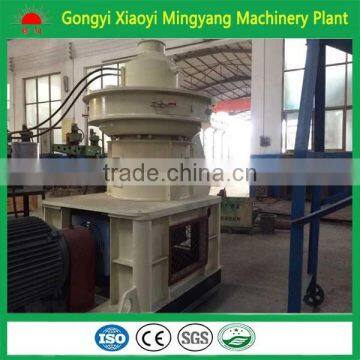

Factory outlet Mingyang brand vertical ring die pellet mill machine for wood sawdust
- 120 Set / Sets per Month
- qingdao shanghai and any ports in China
- T/T D/P D/A Credit Card PayPal
You May Like
-
2016 Reasonable Style high-power flat die sawdust pellet machine with low noise
-
Factory outlet Mingyang brand vertical ring die wood pellet mill for sale
-
2015 MingYang brand vertical ring die pellets mill for wood sawdust
-
2016 Best-selling Ring die biomass fuel pellets machine with CE ISO
-
Easy maintained vertical type 1500kg/h ring die wood pellet mill for sale
-
Upgrading Products and Specification Service sawdust pellet machine for sale
Product Details
| Condition | New | Place of Origin | Henan, China | |
| Brand Name | mingyang | Model Number | HKJ-560 | |
| Voltage | 380V | Power(W) | 90kw | |
| Dimension(L*W*H) | 2600*1300*2300 mm | Weight | 5.8ton, 5.8t | |
| Certification | CE ISO | Warranty | One Year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Factory outlet Mingyang brand vertical ring die pellet mill machine for wood sawdust
Information of pellet mill machine for wood sawdust
pellet mill machine for wood sawdust adopts forced feeding method, the raw materials enter the pelletizing chamber through high speed revolution, then the scraper in the machine distribute the raw materials unevenly
The pressure of ring die is fixed since the ring die diameter of the pellet mill machine for wood sawdust is limited by the diameter mould of the ring die. So when the crude fiber materials are fed in, it is hard to produce high quality pellets with the limited pressure and the wear to the machine also very large
Main data of pellet mill machine for wood sawdust
Model | Capacity | Power | Size of Finished pellets | Weight | Size |
HKJ-350 | 0.4-0.8 t/h | 35kw | 4-12 mm | 2.8ton | 2000*1000*1380 mm |
HKJ-450 | 0.8-1.0 t/h | 55kw | 4-12 mm | 4.2ton | 2200*1000*1580 mm |
HKJ-550 | 0.8-1.2 t/h | 75kw | 4-12 mm | 4.8ton | 2300*1000*1780 mm |
HKJ-560 | 1.0-1.5 t/h | 90 kw | 4-12 mm | 5.8ton | 2600*1300*2300 mm |
HKJ-650 | 1.5-2.5 t/h | 160 kw | 4-12 mm | 6.5ton | 2900*1300*2400 mm |
HKJ-880 | 3.0-4.0 t/h | 315 kw | 4-12 mm | 12.6ton | 3750*1650*3250 mm |
Raw material of pellet mill machine for wood sawdust
The raw material of could be straw, wood-dust, bamboo powder, cotton wood , peanuts shell, clover, etc,
can mix with all kinds of powder materials.
Advantage of pellet mill machine for wood sawdust
1.Vertical hopper:This design can avoid the raw material be stuck in granulating room.
2.Cooling system:As the pelletizing process will generate high temperature, it will lower the service life of die and bearing.Cooling system are considering this situation and avoid it happened.
3.Doublelayer dies:This design increase the efficiency of pellet making,reduce clients cost .
4.Bearing: High precision, high speed, low noise, long life.
5.Unique automatic lubricating system:Which lubricate the bearing, dies and rollers ,increase the produce efficiency and reduce energyconsumption.It can work continuous 20 hours.
The structure of pellet mill machine for wood sawdust Process of pellet mill machine for wood sawdust The mainly processes are :crushing (if the raw material is not already granulated), material sifter, drying: (if the raw material contains too much moisture), Pelletizing, cooling , and packing: The whole process is highly automatically controlled.Final products of pellet mill machine for wood sawdust
Gongyi Xiaoyi Mingyang Machinery Plant
is located in Zhengzhou City, which is the biggest manufacturing base of charcoal making machinery. And we are the one of the earliest and largest manufacturers of renewable fuel & energy equipments and related machinery.
.
After 15 years development, now our company becomes an independent economic entity with the integration of science, engineering and trading department. our products and are widely accepted in both domestic and world market, and also exported to more than 30 countries, such as England, Russia, Sweden, Poland, Iran, Sudan, South Malaysia, Indonesia, Vietnam, etc
1, How to pay to you ?T/T inadvance . We can accept 30%-50% deposit , and balance paid to us before delivery machine to you .
2, How long is the delivery time?
For standard machines, it would be 7-15 days; For non-standard machines and customized machines according to clients specific requirements, it would be 30 days.
3, Do You Arrange Shipment For The Machines?Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you. For EXW price, clients need to arrange shipment by themselves or their agents.
4,How about the documents after shipment?After shipment, we ll send all original documents to you by DHL, including Packing List, Commercial Invoice, B/L, and other certificates as required by clients.
5, How is the packing?
Water-proof plastic film package with foam protection in each corner Solid Seaworthy Wood Box Package with Steel Belt .Save space as much as possible for container loading .
If you need any information, please kindly contact me, i will give you reply soon
Gongyi Xiaoyi Mingyang Machinery Plant
Sales Manager: Winnie Sun
Mobile: 0086 15225168310
Skype: winniesun1496
whatsapp 0086 15225168310
wechat : 0086 15225168310
