Help CenterHigh Quality Agricultural Irrigation System
Related Products
-
New Design Mobile Sprinkler Irrigation for SaleUS$ 3,000 - 10,000MOQ: 1 Set -
Removable Farm Use Hose Reel Sprinkler Irrigation SystemUS$ 3,000 - 10,000MOQ: 1 Set
-
Energy-saving Agricultural Mobile Sprinkler Irrigation SystemUS$ 3,000 - 10,000MOQ: 1 Set
-
Agricultural Sprinkler Irrigation System For SaleUS$ 3,000 - 10,000MOQ: 1 Set
-
2016 Latest Design Agricultural Sprinkler Irrigation System For SaleUS$ 3,000 - 10,000MOQ: 1 Set
1.PE water pipe
Diameter: 50mm,length: 180m,burst pressure >2.0Mpa,tensile strength >16.5Mpa,service life: 15 years.
The PE pipe is a kind of high-tech products, one end of it is connected on the reel, and through the horizontal axis to water supply,the other end is connected with the sprinkler car.

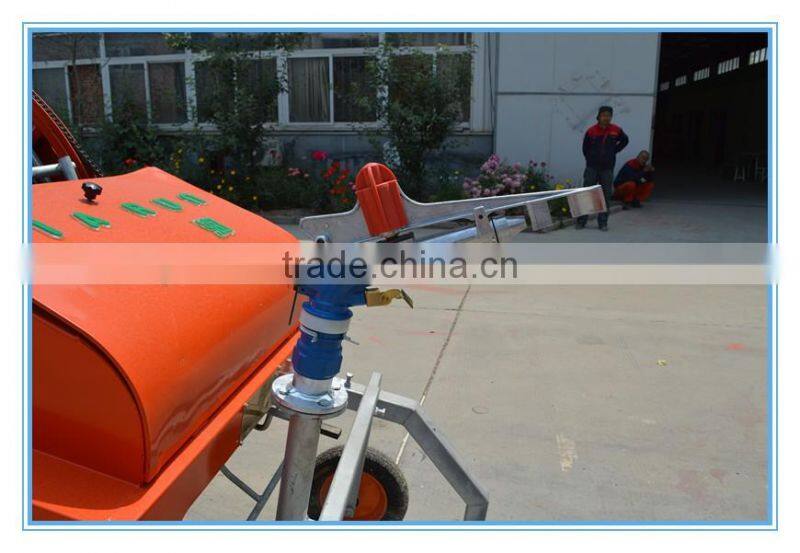

2.High quality domestic spray gun
Vertical rocker type spray gun and turbine worm type spray gun.
3.Impact type water turbine
With functions of automatic speed control.
4.Multi-function two-speed gearbox transmission
It is the control system of the sprinkler irrigation machine.
5.Automatic arrangement of PE pipe guide device
It is about a thread guide rod and can shift the drive, it can ensure that the PE pipe automatic recovery,each layer are volume very neatly.
6.Automatic parking safety device
It can realize the transmission system of on-off, brake, variable speed, safely and quickly recycle, automatic stop function.
7.Rack
Welded by rectangular pipe,good rigidity.All structures are processed by hot dip galvanized, with good anticorrosion performance,also it can rotate 360 degrees.
8.Reel
Exclusive use pickling, phosphating, high temperature treatment process of the bake lacquer and acrylic decoration process, to ensure durable, do not fade, beautiful and high-grade.
9.Sprinkler car
Track width adjustable.
Advantages of irrigation system
This machine is suitable for farmland irrigation,fruit and vegetables irrigation,pasture irrigation,tea irrigation,tobacco irrigation,urban green land, stadiums, golf courses, soccer fields and so on.

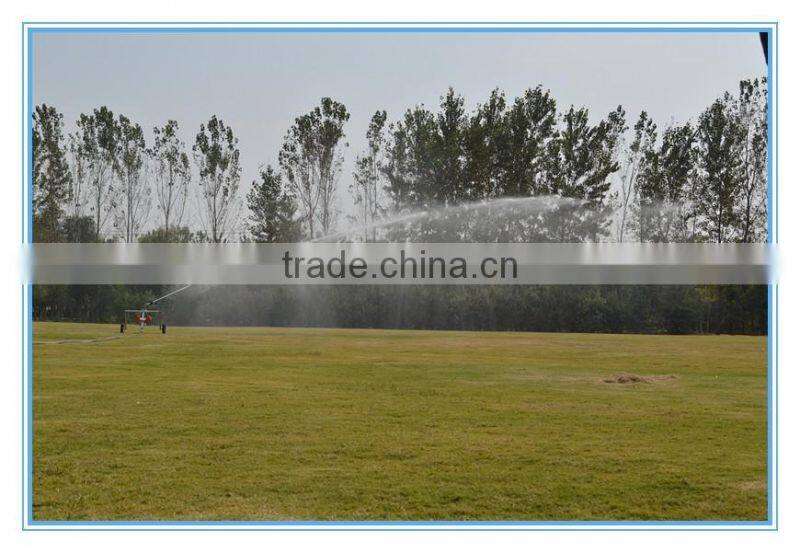

Put the sprinkler irrigation machine on one end of the field,pull the pipes which wrapped on the machine, and the spraying car connected with pipes to the other end of the field with traction.Connect the pipes with water and reach a certain water pressure,then the spraying car can spray the field by spray gun or cantilever.
Jiangsu Jiarun Sprinkler Irrigation Equipment CO.,LTD is located in Xuzhou City,Jiangsu Province.Our company was specialized in irrigation machine research,development,production and sales for 6 years.
And our company has rich experience in technology, advanced production testing equipment, stable and reliable product quality, perfect after-sales service.
Our company has always been adhering to the rigorous work attitude and strict product quality testing, equipped with Amercia, Israel imported accessories, ensure the Jiarun sprinkler irrigation products of higher quality and got good reputation in worldwide market.Also,our company has obtained a number of national patent technology.
