Small Rotary Tablet Press & Automatic Tablet Press Machine
- 200 Set / Sets per Month
- Qingdao Shanghai Guangzhou Shenzhen Ningbo Port
- T/T L/C D/P D/A Credit Card PayPal
- High standard single punch tablet molding machine pills press tablet making Table press machine
- salt tablet press machine milk tablet machine pill press machine for sale
- Single Punch Tablet Press forming machine ,milk slice press machine,pills pressing machine
- Single Punch Tablet Pressing machine ,milk slice press machine with high quality
- 2022 hot sale Tablet Press forming machine ,milk slice press machine,mini press tablet machine
- Auto medicine powder rotary pill tableting machine automatic tablet press machine
Product Details
Condition: | New | Place of Origin: | Henan, China | Brand Name: | Daheng |
Model Number: | DH-DP | Type: | Single Punch | Production Capacity: | 6000pcs/h |
Max. Pressure(KN): | 60KN | Max. Tablet Thickness(mm): | 10 Mm | Max. Tablet Diameter(mm): | 25mm |
Voltage: | Customized | Power(W): | 0.25-4kw | Weight: | 165kg |
Dimension(L*W*H): | 580*600*700mm | Certification: | ISO | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

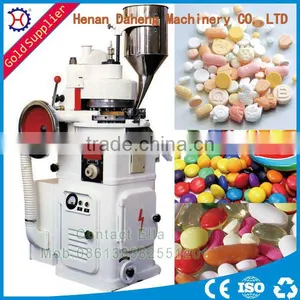

Small Rotary Tablet Press & Automatic Tablet Press Machine
Contact: Ms.Ella
Skype: dhella63
Mobile: 008613838255120
WhatsApp/Viber: 008613838255120
QQ: 2974204665
1. Brief Information of Tablet Press Machine
Tablet Press Machine is designed for pressing tablet from various granular materials, which is used for pharmaceutical, chemical, food, hospital, science research institution is applicable to trial manufacturing in lab or produce in small desktop type press for motive and control sheeting.
It can also be hand operated easy to be operated and maintained, small volume, and light weight. One set of punch and die is mounted the depth of the filling material tablet press and thickness of the tablet can be adjusted.
2. Product Effect: Tablet Press Machine
Size and shapes of tablet products could be customized as your need. Tablet press machine is widely applied in the briquetting with optional patterns or logs, the product could be medicine pill, cube sugar, candy, salt tablet, chocolate tablet, dried milk tablet, calcium table, solid alcohol tablet, effervescent tablet, camphor ball, naphthalene ball, toilet ball, chemical fertilizer etc.
3. Main Parameters of Tablet Press Machine
Model | DH-DP1.5 | DH-DP5 | DH-DP6 |
Max. pressure (KN) | 15 | 50 | 60 |
Max. diameter of tablet (mm) | 12 | 20 | 25 |
Max. depth of fill (mm) | 12 | 18 | 16 |
Max. thickness of tablet (mm) | 6 | 6 | 10 |
Production capacity (tablets/hour) | 4000-6000 pieces/h | 5000 pieces/h | 4000 pieces/h |
Power (KW) | 0.25 | 0.55 | 1.1 |
Power supply | AC,220V/50HZ or 110V/60HZ 1 phase | ||
Net weight (kg) | 70 | 140 | 165 |
Overall size (mm) | 570*380*630 | 650*440*650 | 580*600*700 |

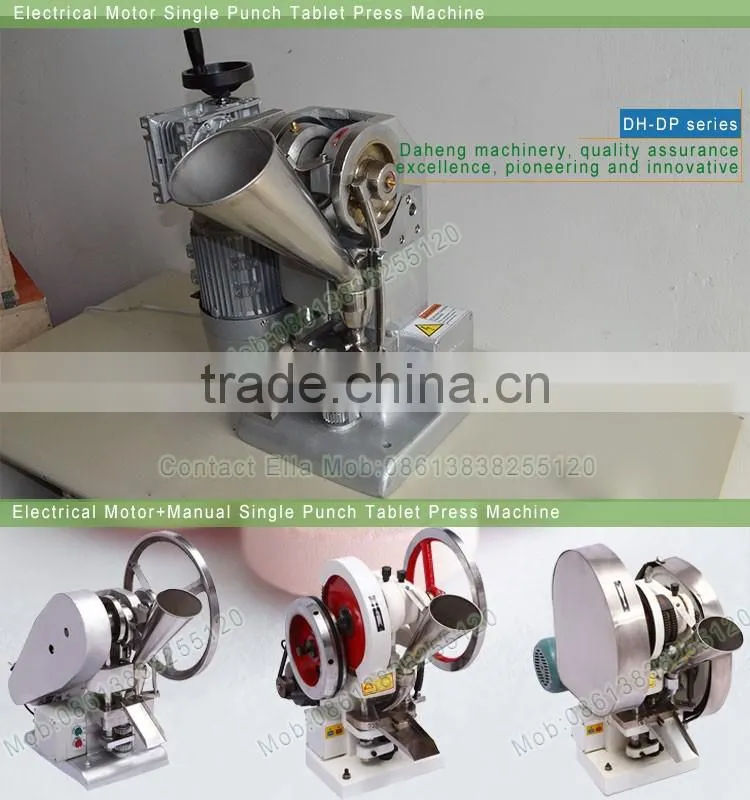

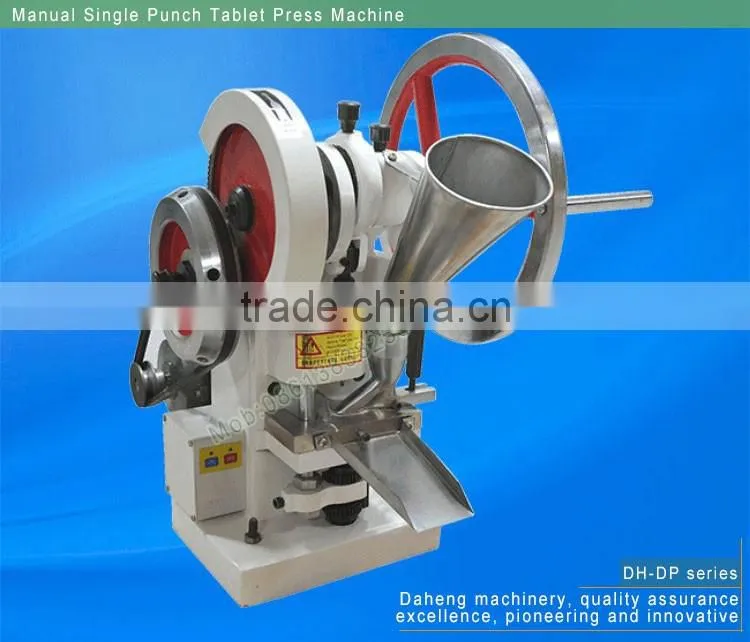

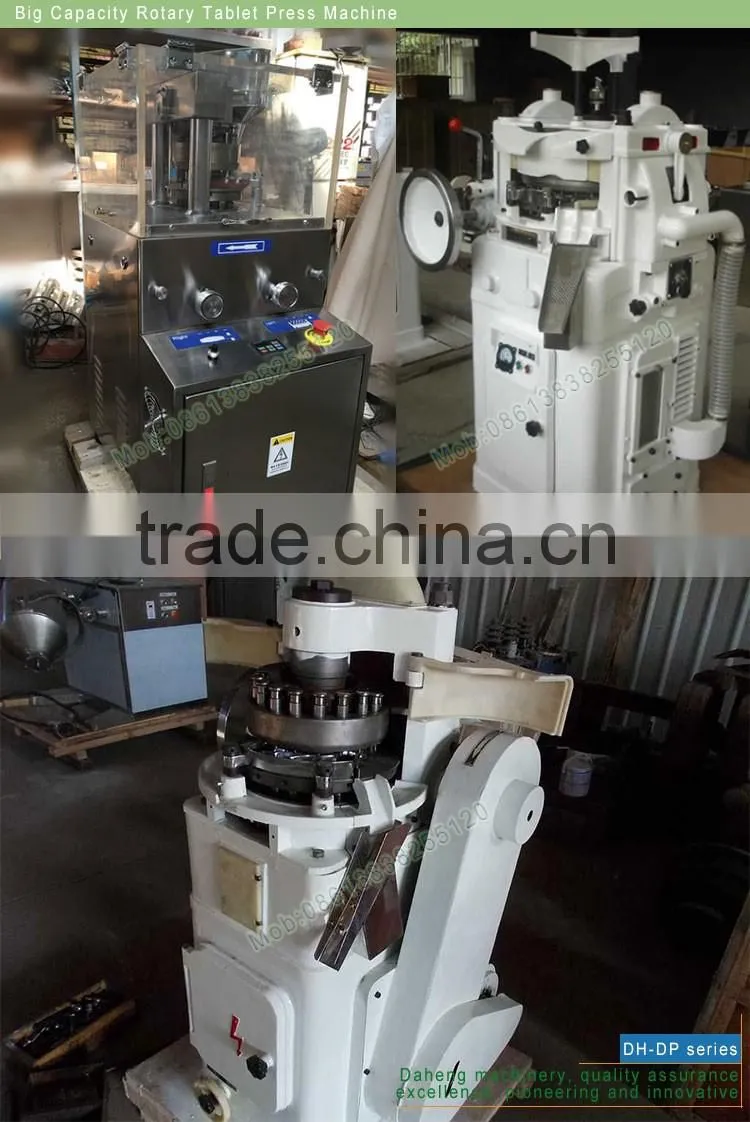

4. Detail pictures of Tablet Press Machine
5. Main Features of Tablet Press Machine
1. 2 pairs of compression, single ejection. It can press two-layer tablets if it sets up special accessories.
2. It has installment for making tablet weight accuracy differences stability.
3. Stainless steel external casing is fully enclosed, where the drug contact parts are made of stainless steel or surface treated non-toxic corrosion.
4. Turret surface is specially treated to prevent cross-contamination.
5. Tableting room is surrounded by transparent glass, and can be opened completely, easy to clean and maintain. Interior is equipped with security lighting.
6. Speed is adjusted by continuously viable control device.
7. Hydraulic system design is reasonable and stable.
8. Equipped with overload protection device, it can automatically shut down when the pressure overload, it can also ensure safe operation by assemble and unassembled protection device.
9. DH-DP series of tablet press machine is continuously updated.it has main pressure and pre-pressure function, which can improve tablet quality.
Customized Shape or Patterns & Application
1. The single tablet press machine will be packaged by export standard wooden case or upon customer's request.
2. All the machines will be adjusted and tested before shipping.
Pre-sale:
- Suggest to client suitable models of as customer need.
- Introduce machine's structure and features in detail, explain the price component.
- Answer client concerned questions.
After-sale:
- Documents and certificate available in time.
- One year guarantee for whole machine
- 24 hours technical support by e-mail
- Calling or door-to-door service
- User manual and detailed Videos/CD
Q: How about the quality of your products?
A: Our machines are manufactured strictly according to national and international standards, and we take a test on each equipment before delivery.
Q: Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passports.
Q: How long is the delivery?
A: Delivery time: within 10-15 working days after receive the deposit.
For more information, pls contact me freely and I will reply you as soon as possible!
We not only provide customers with cost-effective high quality products, but also provide first-class service and support solutions.
