1. Brief Information of Girnder Machine
This grinder machine is designed for using the high speed rotation between movable teech disc and Fixed Fluted Disc to crush the raw material into powder via the effect of impact, friction and collide from the material or teech disc. Then the shredded material flows out from the grinder chamber via discharge hole, and the fineness are controlled via adjust the different screen.
2. Product Effect & Application Range of Girnder Machine
The grinder machine is widely used in pharmaceuticals, chemical, beverage and food industries, spices-like, and dried type materials.
1. A variety of food crops: such as coffee, sugar, chili, coconut shell, wheat, corn, soybean, sesame, nut, walnut, poria cocos, rice,maize, lotus seed, peanut, barley, buckwheat, sorghum, oat etc.
2. All kinds of dry ingredients including almond, herbal medicine, jujube, gorgon fruit, wolfberry, poria cocos, red dates, medlar, hawthorn, gelatin, mastic, dodder seed, rhizome, angelica, Chinese yam, codonopsis, dried pilosula pieceetc.
And they can be grinded into 50-200 meshes powder.
3. Main Parameters of Girnder Machine
Model |
DH-PG180 |
DH-PG200 |
DH-PG300 |
Capacity |
50kg/h |
100-150kg/h |
150-250 |
Power |
2.2kw |
4kw |
7.5kw |
Dimension |
700*420*850 mm |
800*420*920 mm |
500*700*1600mm |

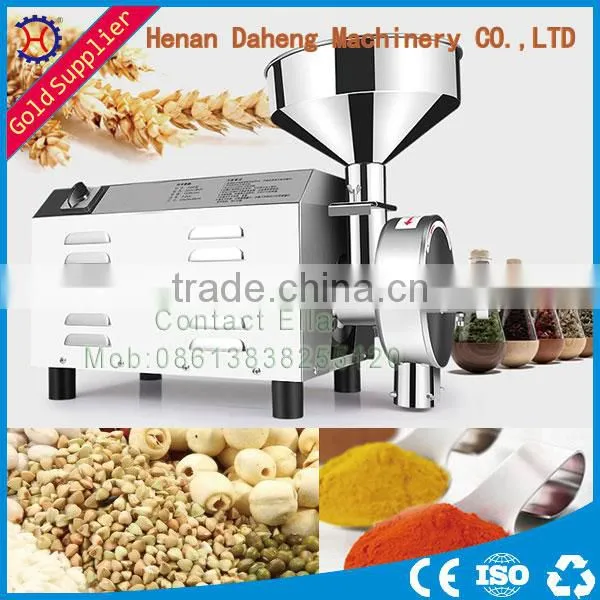

4. Detail Pictures of Girnder Machine
5. Main Features of Girnder Machine
1. Material: 304 Stainless Steel.
2. Overload protector prevents the motor from overload burning.
3. High power motor, low noise, strong power, stable performance
4. Hygiene magnets absorbed the iron powder resulting from abrasion of abrasive disc. The grinding cavity don’t need lubricating oil.
5. Low noise, no plugging, fine powder, no dust.
6. Continuous feeding, high efficiency.
7. Easy operation.
1. The grinder machine will be packaged by export standard wooden case or upon customer's request.
2. All the machines will be adjusted and tested before shipping.
Pre-sale:
- Suggest to client suitable models of as customer need.
- Introduce machine's structure and features in detail, explain the price component.
- Answer client concerned questions.
After-sale:
- Documents and certificate available in time.
- One year guarantee for whole machine
- 24 hours technical support by e-mail
- Calling or door-to-door service
- User manual and detailed Videos/CD
Q: How about the quality of your products?
A: Our machines are manufactured strictly according to national and international standards, and we take a test on each equipment before delivery.
Q: Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passports.
Q: How long is the delivery?
A: Delivery time: within 10-15 working days after receive the deposit.
For more information, pls contact me freely and I will reply you as soon as possible!
We not only provide customers with cost-effective high quality products, but also provide first-class service and support solutions.
