Specifications
1.High quality.2.Reasonable price.
3.Easy operation.
4.ISO9001:2008
5.Concrete mixing transport truck with good mixing
Brief introduction
It uses eight M16 U-bolts, nuts and special sizing blocks which connected together with the truck's batholith and make up the concrete mixing truck. It's main purpose is to delivery the machine mixed concrete to the designated location, at the same time it can also be used as concrete mixing drum.
Fetures of 3m3 concrete mixer truck
It's features is to use diesel engine and power source, and the drum will be running on the way to designated location, to prevent water separate from concrete which will ensure the concrete's quality.

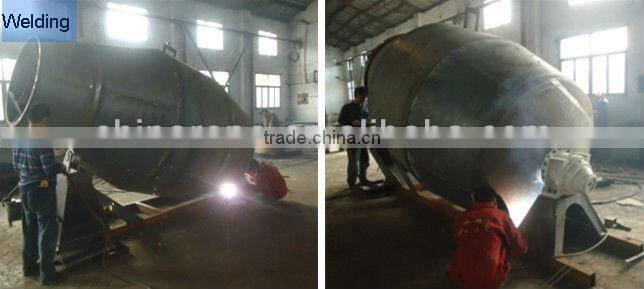

♦ Mixing tank adopts wear resistant manganese steel plate, the mixing tank through
the introduction of automatic welding automatic welding system, improve the production efficiency and welding quality more fine refinement.

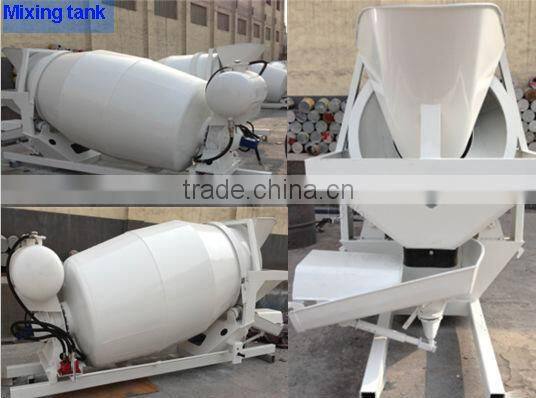

Pictures of mixing tank

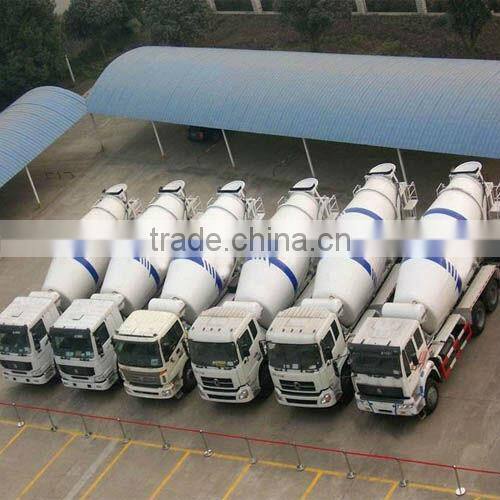

Show room
Parameters of 3m3 concrete mixer truck
Type |
HYC-3 |
HYC-4 |
HYC-5 |
HYC-6 |
Mixing drum capacity(m³) |
3 |
4 |
5 |
6 |
Geometric capacity of mixing drum(m³) |
5.05 |
6.15 |
7.25 |
8.7 |
Loading ration |
0.62 |
0.62 |
0.62 |
0.62 |
Feed speed(m³/min) |
3 |
3 |
3 |
3 |
Discharging speed(m³/min) |
1 |
1 |
1 |
1 |
Axis angle |
16°±15 |
16°±15 |
16°±15 |
16°±15 |
Stirring speed(r/min) |
0-12 |
0-12 |
0-12 |
0-12 |
Inlet height(m) |
3.38 |
3.5 |
3.65 |
3.8 |
Outlet height(m) |
1 |
1 |
1 |
1 |
Mixing drum diameter(m) |
1.7 |
1.7 |
1.85 |
2 |
Outline dimensions(m) |
3.95*1.9*2 |
4.45*1.9*2 |
4.95*2*2.1 |
5.28*2.1*2.3 |
Welcome to our factory
