Specifications
1.Low price.2.Flexibility and convenient.
3.Mixing evenly.
4.ISO9001.
5.Concrete transit mixer truck with fast delivery
This mixing drum tank using today's advanced optimization design, double helix dimensional curved mold cold forming composition is not equivalent mixing blade helix angle, up angle and lead angle, ensuring uniform mixing, the material fast and clean. Tank and the blade are made of high-strength wear-resistant steel.

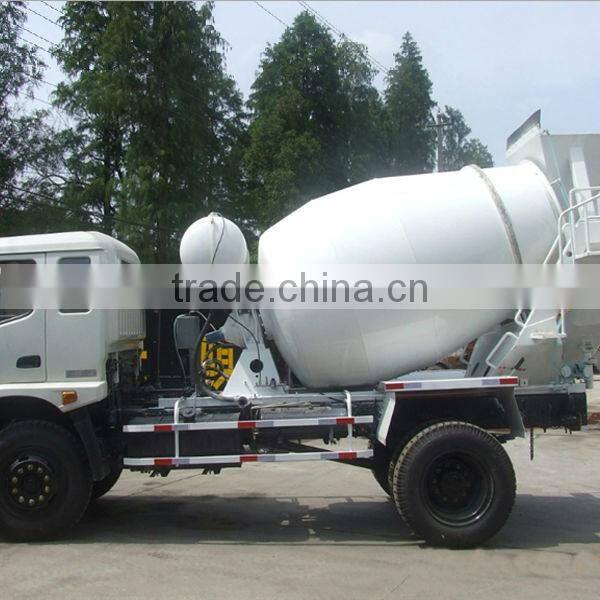

5m3 concrete mixer truck
Fetures
The tank body adopts the domestic first submerged arc welding technology which makes it more solid in strength and more beautiful in appearance. The linked parts of the tank body use bounded construction which can extend its service life. The seal head adopts German cold spinning technology that makes it sleek and fine in appearance.

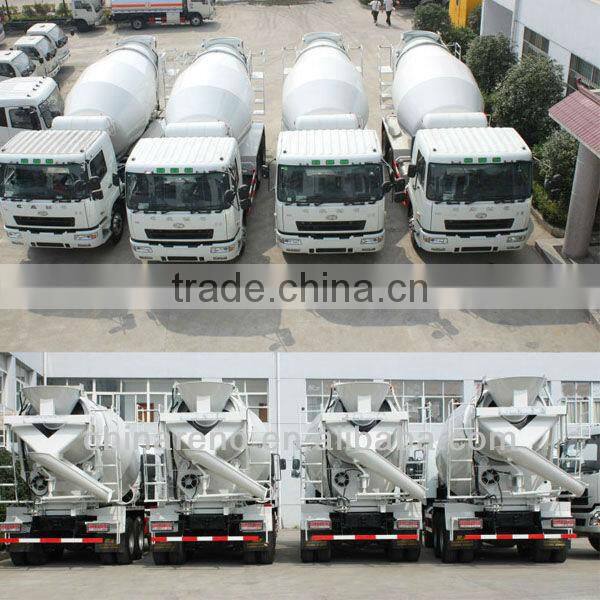

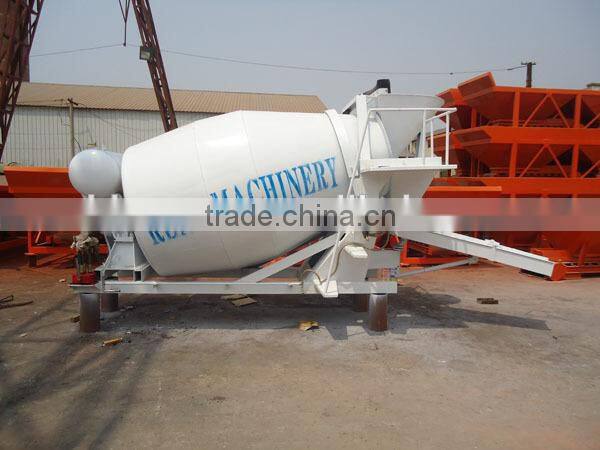

Factory pictures
Parameters
Type |
HYC-3 |
HYC-4 |
HYC-5 |
HYC-6 |
Mixing drum capacity(m³) |
3 |
4 |
5 |
6 |
Geometric capacity of mixing drum(m³) |
5.05 |
6.15 |
7.25 |
8.7 |
Loading ration |
0.62 |
0.62 |
0.62 |
0.62 |
Feed speed(m³/min) |
3 |
3 |
3 |
3 |
Discharging speed(m³/min) |
1 |
1 |
1 |
1 |
Axis angle |
16°±15 |
16°±15 |
16°±15 |
16°±15 |
Stirring speed(r/min) |
0-12 |
0-12 |
0-12 |
0-12 |
Inlet height(m) |
3.38 |
3.5 |
3.65 |
3.8 |
Outlet height(m) |
1 |
1 |
1 |
1 |
Mixing drum diameter(m) |
1.7 |
1.7 |
1.85 |
2 |
Outline dimensions(m) |
3.95*1.9*2 |
4.45*1.9*2 |
4.95*2*2.1 |
5.28*2.1*2.3 |

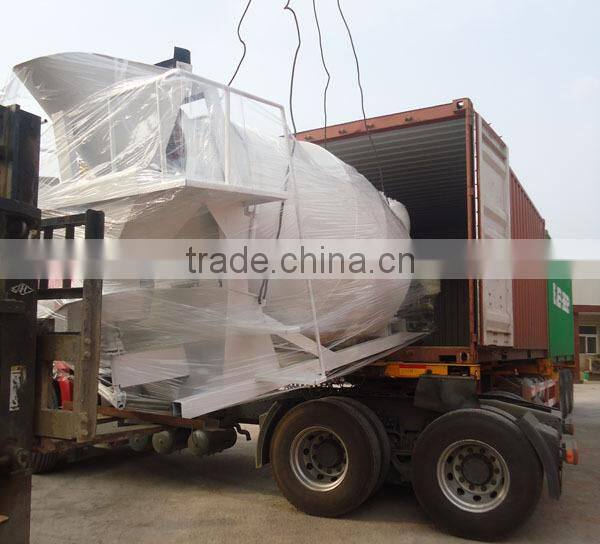

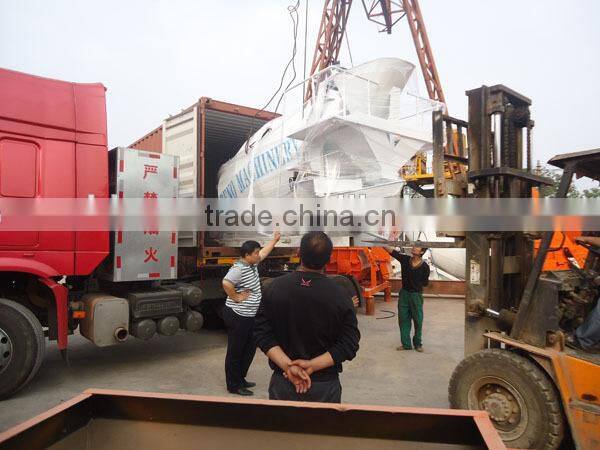

Delivery picture
