Specifications
1.Low consumption.2.High efficiency.
3.Easy operation.
4.model cement mixer truck with good quality
concrete Mixer truck uses eight M16 U-bolts, nuts and special sizing blocks which connected together with the truck's batholith and make up the concrete mixing truck.
The main purpose is to delivery the machine mixed concrete to the designated location, at the same time it can also be used as concrete mixing drum.

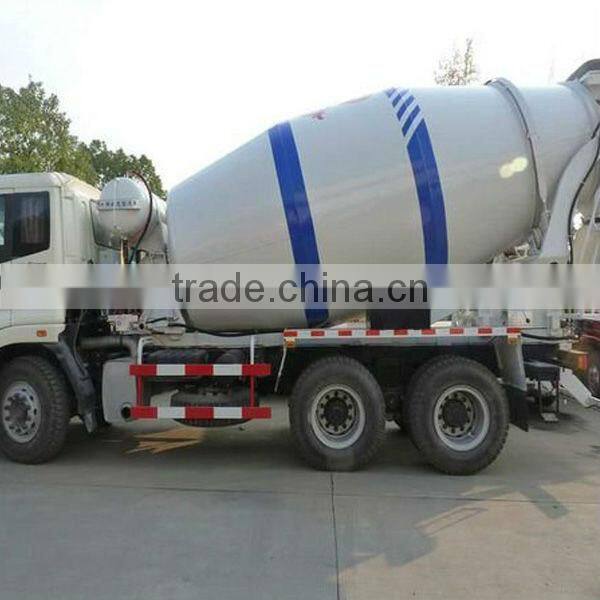

concrete mixer truck
Fetures of concrete mixer truck
The main features of concrete Mixer truck is to use diesel engine and power source, and the drum will be running on the way to designated location, to prevent water separate from concrete which will ensure the concrete's quality.
Parameters of concrete mixer truck
Type |
HYC-3 |
HYC-4 |
HYC-5 |
HYC-6 |
Mixing drum capacity(m³) |
3 |
4 |
5 |
6 |
Geometric capacity of mixing drum(m³) |
5.05 |
6.15 |
7.25 |
8.7 |
Loading ration |
0.62 |
0.62 |
0.62 |
0.62 |
Feed speed(m³/min) |
3 |
3 |
3 |
3 |
Discharging speed(m³/min) |
1 |
1 |
1 |
1 |
Axis angle |
16°±15 |
16°±15 |
16°±15 |
16°±15 |
Stirring speed(r/min) |
0-12 |
0-12 |
0-12 |
0-12 |
Inlet height(m) |
3.38 |
3.5 |
3.65 |
3.8 |
Outlet height(m) |
1 |
1 |
1 |
1 |
Mixing drum diameter(m) |
1.7 |
1.7 |
1.85 |
2 |
Outline dimensions(m) |
3.95*1.9*2 |
4.45*1.9*2 |
4.95*2*2.1 |
5.28*2.1*2.3 |
♦ Mixing tank adopts wear resistant manganese steel plate, the mixing tank through
the introduction of automatic welding automatic welding system, improve the production efficiency and welding quality more fine refinement.

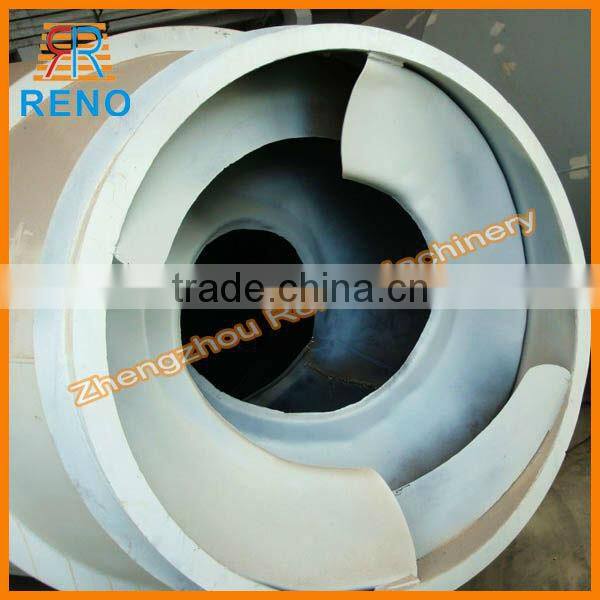

Pictures of mixing tank
Show room
