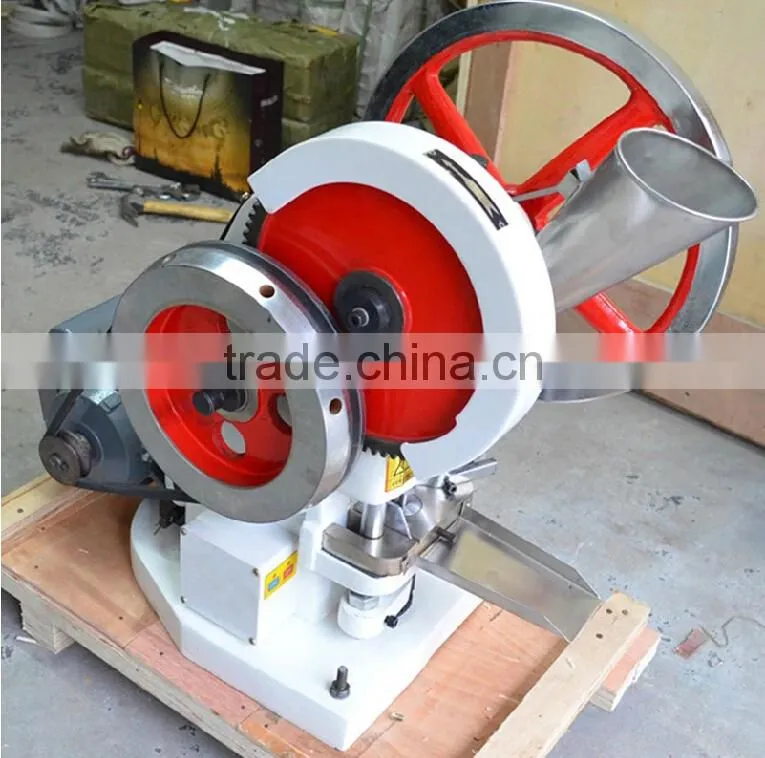

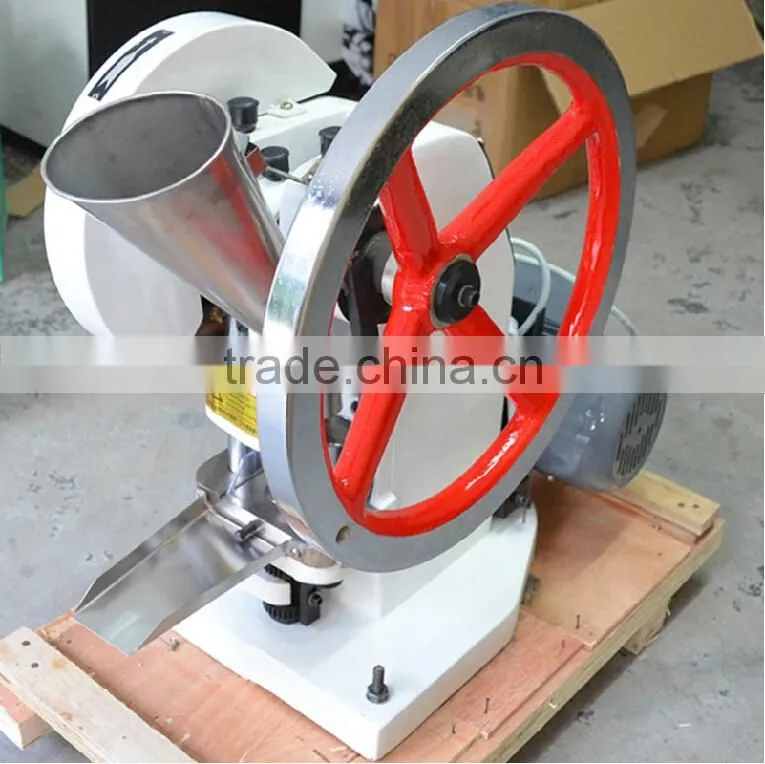

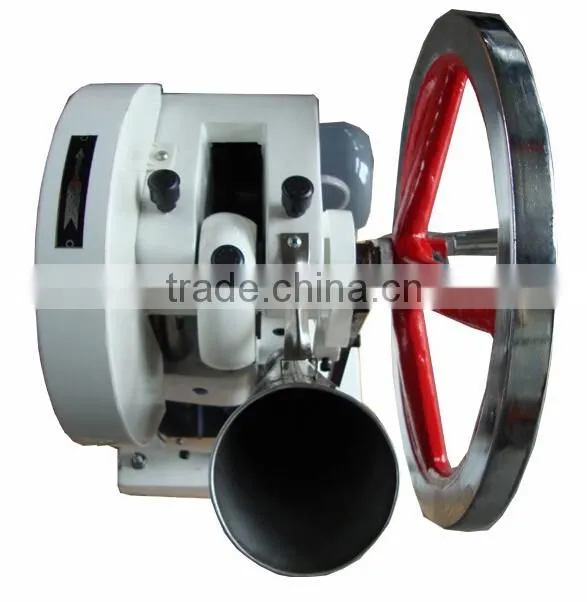

manual tablet press / Hand Punch Tablet Press
Function and features:
Small tablet press machine can press powder raw material into tablet and widly application for Pharmaceutical factory, chemical plants, hospitals, scientific research units, laboratory trial production and small batch production.
This machine has good performance, strong application, easy operation and maintain, compact-sized and light. It also can work by hand. With machine only has one pair of mould. The filling depth and the tablet thickness can be adjustable, so it can meet various industry request and is acceptable for people.
Technical parameter:
Model |
SYTDP-1.5 |
SYTDP-5 |
SYTDP-6 |
Max. pressure |
15KN |
50KN |
60KN |
Max. Tablet diameter |
φ12mm(normal) φ15mm(allotype) |
Φ20mm |
Φ20mm(round shape) Φ25mm(allotype) |
Max. Filling depth |
12mm |
18mm |
18mm |
Max. Tablet thickness |
6mm |
6mm |
7.5mm |
Output |
5500pcs/h |
4500pcs/h |
4500pcs/h |
Power |
0.55KW |
0.75KW |
1.1KW |
Speed |
1400rpm |
1400rpm |
1400rpm |
Voltage |
380V/220V |
380V/220V |
380V/220V |
Machine size |
580×450×625mm |
650× 440× 650mm |
750×380×695mm |
Machine weight |
75kg |
125kg |
165kg |
