Help CenterHot USB Rfid Nfc Writer and Reader
Related Products
Specifications
rfid nfc writer and reader1. Power on USB
2.Portable,0.25kg
3. ISO14443A
4. EM-ID 125 KHz/13.56Mhz
rfid nfc writer and reader

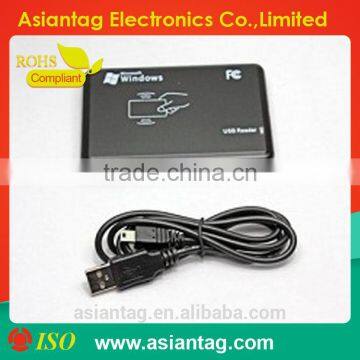

Product Introduction
l USB-Reader plug & play reader/writer device is one type simple, easy to operate, stable, low cost, and high performance
l 125K/13.56MHz contactless IC card reader/writer, it's able to read and write MifareS50 tag,S70 tag(ISO14443A), 2nd generation identify ID(ISO14443B),TI ICODE2(ISO15693),adopt with advanced plug & play, USB port without driver
l core technology(HID Protocol). Reader connect with PC through USB port, no USB driver request and easy for user to operate and maintain. Reader embedded with "watchdog" circuit to control the reliable working, this device
l support ISO14443 TYPEA/B ISO15693 protocol contactless IC tag. Reader supply along with many different platforms drive development kit and demo program for operate RF tag all functions. Further more this device has function of automatically detect tag operation. Supply various types of interface DLL (dynamic link library DLL) and development platform drive SDK, Demo Program.
Dimensions |
98 mm (L) x 65 mm (W) x 12.8 mm (H) |
Weight |
70 g |
Interface |
USB Full Speed |
Operating Distance |
Up to 50 mm (depends on the tag type) |
Supply Voltage |
Regulated 5V DC |
Supply Current |
200mA (operating); 50mA (standby); 100mA (normal) |
Operating Temperature |
0-50 °C |
Operating Frequency |
13.56 MHz |
Smart Card Interface Support |
|
Compliance/Certifications |
|
Operating System Support |
|
Animal tag readers
