Specifications
Huabo chicken poultry raising equipment1.Save feed and labor
2.with10-year use time
3.automatic orperation
Huabo environment controlled chicken poultry raising equipment
All the picture below can be clicked for more details!
- Components of Huabo chicken poultry raising equipment
| 1 | Silo feeding system |
|
Material: Galvanized sheet; Model: 1.8M,2.75M,3.05M,3.6M; Capacity:2.5T to 27T; Delivery:Auger 75,90,125; Drive Motor:380v,50HZ,0.75kw; Silo boot: one/two/three/four outlet
|
|
2 |
Feeding system | ||

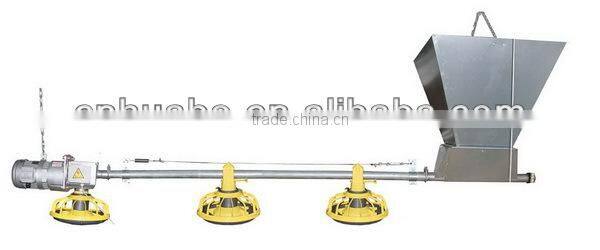

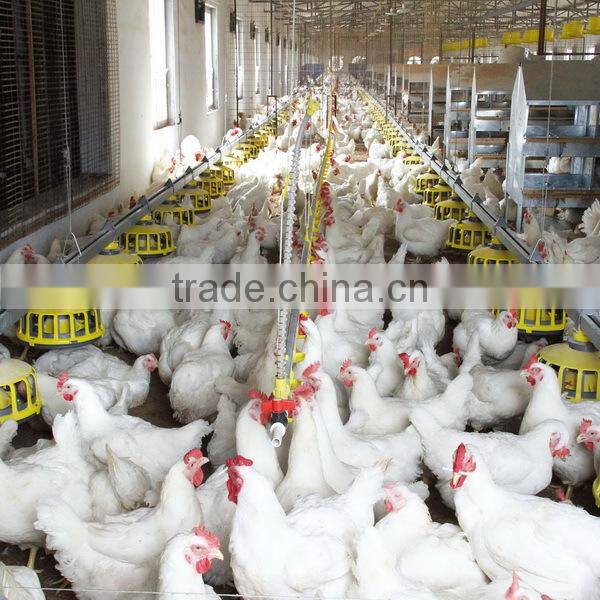

| Broiler pan feeding system | |
Feeder pan:14grills,330mm dia;40-50birds;100%PP Pan expension: 4pans/3m Delivery: 45mm diameter Auger ;450kg/h Hopper:70kg,1.0mm thickness,galvanized sheet Drive motor:380v,50hz,0.75kw Hanging system , Anti-roost system |
|
| Breeder pan feeding system | |
Feeder pan:16grills,360mm diameter;14birds;100%PP Pan expension: 1pan/0.8m ,1pan/0.85m,1pan/0.9m Delivery:PTY chain narrow Hopper:280kg, Drive motor:380v,3phase;Hanging system |
|

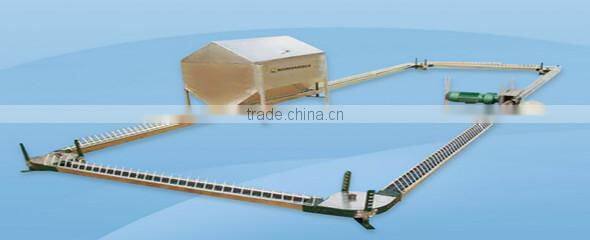

| Breeder chain feeding system | |
Hopper:120kg/280kg; Drive motor:1.5kg/2.2kw 380v; Adjustable support leg; Grille: 1.5M/Section Delivery: PTY chain wide |
|
| 3 | Nipple drinking system |
|
Nipple:360 degree action triggering;SS body, plastic shed. Pipe: PVC 22mmx22mmx2.2mm light resistant; Regulator: One outlet, two outlet Water drip cup:One arm , two arms |

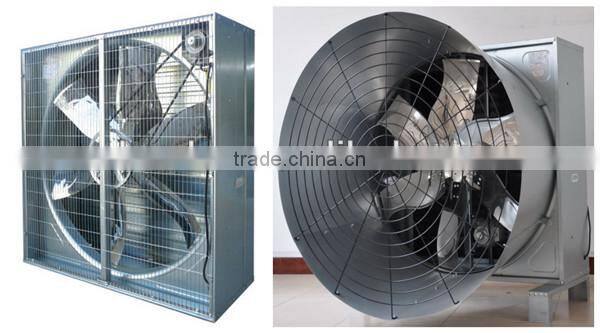

| 4 | Ventilation system | ||
| Exhaust fans | |
Model: Centrifugal box fan;Hanging fan;Shutter/Butterfly cone fan;Speed vaiable fan. Size: 24'',36'',50'' Motor: Chinese brand and Siemens Brand available Blade: Stainless Steel
|
|

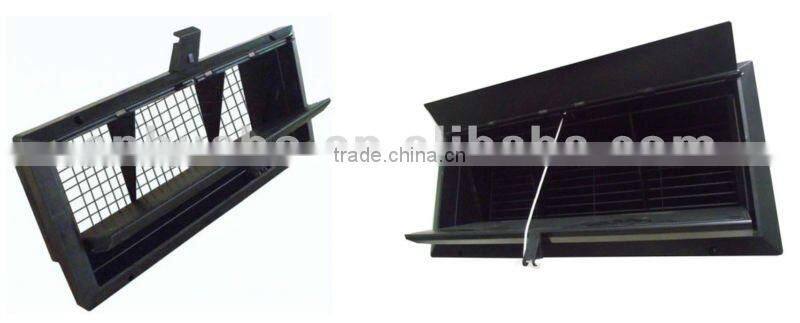

| Airinlets | |
Model:HB620, HB1100 Use: with hood type for breeder; with mesh type for broiler Winch: Manual or Auto |
|

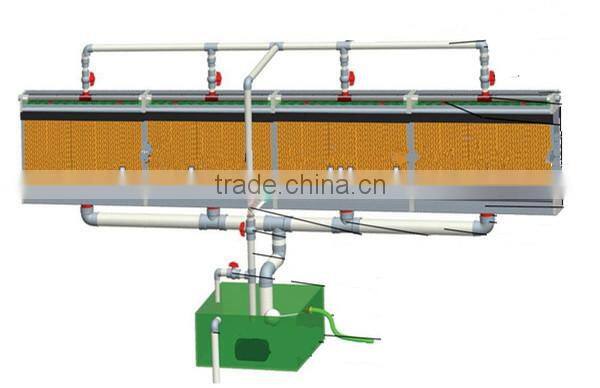

| 5 | Cooling system | |
Width:600mm Length:1500mm,1800mm,2000mm Angel:45/45 degree, 15/45 degree Water pump: 220v, 0.6kw or 0.8kw or 1.1kw |

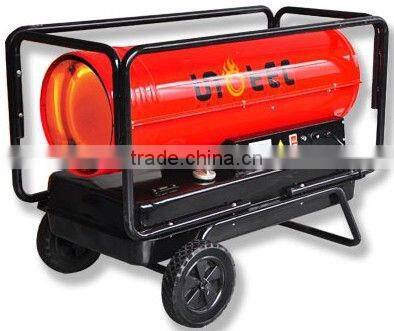

| 6 | Heating system | |
HB20:23kw output; HB40: 40kw output |
| 7 | Foggy system | |

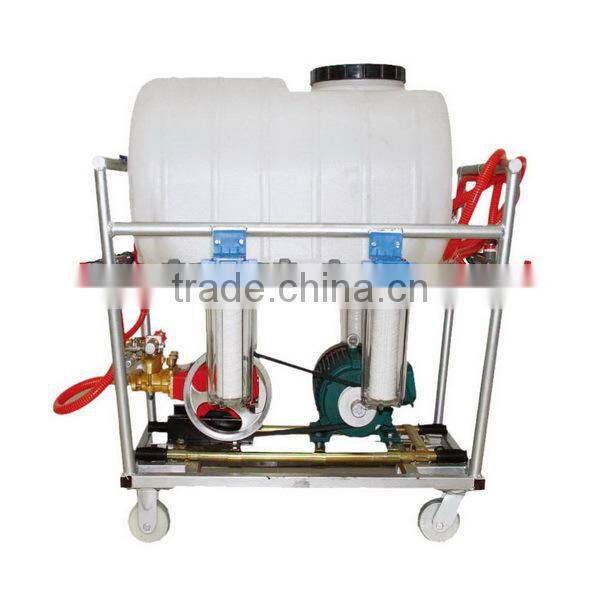

Movable sprayer handcart; Copper orifice&Pipe; High quality PE pipe |

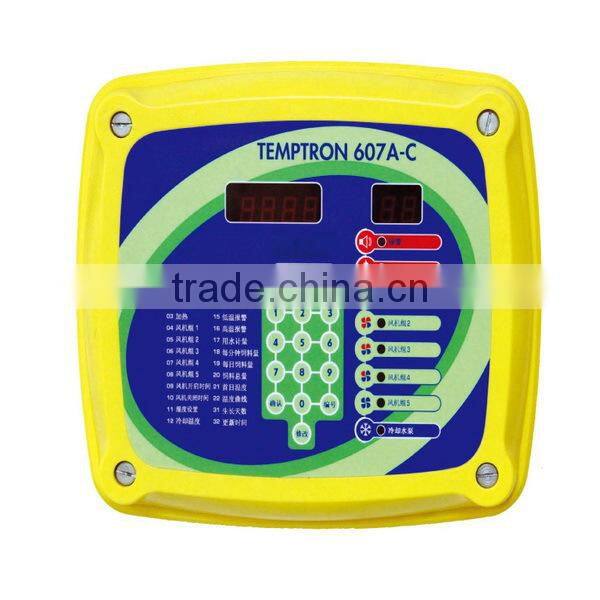

| 8 | Environment control system | |
Model: Angrologic 607A,607AC,610,616 for choice. Temperature sensor; Humidity sensor, Alarm, Main control box, Assist control box and so on. |

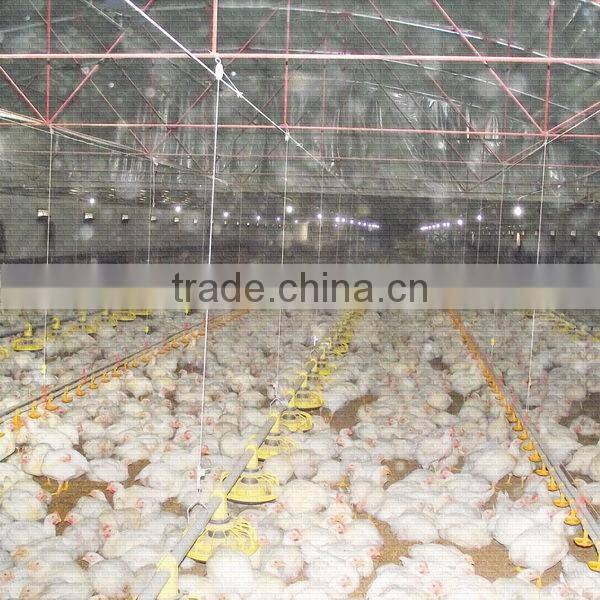

- Broiler pan feeding system- Huabo chicken poultry raising equipment

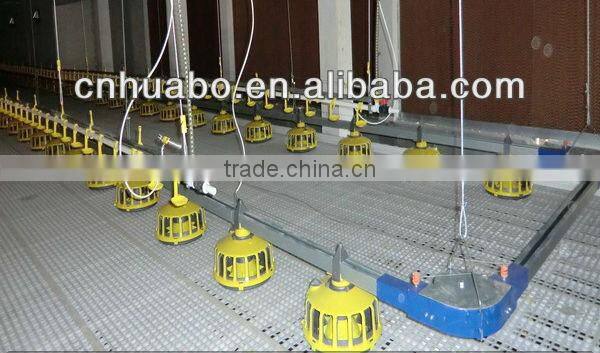

- Beeder pan feeding system-Huabo chicken poultry raising equipment

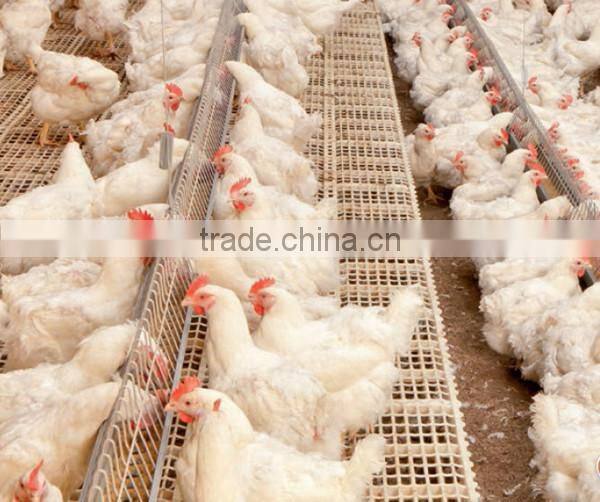

- Beeder chain feeding system-Huabo chicken poultry raising equipment
Huabo chicken poultry raising equipment
1. silo:dis assembled, spare parts in cartonbox, galvainzed sheet in bunch and in bulk;
2. feeder: feeder pan in carton box, Boiler feed pipe in bunch in bulk; Breeder feed trough in bulk; hopper in bulk;
3. Water: PVC pipe fitted with nipples in plastic bag, cups and spare parts in carton box; support pipe: in bunch in bulk;
4. Fans: disassembled way or assembled way;
5. Air inlet: HB620 4pcs per carton box; HB1100 disassembled in carton box;
6.Cooling pad: Assembled with Aluminium frame on, or disassembled;
7. Heator: in Carton box
8.Foggy system: Handcart wrapped with plastic shrink, spare parts in carton box
9.Enviroment control: In carton box;
For Huabo chicken poultry raising equipment
1. Quotation within 24hours after getting your reply!
2. Advise the most economic equipment -setting way for your chicken house!
3. All the production will be finished within 20days after getting order!
4. All the shipping documents will be expressed after shippment!
5. Always available to offer guide about installation or raising chickens!
Huabo chicken poultry raising equipment
1, Can you offer us the drawing of the chicken house with your equipment?
- Yes, customers need give us the basic idea first, like the land size for chicken house building, chicken Qty per house etc. We will email you the quotation list with the size of chicken house, all the euqipment list and prices. Once you confirmed, our engineer will finish the drawing within 2 days.
2, How about the installation?
- Usually we provide our customers all the installation gide books, which work well for most oversea market. If our customer request, one of our installation engineer can fly to give instruction. But all the related charged will be paid by customer side.
We are the professional manufacturer of poultry farm equipment. The main products inculde
1.silo system,
2.vice feeding system,
3.drinking system,
4.ventilation system,
ntrol system,
6.spray system,
7.plastic products.
