Separating Type Rice Mill — 400-1
| Application | Brown Rice / Paddy Milling |
| Production Capicity | 400-500kg/h |
| Power | 7.5KW / 12HP |
| Rotation | 900-1200RPM |
| N.W. (Single Rice Mill) | 90kg |
| Outer size | 950X480X1000mm |
| Packing size | 755x420x775mm |
| Cleaning rate | >95% |
| Rice Broken Rate | Long-grained Rice : ≤ 35% |
| Round-grained Rice:≤ 25% |

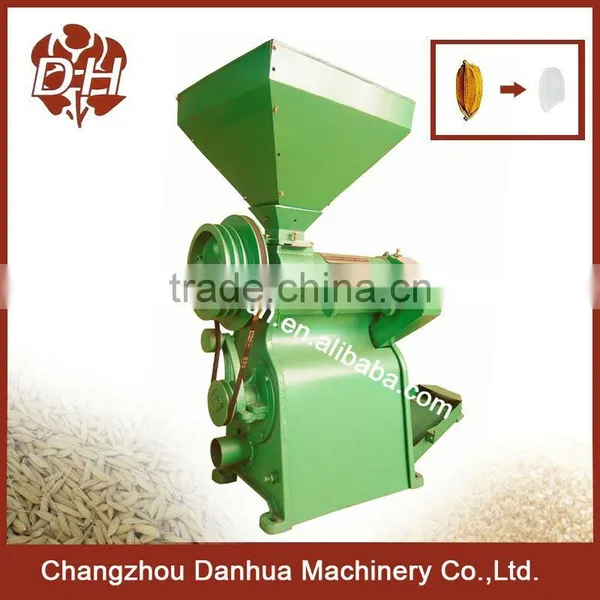

This rice mill is for husking and polishing brown paddy into polished rice with high purity.
The rice mill can automatically separate the polished rice from bran, broken rice and unmilled paddy.
The coarse bran can be remilled automatically through the cyclone and turned into fine bright rice.
A bag can be tied to the duct collector, so the milled bran will be exhausted into the dust collector and be used as chicken feed.
Diagram of the rice mill:
| Ref. No. | Name |
| 1 | Rice Mill |
| 2 | Diesel Engine |
| 3 | Base Foundation |
| 4 | Cyclone & Pipe |
To better meet different demands, part 1 to part 4 can be choosed freely.
Rice Mill Encasing Details: (1-4 related to the pic above: Diagram of the rice mill)
| Ref.No. | 1x20'GP | 1x40'HQ |
| 1 | 126 Sets | 252 Sets |
| 1+2 | 55 Sets | 110 Sets |
| 1+3 | 85 Sets | 180 Sets |
| 1+4 | 85 Sets | 190 Sets |
| 1+2+4 | 43 Sets | 98 Sets |
| 1+3+4 | 65 Sets | 150 Sets |
| 1+2+3+4 | 32 Sets | 85 Sets |
To save space and cost, we recommend that 40'HQ for the rice mill with cyclones.
The cyclones will be on the top of the rice mill wooden case, with air bubble film wrapped, no out of shape, and no paint strached.
The dimensions here help to see if there enough space to set the rice mill at your workshop.
To set the rice mill, a flat floor is needed.
Of course, if permits, a base foundation could help fix the rice mill with power engine.
Both diesel engine and electric motor can be choosed to run the rice mill.
