Specifications
1.Compact construction2.Strong ability
3.Versatile in application
4.Good pulverization and mulching
5.ISO certificate

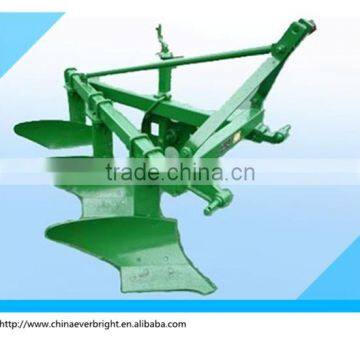

Share Plow
1L series of share plough is a mounted share plow, suitable for loam, sandy loam soils moreover dry land farming
area. it is compact in construction, and versatile in application . After plowing, the land surface is smooth and the
furrow is narrow with a good pulverization and mulching. This series of share plow is mainly divided into 20series,25series,30series,35series
Features of 1LF Series Mounted Share Plow :
1).Special resistant steel bottoms with bar points for toughest ploughing jobs.
2).Bar point bottom ensures longeerlife.
3).Bar point bottom can be extened or reversed and re-used till the last possible length.
4).The frame of plough is especially tough that can be destrosied during working in difficult
operating conditions or on soils with stones.
Specification for 1L Series Mounted Share Plow
| Mounted Share Plow | ||||
| Model | 1L-220 | 1L-320 | 1L-420 | 1L-520 |
| Name | two-furrow plough | three-furrow plough | four-furrow plough | five-furrow plough |
|
Matched power (hp) |
15--18 | 25 | 30--40 | 50 |
|
Overall dimension (mm) |
1100x600x900 | 1800x800x1400 | 2400x1000x1040 | 3000x1200x1100 |
|
Packing dimension (mm) |
1100x600x400 | 1650x600x400 | 2200x1150x400 | 2300x1150x400 |
| Weight(kg) | 50 | 85 | 148 | 166 |
|
Working width (mm) |
400 | 600 | 800 | 1000 |
|
Working depth (mm) |
180-250 | |||
| Plough body spacing(mm) | 480 | |||
| Linkage | 3 point swing I |
|||

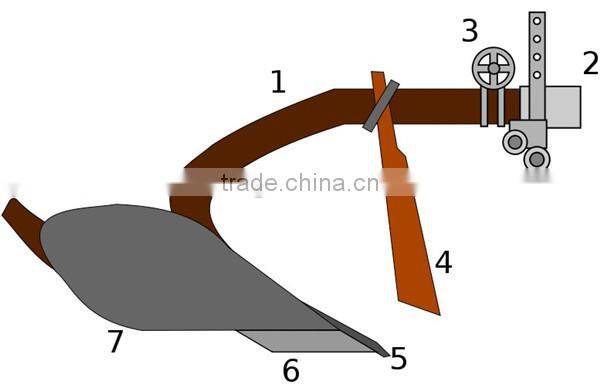

Components of a simple share plow:
1) frame; 2) three point attach; 3) height regulator; 4) knife (or coulter)
5) chisel 6) plowshare 7) moldboard

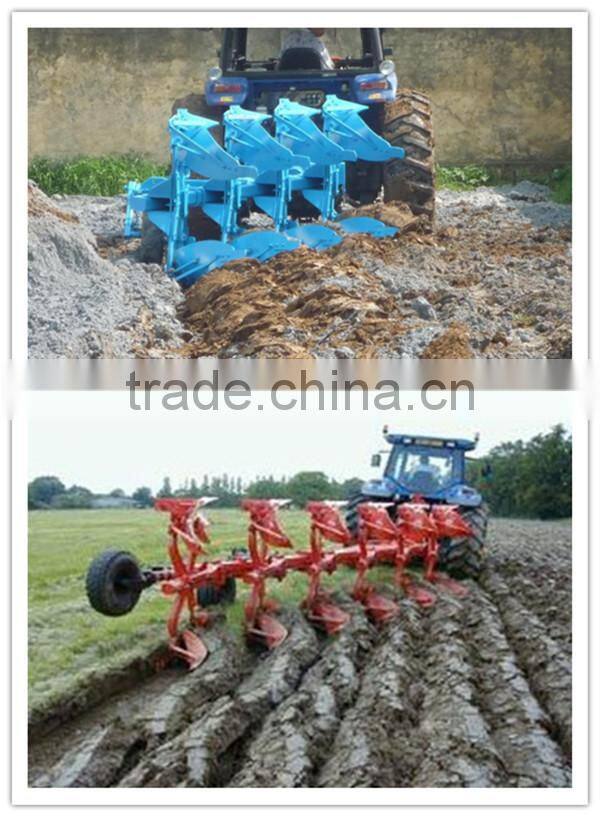

The share plough can be used in both dry and paddy land:
Company Service for share plough:
We,Shandong Everbright Trade Co.,Ltd will provide the most environment-friendly and safe share plough
with high-quality at most favorable price for the customer,together with perfect after service.
Shandong Everbright Foreign Trade Co., Ltd is located in Dezhou city, Shandong provice, China, close to
Qingdao and Tianjin Port, nearby Jinan, Qingdao, Tianjin and Beijing air port,therefore the transportation
is very convenient. Our company is founded in the year 2003. During years of development, we have set up
mature international market all around the world and have become one of the leading exporter in China.
At the same time, we are highly appreciated by our customers due to the good qulity and perfect service.
--Payment Term
T/T, Western Union, L/C, Escrow, D/P, D/A, Paypal, can be negotiated.
--Delivery Time
We will send you the potato harvester within 3-15 working days after receive your down payment.
--Guarantee
One years. Malfunctions which are caused by machine-self and quality will be responsible for our
manufacturer.
