Specifications
1.Compact construction2.Strong ability
3.Versatile in application
4.Good pulverization and mulching
5.ISO certificate
1L Series Mounted Furrow Plough
Introduction for 1L Series Mounted Furrow Plough:
1L series of share plough is a mounted share plow, suitable for loam, sandy loam soils
moreover dry land farming area. it is compact in construction, and versatile in application .
After plowing, the land surface is smooth and the furrow is narrow with a good pulverization
and mulching. This series of share plow is mainly divided into 20series,25series,30series,
35series
Features of 1LF Series Mounted Furrow Plough:
1).Special resistant steel bottoms with bar points for toughest ploughing jobs.
2).Bar point bottom ensures longeerlife.
3).Bar point bottom can be extened or reversed and re-used till the last possible length.
4).The frame of plough is especially tough that can be destrosied during working in difficult
operating conditions or on soils with stones.
Specification for 1L Series Mounted Furrow Plough
| Mounted Furrow Plough | |||
| Model | 1L-225 | 1L-325 | 1L-425 |
| Name | two-furrow plough | three-furrow plough | four-furrow plough |
|
Matched power (hp) |
25 | 40 | 50 |
|
Overall dimension (mm) |
1300x1300x500 | 1710x1150x1170 | 2300x1200x600 |
|
Packing dimension (mm) |
1300x1300x300 | 2100x1250x350 | 2300x1150x400 |
| Weight(kg) | 135 | 160 | 210 |
|
Working width (mm) |
500 | 750 | 1000 |
|
Working depth (mm) |
180-250 | ||
|
Plough body spacing (mm) |
480 | ||
| Linkage | 3 point swing I | ||
Components of a simple drawn plow:
1) frame; 2) three point attach; 3) height regulator; 4) knife (or coulter)
5) chisel 6) plowshare 7) moldboard

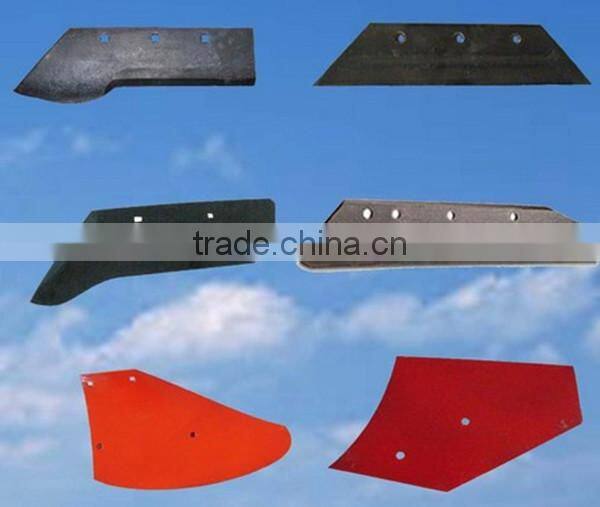

All kinds of plough blade:
The share plough can be used in both dry and paddy land:
If you have any inquiry,pls contact us as follows:
