Product Details
Condition: | New | Brand Name: | DAYU | Model Number: | DY-23 |
Material: | Plastic |
Product Description
Products Description:
It is a new type of drip irrigation product with unique design. PC drippers are welded inside PE pipes or installed on the pipes. Thus turbulent flow can be formed at the end of the pipes.
High-efficient and reliable drip tape for modern agriculture. PC emitter ensures the turbulent flow in complex terrians.

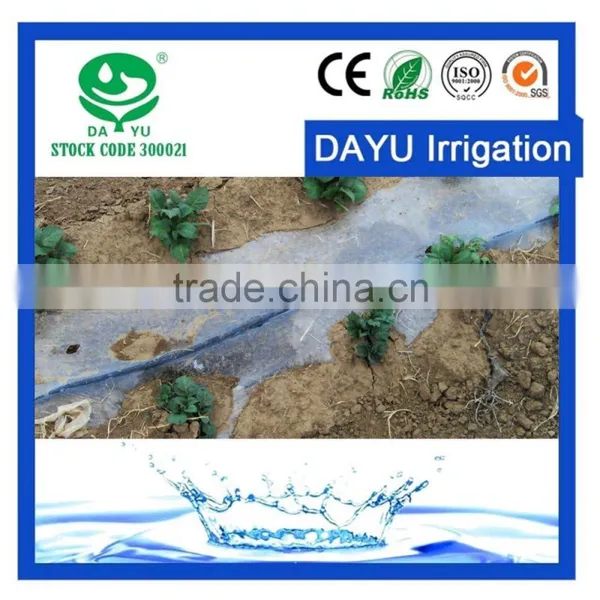

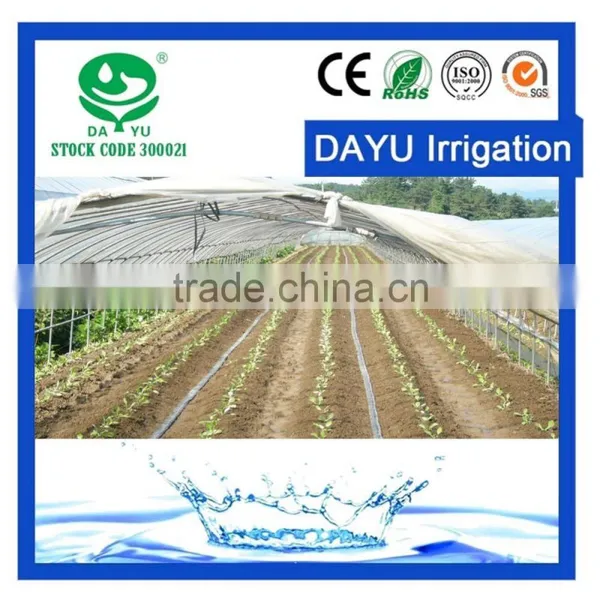

Products Images:
ADVANTAGES
- The internal structure of dripper adopts elastic diaphragm to regulate pressure and control flow;
- The lifetime is effectively lengthened by injecting molded silicone membrane;
- The special designed flow path can effectively improve self-cleaning and anti-clogging capacity;
- Anti-UV materials are suitable for all kinds of weather conditions;
- High mechanical strength, corrosion resistance;
- Ensure the uniform, precise and consistent irrigation, in the range of compensated pressure.
Technical Data :
Nominal Diameter (mm) | Nominal Wall Thickness (mm) | Max. Working Pressure (kpa) | Dripper Interval (mm) | Rated Flow rate (L/h) | Laying Length(m) |
12 |
0.8 1.0 1.2 1.3 1.4 |
50-400Kpa |
100-2000 | 0.8; 1.2; 1.3; 1.6; 2.0; 3.0 |
20~600
|
16 | |||||
18 | |||||
20 |
FEATURES :
- Can be Laid on the ground or buried;
- Available in different flow rates;
- Suitable for different terrain and slope of irrigation area;
- Working pressure:50-450Kpa
- Suitable for row crops in the mountain area or long distance,orchards, vineyards and windbreak.
- Technical parameters comply with the national standard GB/T 19812-2005
