ADVANTAGES
l The dripper is molded for one time;
l The dripper has wide flow passages with its unique filtering area;
l The dripper has spacious filtering areas and wide flow channel section for clogging resistance;
l Turbulent flow and the deviation of even water leakage is less than 5%;
l The dripper is directly welded inside the pipe, with slight pressure loss and high irrigation precision.
FEATURES
l Different wall thicknesses are suitable for different ages and environment;
l Available in different flow rates: 0.8~3.0 l/h and dripper intervals: 100~1000 mm, to meet the needs of different crops;
l Convenient installation, transportation, and use;
l Low engineering cost;
l High water-saving efficiency;
l Working pressure: 40~120kpa;
l Suitable for field crops sowed in rows, big greenhouse, fruit trees or grape crops;
l Complies with the standard ISO 9261:1991 (GB/T 17188-1997)
SPECIFICATION
|
Nominal Diameter (mm) |
Nominal Wall Thickness (mm) |
Max. Working Pressure (kpa) |
Dripper Interval (mm) |
Rated Flow rate (L/h) |
Laying Length(m) |
Average Flow rate of Dripper (L/h) |
12 |
0.18 0.2 0.4 0.5 |
150
|
300 400 500 1000 2000 |
3
|
150~450
|
2.75
|
16 | ||||||
18 |
0.6 0.8
|
250
|
6 |
5.6 |
||
20 |
8 |
7.6 |
||||
|
1.0 1.2 |
400 |
10 |
9.5
|
||
|
1.3 1.4 |

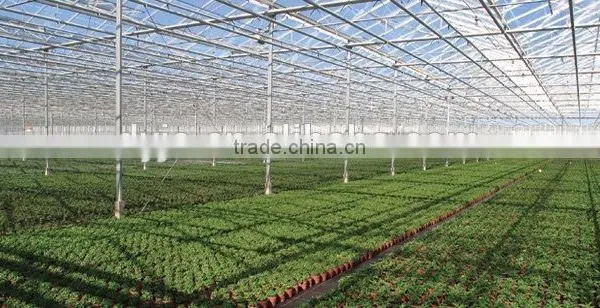

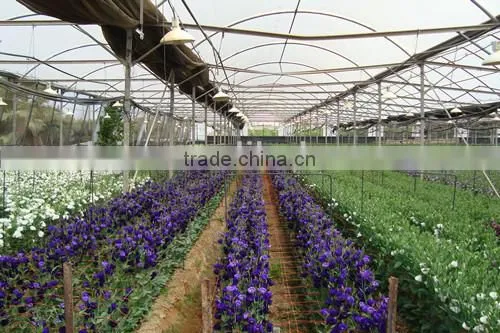

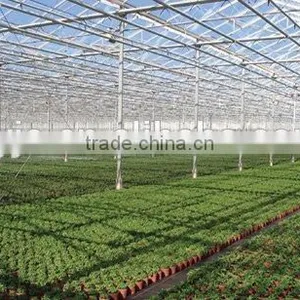

Drip irrigation tape used in greenhouses

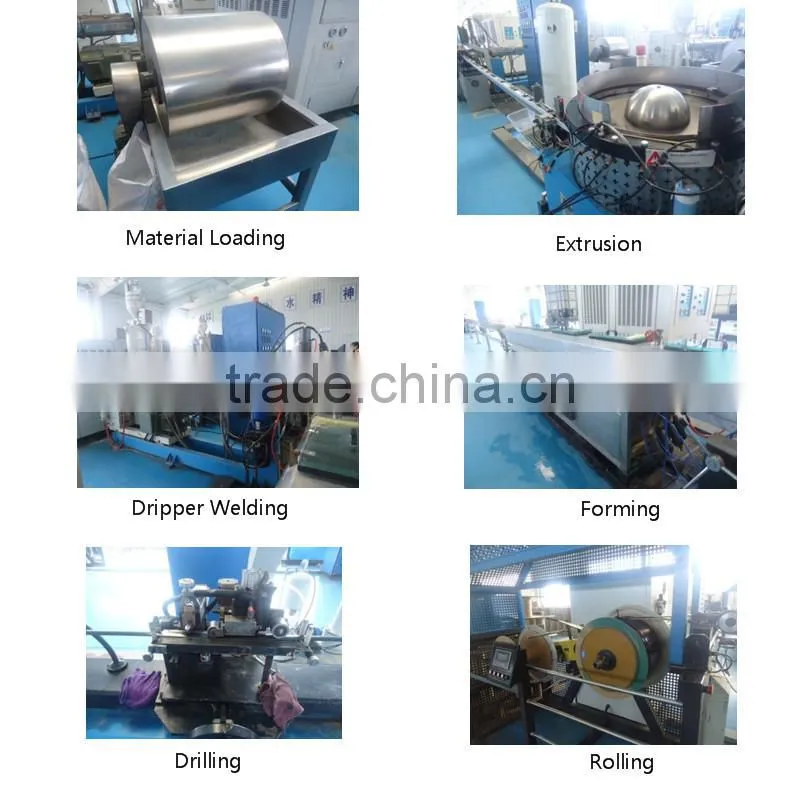

We have strict production processes as follows:

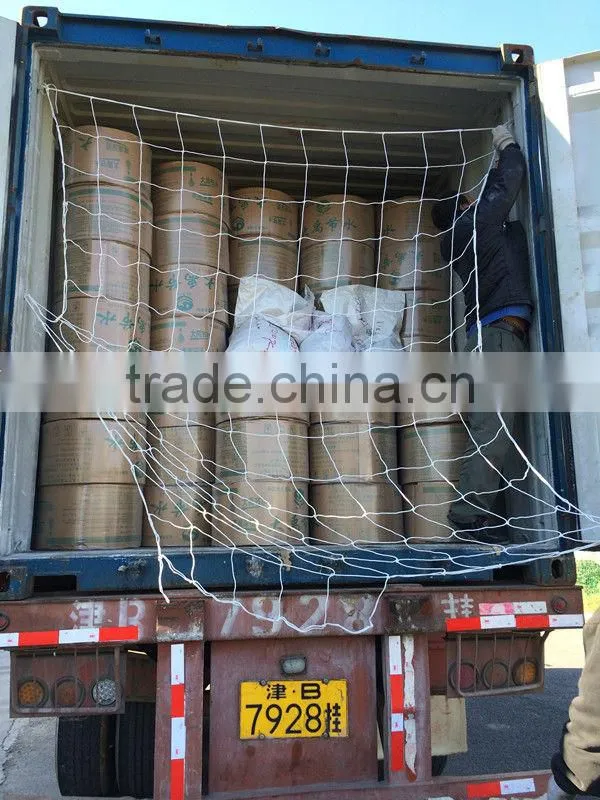

The Loading of drip reels in containers

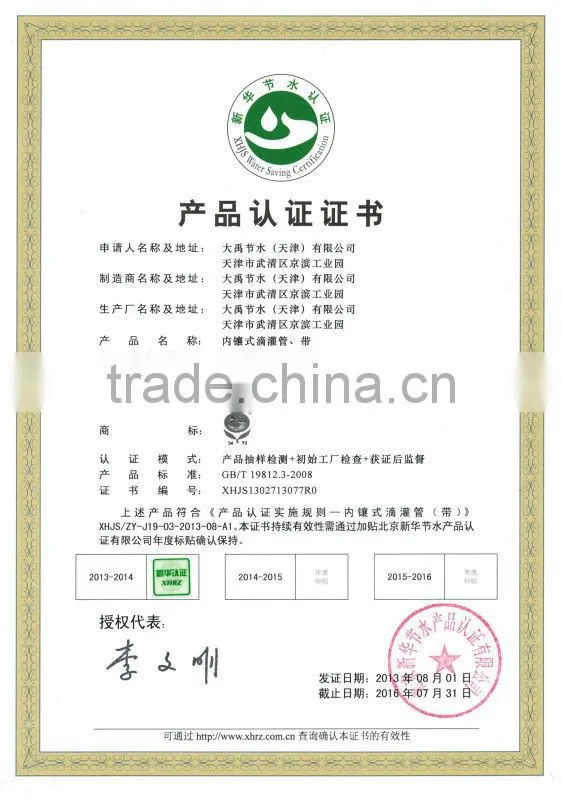

We always insist on the "Quality First" principle to guarantee the highest customer satisfaction. We have been awarded the following certificate for compliance with the standard ISO9001:2008, ISO14001:2004 and OHSAS18001:2007.
