Introduction about DAYU BRAND's drip irrigation tape:
Dripper/emitter---inlay in drip tape,it is moulded through injection molding in one,with its own filtering
section,and has new-style wide&long flow channel,good performance of anti-clogging.
Drip tape/pipe is made of high quality of raw material purchased from PetroChina and Sinopec.
Fully turbulent flows in the channel,uniform outlet,flow rate different is less than 5%.
Anti-corrosion,anti-aging.
Dripper is integrated with drip tape,install and use conveniently,small pressure,high irrigation
precision.Small frictional head loss,long lateral laying length.
Light weight,easy layout and collection.
Production ability:15*40’HQ containers per month.
Widely be applied to sugarcane, fruiter,tea,floriculture,big field row crops,greenhouse,windbreak...

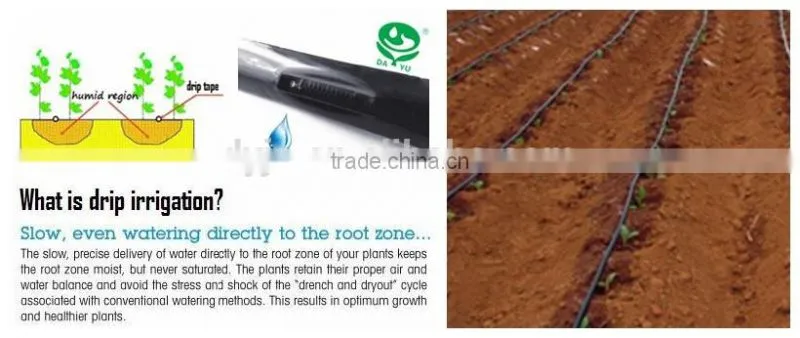

Characteristics of drip irrigation:
1,Water-saving;
Duly watering according to demand of crop,water is delivered through pipeline completely,humid region
is only the soil near the root of crops.There is no movement for water in the air,no wet on the leaves
surface,also no evaporation outside the effective wet area,therefore the loss of irrigation water is reduced markedly.
2,Fertilizer-saving;
It is very convenient to fertilize if combining with irrigation.That is to pour the dissolved chemical fertilizer
into irrigation system,combine the chemical fertilizer with irrigation water,so fertilizer nutrient is applied to the root of crops directly and evenly.As it is only small part of area control,less leakage of water and fertilizer,consumption of chemical fertilizer is saved and pollution reduction.
3,Labor-saving;
Drip irrigation system is controlled by valves manually or automatically,and combination with fertilizing,
therefore the input cost of labors is saved;And micro-irrigation is for small part near the root,most of land
surface keeps dry,weeds is reduced,this makes less cost on herbicide and labor on weeding;Fertilizer and
pesticide together with irrigation water is conveyed to the soil near the root through drip tapes,without human operation.
4,Energy-saving;
Working pressure of drip irrigation emmiters is 50~300Kpa,much lower than sprinkling irrigation,thus
it saves water compared with land surface irrigation,so drip irrigation reduces the consumption of energy.
5,Pest-reducing through controlling temperature&humidity on the land surface;
The large amount of irrigation water is for traditional furrow irrigation in greenhouse,the land
surface keeps wet in a long time.This causes quick fall of land temperature quickly and slow rise,
evaporation increasing,very high humidity inside of greenhouse,then it results in pest and disease attack.
As drip irrigation is localized wet,high of soil keeps dry on the land surface.To adopt drip
irrigation under plastic film,that is to lay drip tapes under plastic film,it will be better results.
6, Strong adaptability to edaphic,effectively in any difficult terrain condition.
The drip irrigation deliver the water to the soil near each crop through adopting pressure pipeline,it works effectively in any difficult terrain condition.
|
Diameter (mm) |
Wall Thickness (mm) |
Dripper spacing (m) |
Nominal Flow (l/h) |
Working Pressure (kpa) |
Lateral Length (m) |
|
12 16 18 20 |
0.18 0.2 0.3 0.4 0.5 0.6 0.8 1.0 1.1 1.2 |
0.1-2.0
|
0.8 1.38 2.0 3.0 |
50-300 |
90~150 |
80~130 | |||||
70~120 | |||||
60~110 | |||||
60-100 | |||||
Note: the dripper spacing can be designed within 0.1-2.0m according to the customer’s demand. | |||||

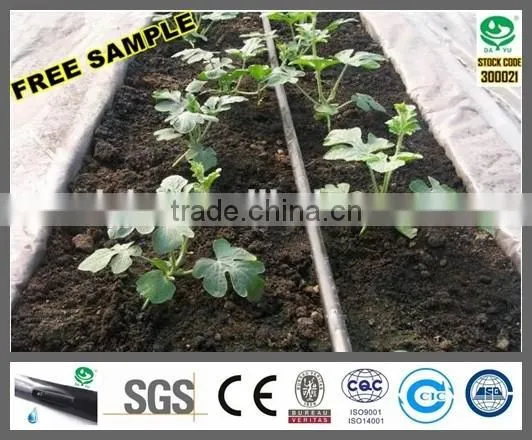

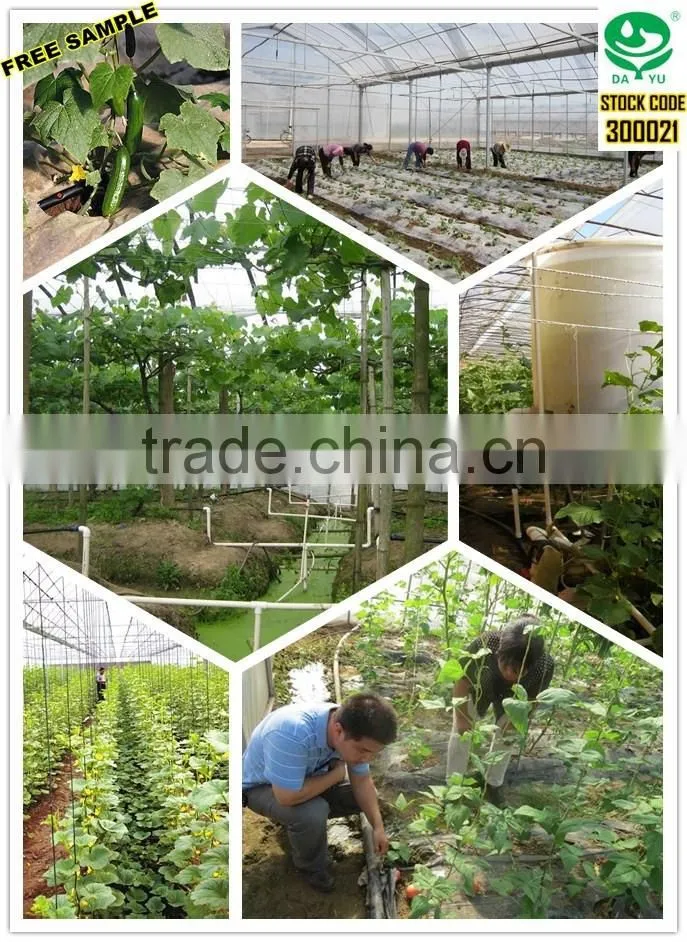

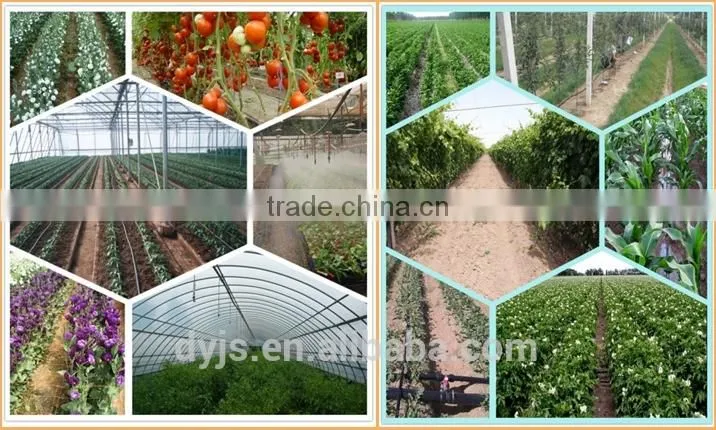

REAL SHOT OF DAYU GREENHOUSE PLANTING DRIP IRRIGATION PROJECT

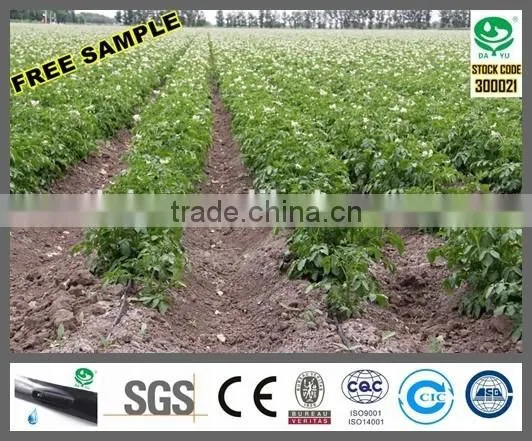

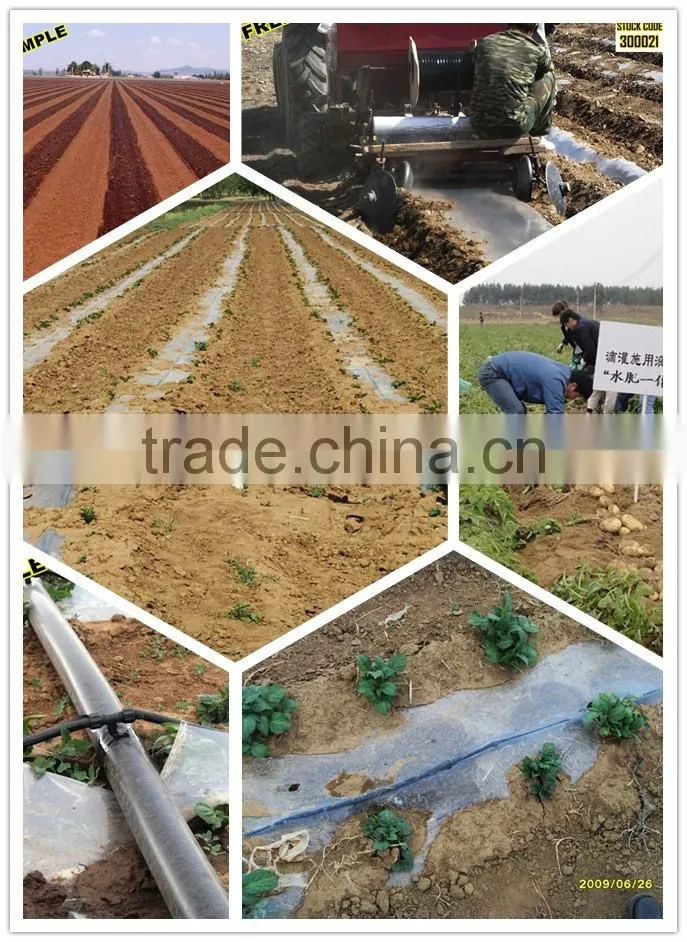

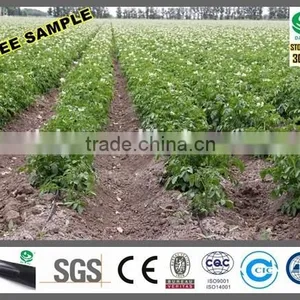

REAL SHOT OF DAYU POTATO PLANTING DRIP IRRIGATION PROJECT

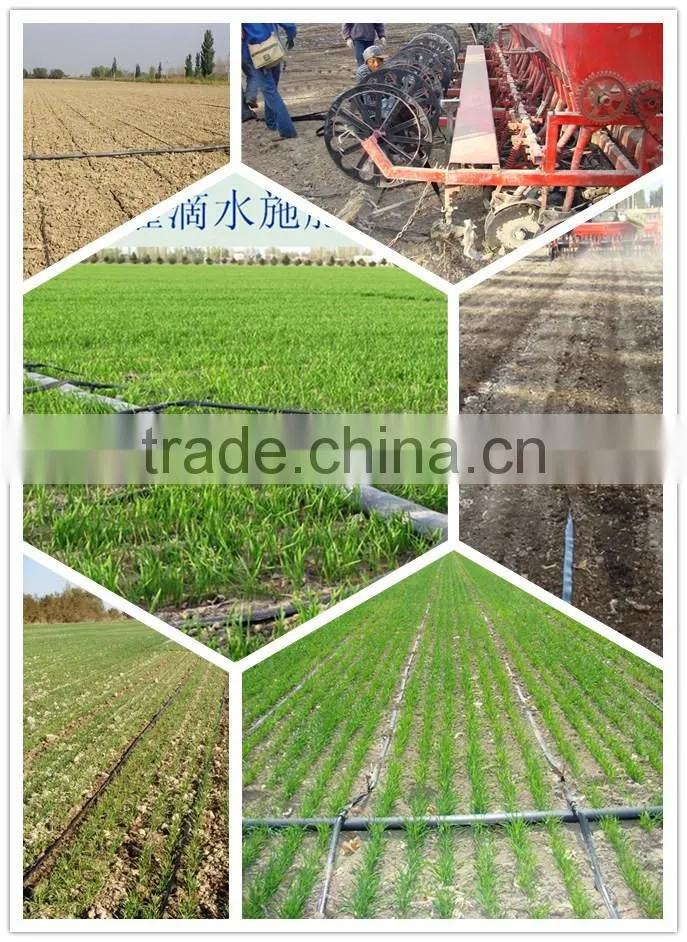

REAL SHOT OF DAYU WHEAT PLANTING DRIP IRRIGATION PROJECT
