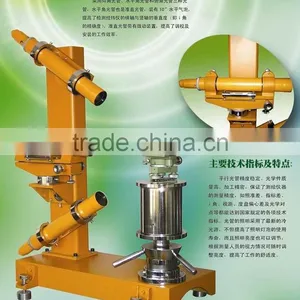

Optical Collimator System .Optical Collimator System OCS-3 is designed for checking and adjusting Automatic Levels.Optical Collimator System
Model: W420-3T

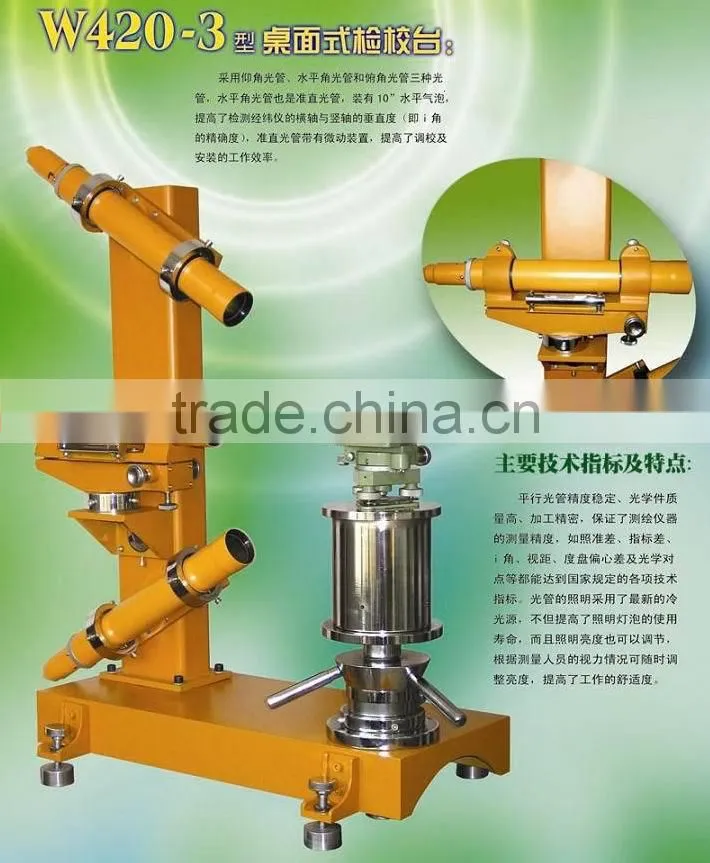

Optical Collimator System W420-3T is newly designed for checking Automatic Level, Optical Theodolites, Electronic Theodolites, Total Stations and other Optical Levels.
Model |
W420-3T |
Collimator number |
3 pcs elevation angle, horizontal angle, angle of depressionofthreecollimator |
Collimatorlens barrellength |
515 mm |
Effective Aperture |
55 mm |
Focal Length |
420 |
Accuracy (reticlegridvalue) |
20 " |
Parallellighttubebiggestadjustment range |
horizontal axis≥ 30'vertical axis ≥30' |
Set the angle |
± 30 ° (tolerance range ≤30') |
Visualviewing distance |
15to30cm |
Liftsthemaximumoperating range |
30cm Equippedthroughaperturedetection, opticalpair. |
Lifts Max Weight |
40kg |
Magnification |
5.7X~7X |
Field of View |
10°20' |
Resolution |
3 " |
Calibration station dimensions |
880 mm high x 900 mm long x 450mm wide |
Sensitivity of Plate Bubble |
8"/2mm |
Supply Voltage |
3.4 V ~ 4.2 V; 2.1W |
Min. Graduation |
30" |
Shortest Stadia |
=2m |
Angle between two Tubes |
30°±15' |
Switching power supply |
I = 10A |
Source illumination |
Cold light source (the strength of the degree of fine-tuning) green, white |
Collimator Net Weight |
90 kgs |
