chicken slaughter defeathering machine
Specification:

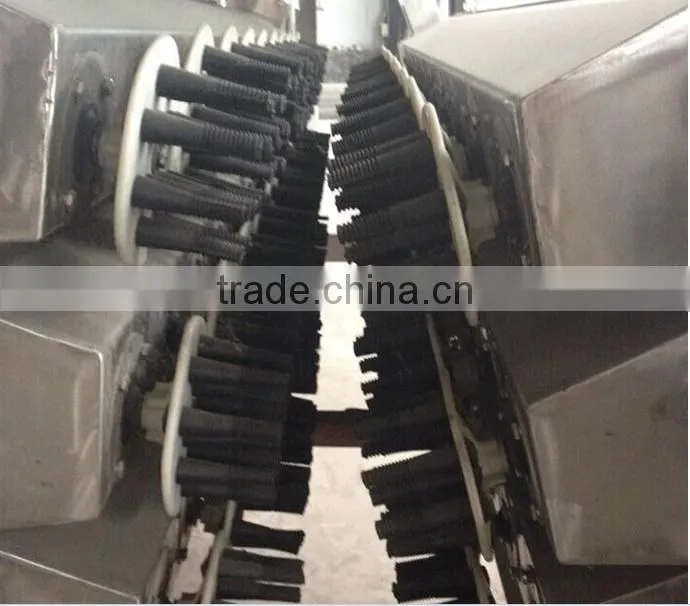

This plucker is dedicated device for chickens ,there are 4 main parts: Depilation, regulation section, guide part, spray part.
Principal part is stainless steel 304
Shape Size:4300*2350*2350(approximately)
De-feather Machine consists of four boxes .Each line has 16 plates .Total 6 lines with 96plates
The frame adopt stainless steel material.stable transmission and Flexible and convenient for the working box.The lifting equipment flexible and convenient to adjust,easy to clean and maintain.guide mechanism can let the poultry into the machine smoothly and relative localization.The cleaning mechanism can wash away the feather anytime,it is the best equipment to process for the chicken and other poultry.
The method to change the rubber tile of the A-line shape depilating machine
1.take apart the block gine,hold on the block gine which need to take apart use the left hand.Use right hand hold a middle size slot type screwdriver ,put it in the side of the block gine and then pry up ,can take out the bad block gine.
2.Install the block gine,Left hand hold the block gine which need to install,Right hand hold the middle size slot type screwdriver,put the block gine in the corresponding holes .use the slot type screwdriver according the side put the bock gine in the holes and finish installation.
| 1 | Killing conveyor line |
Chicken will be processed on this rail, it is main part for the main slaughter plant Production line. The distance of hangers is 8inch. Stainless steel chain, guide rails, stainless steel hooks, nylon hanger |
| 2 | Electric tunning machine |
fiberglass reinforced plastic reliable and stable electrical devices L=1.5METERS |
| 3 | Scalding machine |
This machine is used to scald the carcass of the chicken to remove the feather easily; Size:4000mm×950mm×2400mm. Thickness of Board: 2mm,Upper Cover Thickness :1.2mm,Supporting Leg Thickness:2mm. Temperature between 58C°-61C° of the water use blower system and impact pressure system make to produce highly scalder results. Power:6KW |

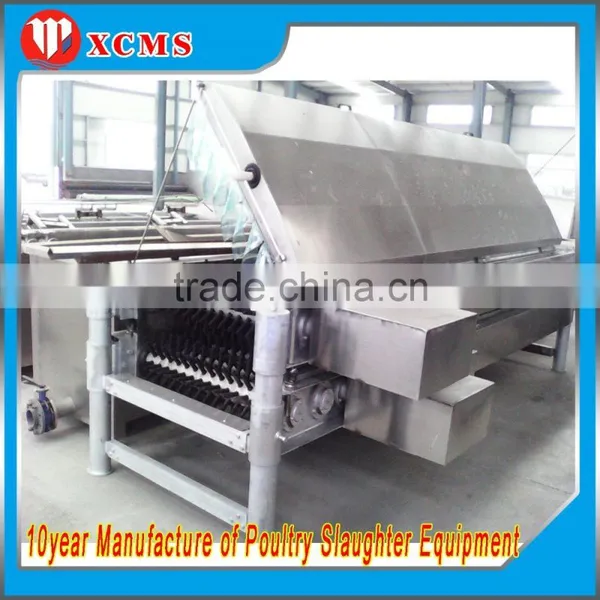

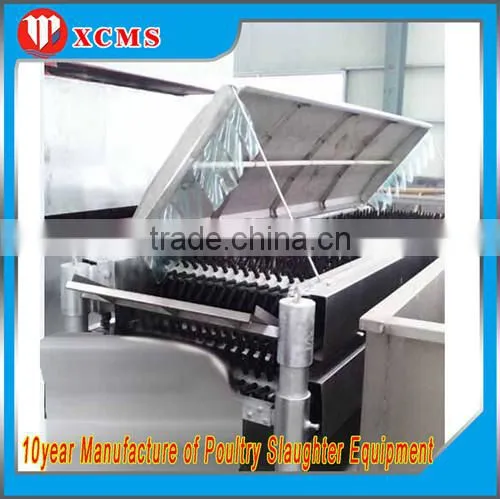

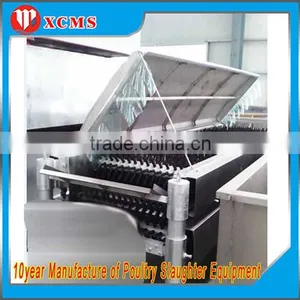

| 4 | A Frame Primary Plucker |
This plucker is dedicated device for chickens ,there are 4 main parts: Depilation, regulation section, guide part, spray part. Principal part is stainless steel Shape Size:3350*2350*2350 De-feather Machine consists of four boxes .Each line has 12 plates .Total 6 lines with 72plates. Power :3KW *6=18kw/set |
| 5 | Automatic cut head machine |
this equipment use to auto cut the head on production line Principal part is stainless steel |
| 6 | Automatic cut claw machine |
this equipment use to auto cut the feet on production line Principal part is stainless steel this equipment use dedicated accurate chuck location had high quality feet |
| 7 | Unloading claws device |
this equipment will be auto take off the feet from production line All body is stainless steel |
| 8 | Drivng device |
This machine is to run the whole hang rail including: motor , reducer , brackets and other drive components Power:2.2KW By inverter power, run more smoothly. |
| 9 | Frequency converter |
Frequency Controlling Box.
Stainless steel Box
3.7kw
|
| 10 | Tension device |
To control the convey rail length and tight Stainless steel structure |
| 11 | Spiral precooling machine |
This device can replace the precooling line to precooling the chicken carcass
This machine used to low down the temperature of carcass to keep the carcass good-looking and keep fresh in the forward process.
The Thickness of the tank made of 3 stainless steel
Spiral Pushing Device is melted by 2mm thick stainless steel.
Power 5.2kw/set
ONE sets of Fan to make bubbles in the water in the tank efficiently so that improve cooling result and clean the carcass too
Shape Size:L=5000*2160*H Buyer Also Need To Prepare cold Water Or A Piece Of Ice MachineBuyer prepare workspace |
There are something i need to conform with you ,if you are interested in our slaugther machine line ,then we will send you a quotation
1. Have you built the slaughtering line now? Please e-mail the drawing if you have.
We can make the plan based on the space of your workshop.
2. How many square meters of your production room ?
3. Do you need to cut the heads & feet of chickens ?
4. The chickens heads & feet to eat or make the animal feed ?
5. what is the final products do you need ? whole chicken,portion parts/split or others' products ?
6. Voltage/frequency also need to be considered. Please reconfirm your power supply should be 380V/50HZ/3P
7. The biggest slaughter capacity every day?
8. About the weight of chickens slaughter ?
9. Do you need our engineers to supply the professional instruction on site for the equipments installation.
Flow Diagram
Machine components
Packaging :wrapped in wrapping film before packing which is to avoid moisture on the sea ,this machine is put in wooden/iron crate based on good protection purpose and export standard .
Delivery Detail:15-30 working days
