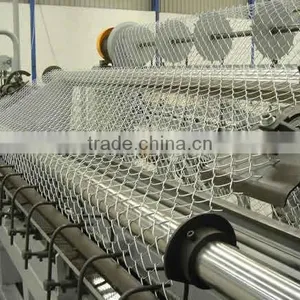

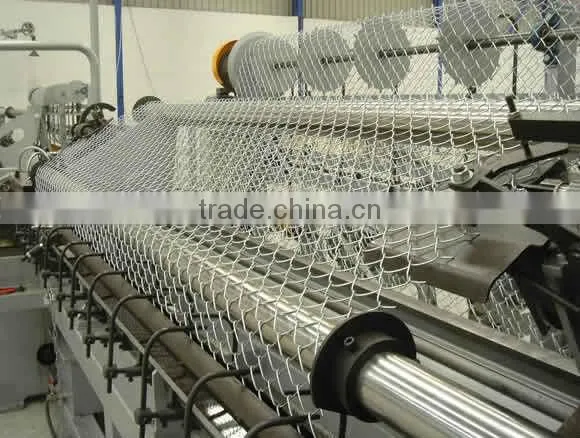

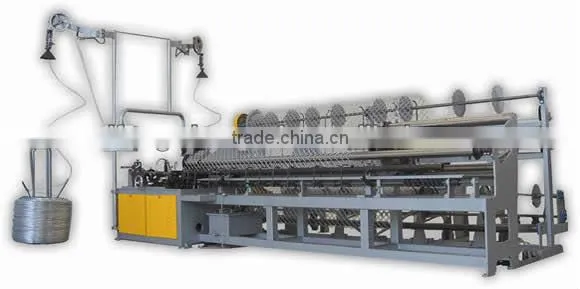

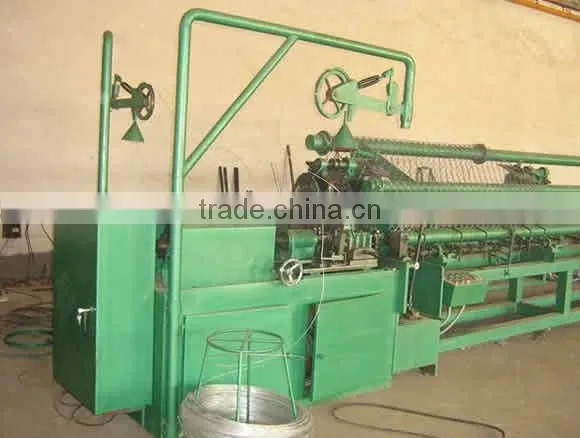

chain link fence machine

Specifications

we supply some types of chain link fencing machines, such as multi-function, semi-automatic, full-automatic chain fence machine

 three kinds of chain link fence machines

1.Multi-function chain link fencing machine

1.Dimension: length:3200mm
width:750mm height:850mm.
2.Maximum working platform: 2000mm
Maximum weaving width:2000mm.
3.Maximum mesh size: 200 x 200 mm
Minimum mesh size: 4 x 4 mm.
4.Maximum wire diameter: 4.0mm
Minimum wire diameter: 0.4mm.
5.A-machine power:1.5kw
B-type machine power:0.8kw.



2.Semi-automatic Chain Link Fence Machine

This type machine is easy to operate and control.
1. Dimension: length:2.9m width:0.57m height:0.85m.
2. Maximum working platform:8000mm.
3. Maximum weaving width: 4.0m (Can be customized based on customer need).
4. Maximum wire diameter:4.0mm.
Minimum wire diameter:1.0mm.
5. Power:1.1KW.
6. Productivity: 60-120 square meters / hour.
7. Weight: 0.28T.

3.Full-automatic Chain Link Fences Machine

1.Dimension: length:3.6m width:2m height:1.68m.
2.The preparation of aperture:8mm-100mm.
3.Productivity: 60-120 square meters / hour.
4.Wire diameter: 1.0mm-4.0mm.
5.Wire standards with: GB3081-82 YB544-65.
6.Wire material: B 1 F-B 3F.
7.Mesh width: 0.6m-2m.
8.Length: Optional.
9.Power: 1.5kw-4.0kw.
10.Weight: 1.9T.

If you need,please contact with me.
