Manufacturer Complete Poultry Cattle Feed Plant Equipment

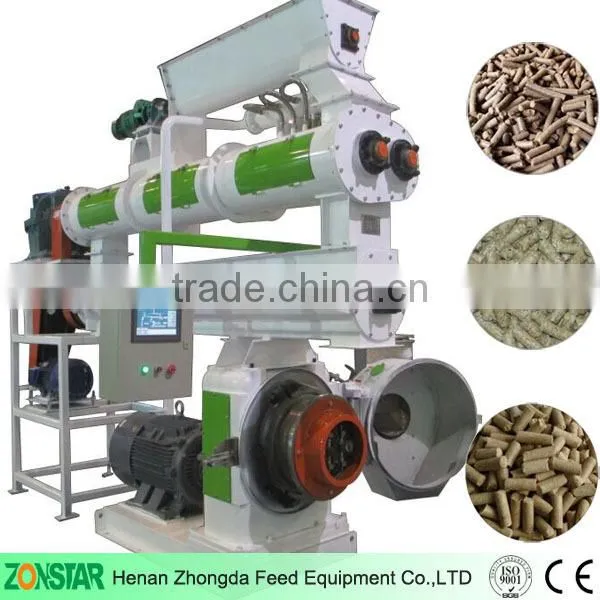

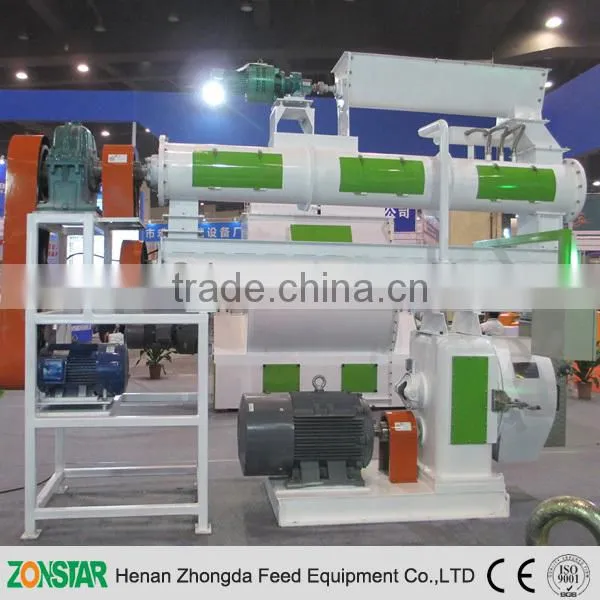

Animal Food Pellet Making Machine Features
1.Feeder and conditioning device, the feeding chute adopt stainless steel material, durable;
2.Feeding system adopts electromagnetic speed regulating control, speed control, convenient and full capacity to adapt to the different material requirements;
3.Security, has a strong magnetic magnet and overload protection device such as a safe and reliable;
4.Compact structure, beautiful appearance, high yield, less consumption, easy to use, maintenance and quick.
5.Siemens motor, NSK/ SKF bearing,tomatic Lubrication System.
6.Host drive with high precision gear drive, ring die adopt anchorear type and disassembly is convenient.
Technical Parameters of Animal Food Pellet Making Machine
Model |
Power(Kw) |
Capacity(T/H) |
Power of conditioner (Kw) |
Power of feeder (Kw) |
Inner Diameter of Die (mm) |
Pellet Size(mm) |
SZLH250 |
11/15 |
0.5-2 |
2.2 |
0.55 |
250 |
Φ2-12 |
SZLH320 |
37 |
2-4 |
2.2 |
0.75 |
320 |
Φ2-12 |
SZLH350 |
55 |
3-6 |
2.2 |
0.75 |
350 |
Φ2-12 |
SZLH400 |
75/90 |
6-12 |
5.5 |
1.5 |
400 |
Φ2-12 |
SZLH420 |
110 |
6-14 |
5.5 |
1.5 |
420 |
Φ2-12 |
SZLH508 |
132/160 |
6-20 |
7.5 |
1.5 |
508 |
Φ2-12 |
SZLH600 |
185/200 |
8-25 |
11 |
1.5 |
600 |
Φ2-12 |
SZLH800 |
280/315 |
15-28 |
15 |
1.5 |
800 |
Φ2-12 |
Detailed Parts of Animal Food Pellet Making Machine

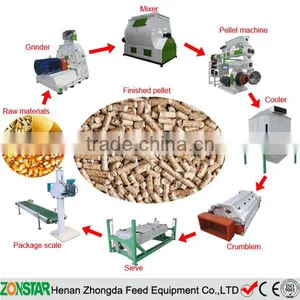

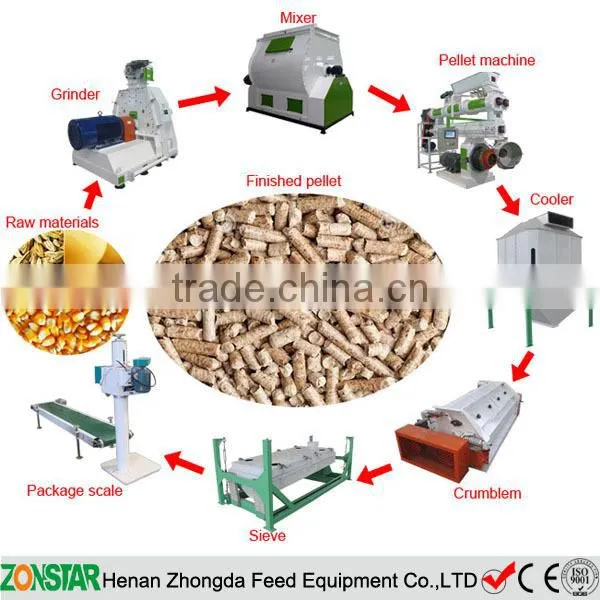

♥ Production line Contains machine of :
Hammer mill, mixer, pellet machine, cooler, screener and packing machine, etc.
♥ Raw materials system of :
The poultry and livestock feed produce line is widely used to process feed with different materials such as corn, maize, grass, grains, molasses, and some other raw materials, is suitable for all kinds of the feed factories.
1.The crushing process:
Raw materials into the shredder is broken into customer requirements of size granular, crushed particles passing through the mesh into the crushing chamber and then is discharged from the discharge port. The user can accord to the needs of the particle size selection screen
2. Mixing, pellet process:
The crushed particles in the mixer is fully stirred and uniformly mixed, enter into the ring die pellet machine to make them pellet
3. Cooling,crumbler , sieving process:
Granular semi-finished products in the SH series plane revolving grading sieve for grading and two circular grinding process and the number of particles, powder for cleaning and grading. Discharging port is the streamline shape design, not the material deposition, to avoid cross contamination.
4. Packaging process:
The packing process includes two parts: one is hosting part, the other one is packing part. The hosting machine will promote pellets from low to the top with its little hoppers, then drop the pellets into Packing Machine, with the automatic sealing system, the pellets can be packed into bags.
More details about animal feed pellet processing line:Pls click
1.Animal feed pellet grinder
2.Animal feed pellet mixer
3.Animal feed pellet making
4.Animal feed pellet cooler
5.Animal feed classification sieve
1. Q : How long is your guarantee for wood pellet mill?
A : One year from the equipment from clients receive the products.we provide full-life maintenance service and spare parts .All our products have quality assurance.
2. Q : Will you send engineers to install the equipments and train our staffs?
A : Of course.Firstly, we will make professional and detailed installation video for your reference .if you still request we install it , we will serve you personally.
3. Q : Can the machines make high quality wood pellet , example EN PLUS A1 ,A2?
A : The key on wood pellet quality is mainly raw material of making pellet and equipments. if the raw material is OK for pellet quality , our equipments are absolutely OK . and if your raw material is not Ok , we have the ability to provide solution for you.
4. Q : Can you design plant and production line according to our requirements and needs?
A : We have rich experience for 12 days on Biomass machinery and production line . we are the first manufacturer in this industry . our products are widely in home and abroad. we have the confidence and ability to design your products and plants .
