3Ton Per Hour Poultry Feed Manufacturing Equipment Line
Features of Pouultry Feed Manufacturing Equipment
Influencing drastically the pet-foods industry through marketing Poultry Feed Mill, Poultry Feed Mill Equipment, Poultry Feed Mill Machine, Poultry Feed Mill Unite Machinery and Raw Material Batch Machine, which are designed in agreement with internationally accredited manufacturing framework, innovatively set-out quality control guidelines and in compliance with quality standard, determined by global industry.
1.Feeding system adopts electromagnetic speed regulating control, speed control, convenient and full capacity to adapt to the different material requirements.
2.Security, has a strong magnetic magnet and overload protection device such as a safe and reliable.
3.Compact structure, beautiful appearance, high yield, less consumption, easy to use, maintenance and quick.
4.Siemens motor, NSK/ SKF bearing,tomatic Lubrication System.

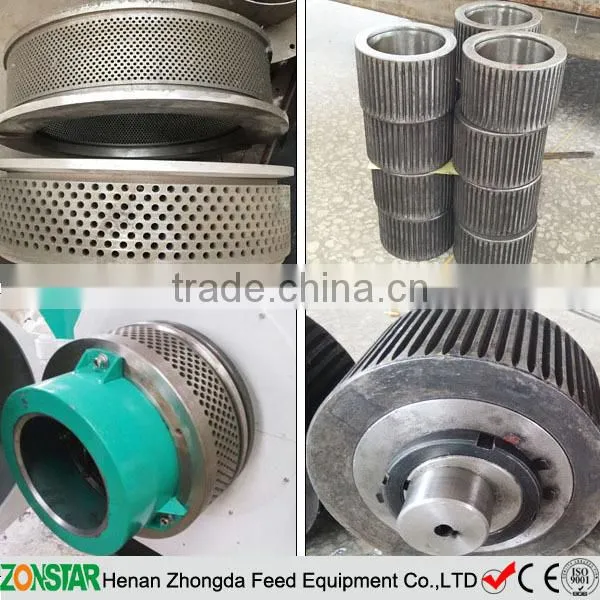

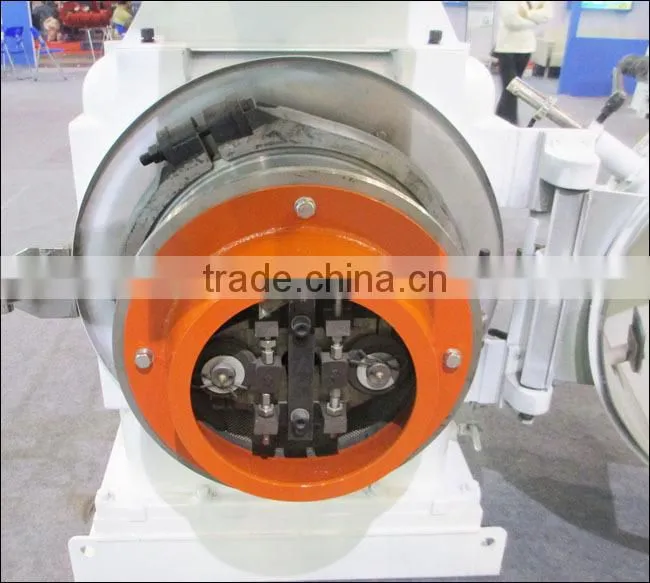

5.Host drive with high precision gear drive, ring die adopt anchorear type and disassembly is convenient;
Technical Parameters of Poultry Feed Manufacturing
Model |
Power(Kw) |
Capacity(T/H) |
Power of conditioner (Kw) |
Power of feeder (Kw) |
Inner Diameter of Die (mm) |
Pellet Size(mm) |
SZLH250 |
11/15 |
0.5-2 |
2.2 |
0.55 |
250 |
Φ2-12 |
SZLH320 |
37 |
2-4 |
2.2 |
0.75 |
320 |
Φ2-12 |
SZLH350 |
55 |
3-6 |
2.2 |
0.75 |
350 |
Φ2-12 |
SZLH400 |
75/90 |
6-12 |
5.5 |
1.5 |
400 |
Φ2-12 |
SZLH420 |
110 |
6-14 |
5.5 |
1.5 |
420 |
Φ2-12 |
SZLH508 |
132/160 |
6-20 |
7.5 |
1.5 |
508 |
Φ2-12 |
SZLH600 |
185/200 |
8-25 |
11 |
1.5 |
600 |
Φ2-12 |
SZLH800 |
280/315 |
15-28 |
15 |
1.5 |
800 |
Φ2-12 |
Detailed Components of Rabbit Feed Pellet Making Machine
Henan Zhongda feed equipment co.,ltd founded in 1995.We are specialized in feed machinery and engineering,food machinery and engineer,transport equipment and engineer,auntomatic control technology and engineer and so on.
There are over 500 workers in our company, among them there are about 80 engineers and over 100 technician.Our outstanding Richi Team and strict and scientific management system, which enable us to supply high quality and convenient turn- key projects to our clients.
2015 China Animal Feed Industry Expo & Animal Feed Production was held in Nanjing
♦ Many international copanies were take part in the exhibition, such as Muyang, DSM, Adisseo, Zhengchang, Buhler and CP Group.

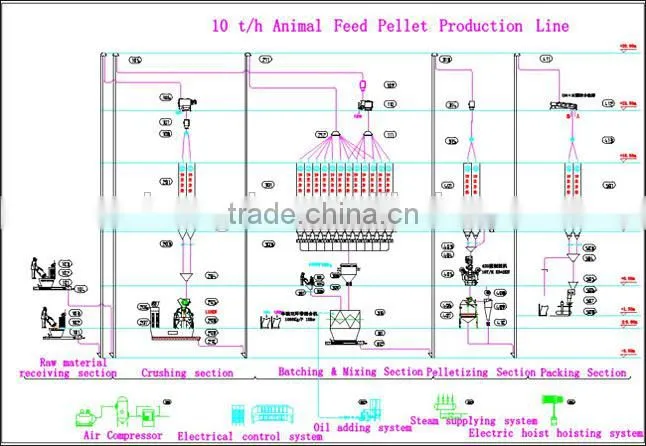

♥ Production line Contains machine of :
Hammer mill, mixer, pellet machine, cooler, screener and packing machine, etc.
♥ Raw materials system of :
The poultry and livestock feed produce line is widely used to process feed with different materials such as corn, maize, grass, grains, molasses, and some other raw materials, is suitable for all kinds of the feed factories.
1.The crushing process:
Raw materials into the shredder is broken into customer requirements of size granular, crushed particles passing through the mesh into the crushing chamber and then is discharged from the discharge port. The user can accord to the needs of the particle size selection screen
2. Mixing, pellet process:
The crushed particles in the mixer is fully stirred and uniformly mixed, enter into the ring die pellet machine to make them pellet
3. Cooling,crumbler , sieving process:
Granular semi-finished products in the SH series plane revolving grading sieve for grading and two circular grinding process and the number of particles, powder for cleaning and grading. Discharging port is the streamline shape design, not the material deposition, to avoid cross contamination.
4. Packaging process:
The packing process includes two parts: one is hosting part, the other one is packing part. The hosting machine will promote pellets from low to the top with its little hoppers, then drop the pellets into Packing Machine, with the automatic sealing system, the pellets can be packed into bags.
More details about poultry feed manufacturing line:Pls click
1.Animal feed pellet grinder
2.Animal feed pellet mixer
3.Animal feed pellet making
4.Animal feed pellet cooler
5.Animal feed classification sieve
Welcome you to enquiry!!
