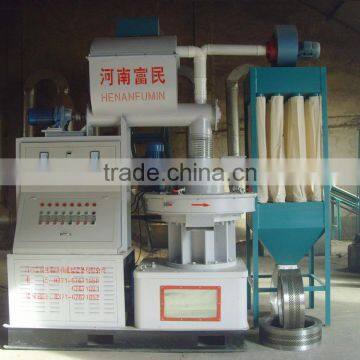

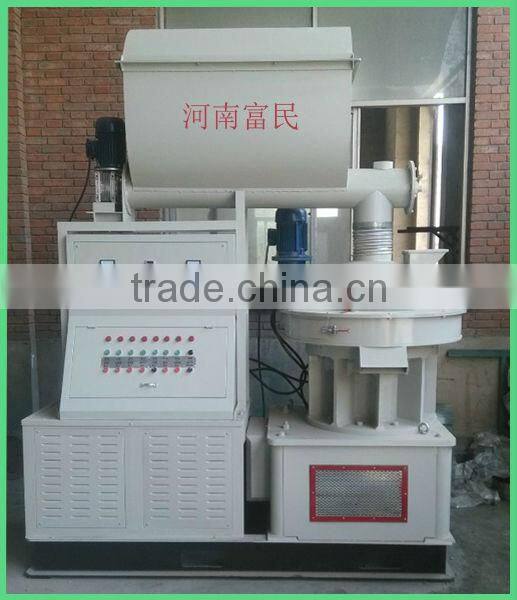

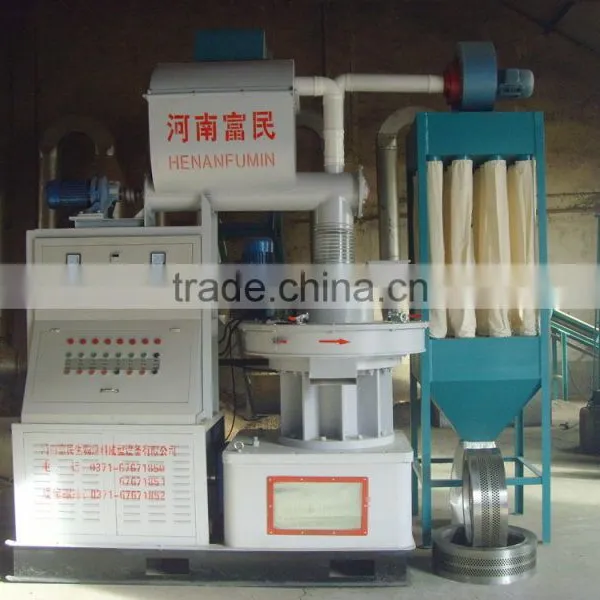

Discription of pellet making machine
- Double mold layer,flat location,gear rotation ,Grease pump can lubricat two gear and bear automatically,make sure it has a long workig time ,16hours two shiftis ok .
- High capacit :Host power 90kw make sure it has a capacity at least of 1.2t/h,usually 1.5t/h.
- It can produce 250t-312t per month every shift( 8h ) ,If two shift (16h) can produce 500-624t/month,the calculate is based on 26 workingdays per month.
- According to your requirement We can supply you crusher,dryer,cooler,packing machine .
- Motor drived by Reducer box ,which can support big power to press the pellet.
- Adopts several time relay :make sure the machine can feed material and produce pellet according to the woking environment
Material of pellet making machine price
1.Wood,cotton stalk,straw,rice husk,animal manure,palm fiber ,wood,bamboo,etc.
2.Materal Moisture<12% ;Material size <6mm.

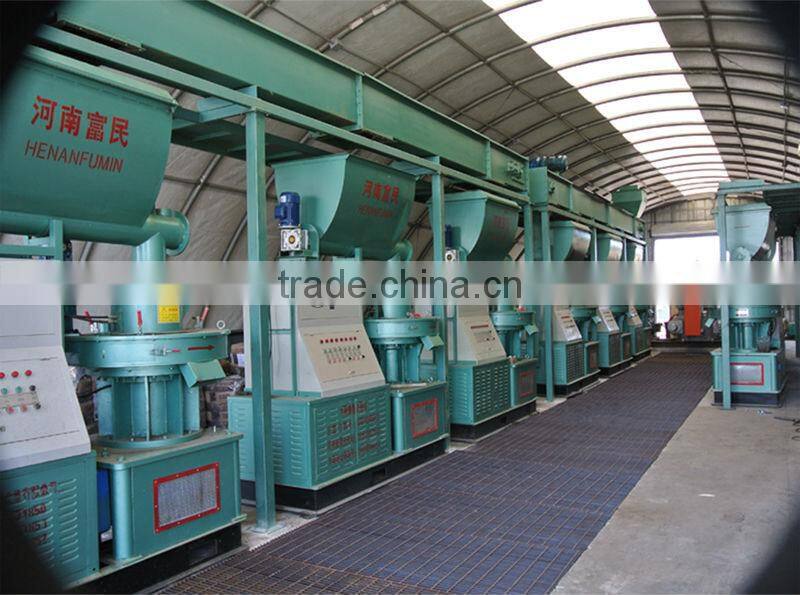

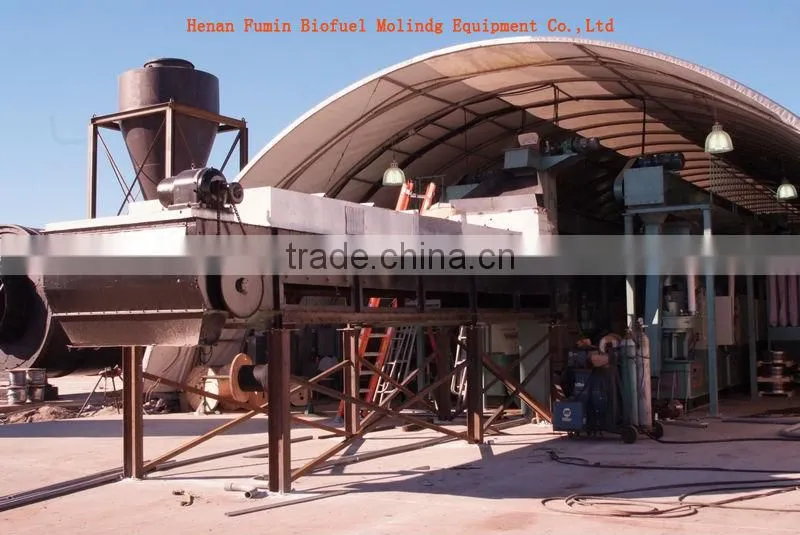

Wood pellet line Working scene :
Two set wood pellet wood pellet line
2-3t per hour
Include:
1.One 5m screw conveyor (Or 6m belt conveyor)
2.Two pellet machine
3.Two electric control cabinet

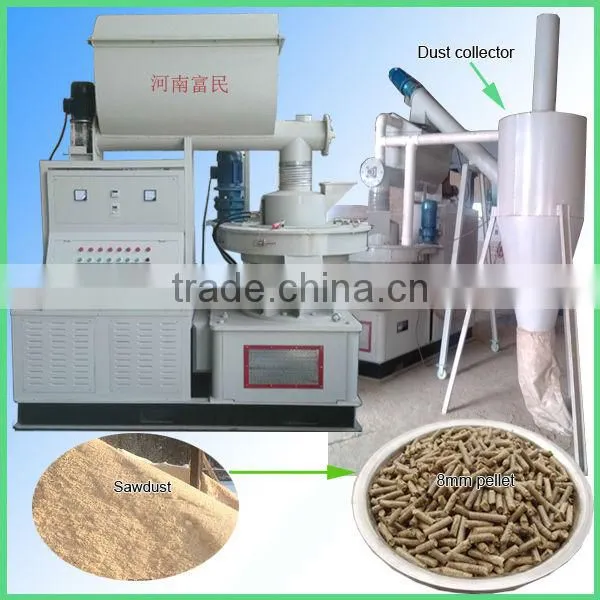

4.One dust collector
As the same power ,two pellet machine can has big capacity than one pellet machine ,the capacity increase ratio “capacity/power”s than unit pellet machine with 4t per hour ,so it save the electric .

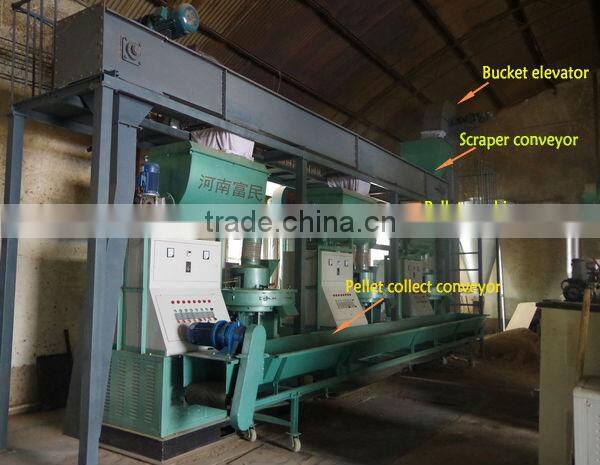

Three set wood pellet wood pellet line
3-4t per hour
One unit line include :
1. Bucket elevator:Lift the sawdust or material in to the silo of scraper conveyor.
2. Scraper conveyor:Divide the sawdust to silo of three pellet mahine
3. Pellet machine:Press the pellet
4. Pellet collect conveyor:Collect the pellet and conveyor it to pellet storage
5. If produce 6mm pellet ,use the MXKJ-9S-1 pellet machine ,this line has capacity of 2.4t/h ,if produce 8mm pellet the capacity is 3t .

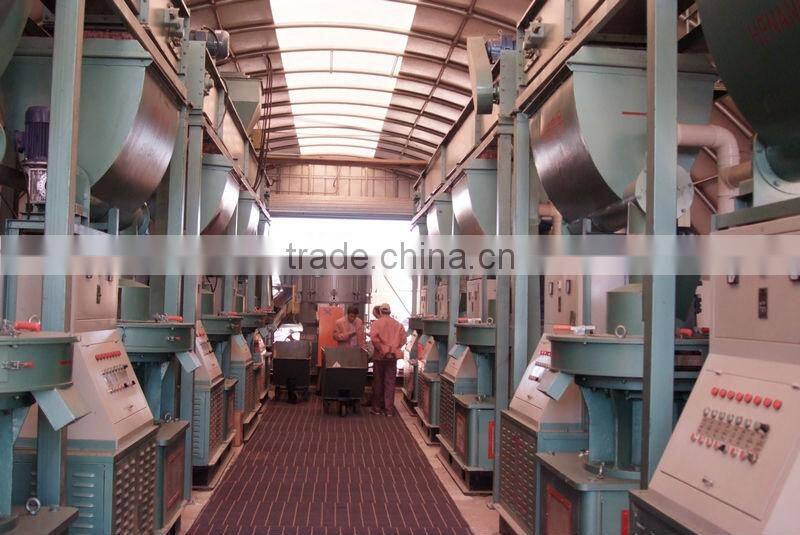

18t per hour United states pellet wood pellet line

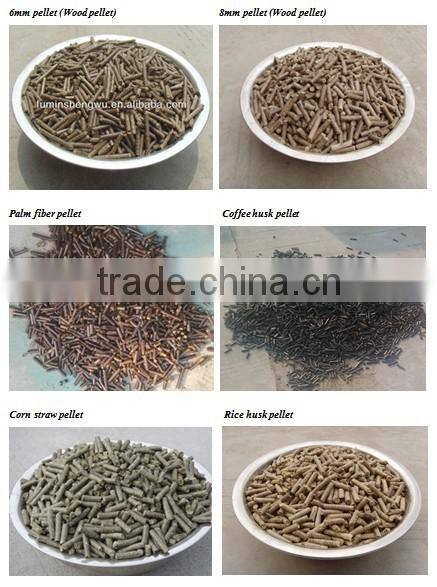

Pellet features
1.Pellets is green and low carbon energy fuel is renewable, environmental protection
2.Pellet is widely used in heating, biomass boiler, household gasification furnace, industrial boiler, hotels, restaurants, bath in industries as heat source.
3.Density 0.9-1.6g/cm3,easy store and transportation ,3500-5500 Kilocalorie.
Specification of wood pellet making machine
|
Model Specification |
MXKJ-9S-1 |
MXKJ-9S-2 |
MXKJ-9S-3 |
Specification of Material |
Power |
55kw |
75kw |
90kw |
Material ≤6mm Moisture ≤12% Density : 1-1.6g/m3 Finished pellet Φ6mm-Φ10mm Length can be adjusted |
Accessory |
7.22kw |
7.22kw |
7.22kw |
|
Capacity |
0.8-1 t/h |
1-1.2 t/h |
1.2-1.5 t/h |
|
Weight |
3t |
3.5t |
4t |
|
Dimention |
2.2*1.2*2.5m |
2.4*1.2*2.5m |
2.6*1.3*2.5m |

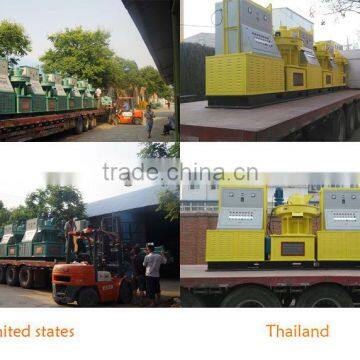

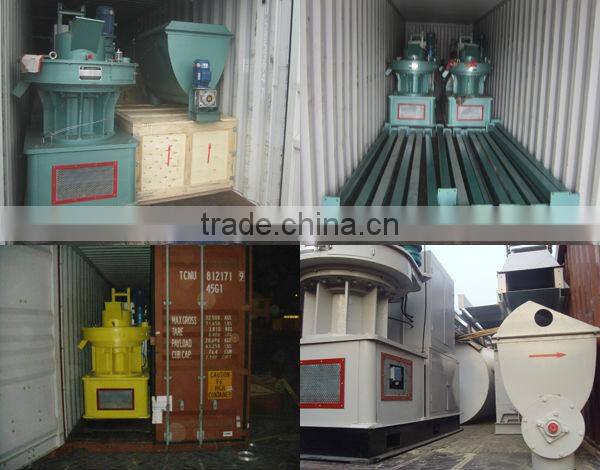

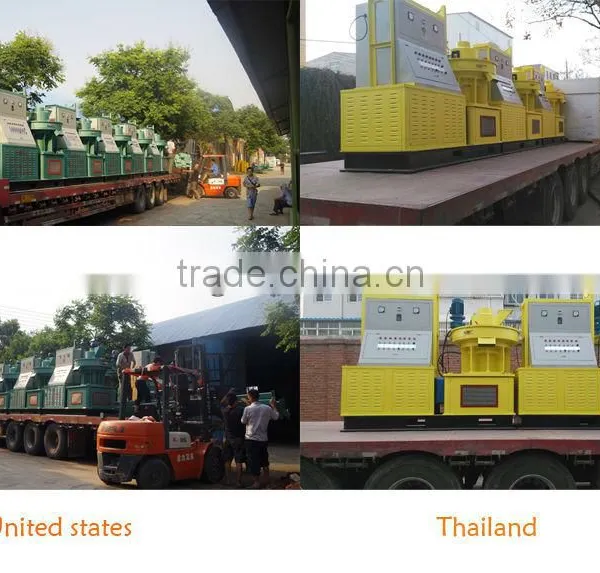

Wood pellet making machine delivery scene

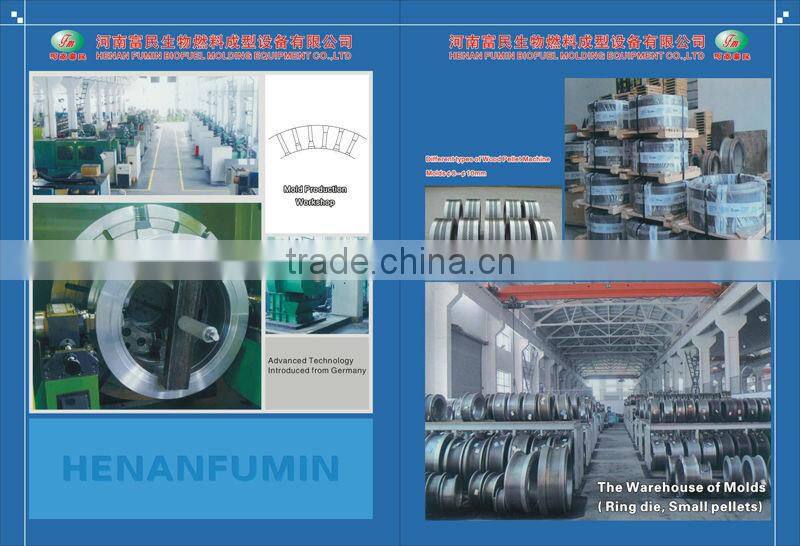

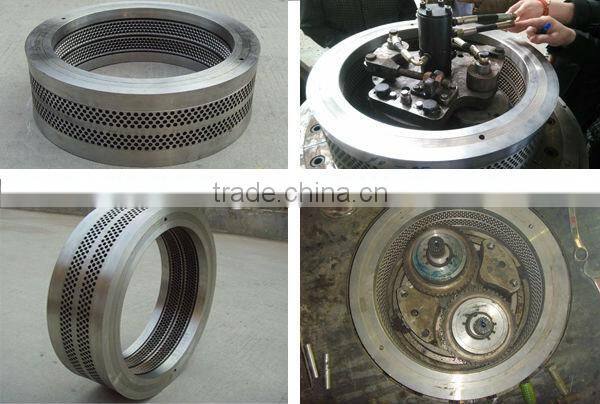

Spare parts workshop and introduction
Video link of pellet machine in You tube :
1./watch?v=xdyVYSYJtHI&feature=youtu.be
(1 pellet machine)
2./boke/page/a/l/3/a0127h92jl3.html
(2 pellet machine )
3./watch?v=dwwrsLFGMqQ%20&feature=youtu.be
(3 pellet machine )
4./watch?v=mM_F5fGLjX0&feature=youtu.be
(3 pellet machine )
