Help CenterHigh Quality Sawdust Pellet Mill Small Particles 8-20mm Factory-outlet
Related Products
-
300-600kg/h Grass Briquette Machine 8-20mm Factory-outletUS$ 1,500 - 20,000MOQ: 1 Set -
Sawdust Pellet Mill 6mm Factory-outletUS$ 1,500 - 25,000MOQ: 1 Set
-
High Quality JMX-7s Biomass Briquette Machine Small Pellets 8-20mm Factory-outletUS$ 1,500 - 30,000MOQ: 1 Set
-
Hot Sale JMX-7S Bio Briquettes Making Machine Small Particles8-20mm Straw Briquetting Machine Factory-outletUS$ 1,500 - 17,680MOQ: 1 Set
-
Hot Sale Professional Biomass Energy Machine Factory-outletUS$ 1,500 - 30,000MOQ: 1 Set
Specifications
1. Simple structure, simple operation high automation, and less laborSawdust Pellet Mill2.Output:600-1500kg/h
3. Power:55kw
"Straw Coal" Introduction
"Straw Coal" refers to the fuel which is made through grinding, pressing, increasing density with stalk and solid waste as raw material, for example: the corn stalks, wheat straw, cotton stalks, rice straw, rice husk, peanut shell, corn cob, branches, leaves, sawdust and other crops in rural areas , solid waste, furfural-residue, edible fungus dregs,and Chinese herbal medicine residue etc.
"Straw Coal" features:
After forming the straw charcoal, the fuel boast smaller size with greater weight, high burning rate , easy to store and convenient to transport, and its density is 0.9-1.4g / cm3, and the density of the coal is about 1.3 g/cm3, and its calorific value can reach about 3500-5500 kilocalorie, and the calorific value of the ordinary coal is about 2500-6000 kilocalorie , so it can be called as high-volatile solid fuels and replace the bulk coal .
Characters of Finished Products
1. Straw-coal is a kind of new-style energy with renewable, environmental protection, high efficiency and low cost.
2. It is widely used of heating, hotels, restaurants, bath in industries as heat source, solved the problem of the coal boiler environmental pollution as well as the higher costs of industry fuel .
They can be used instead of coal or wood in domestic solid-fuel stoves as well as in industrial furnaces.
General Survey of Bio-fuel Briquetting Machine
1.This equipment is suitable for various kinds of materials whose moisture content is less than 30%.The machine is fully automatic electric heating, and can adjust the humidity of materials to deal with problems of congestion and not forming.
32.Straw-fuel Briquetting Machine is widely used in household stove, heating furnace, hot water boilers, industrial boilers, etc.
4. The machine has advantage of simple structure, easy operation, high automation, and less labor.
5. Well adaptable: it could put all kinds of raw material into molding machine (If larger, crusher should be used).
6. High Automation: 3 workers are enough to operate all the process.
7.The wide scope of raw material: the corn stalks, wheat straw, cotton stalks, rice straw, rice husk, peanut shell, corn cob, branches, leaves, sawdust and other crops in rural areas , solid waste, furfural-residue, edible fungus dregs,and Chinese herbal medicine residue etc. All can be used as raw material.
Working principle of Factory-outlet Straw Fuel Briquetting Machine:
1. Forming principle: with the interaction of the pressure between flat-die and pinch-roller and the friction of die hole taper ,the raw materials can be formed by the self-bounded fiber of the straw materials without any added bonding agent.
2. Wide Material adaptable: adapt to a variety of biomass materials in shape, raw straw material with the length from powder to 50mm and the moisture content10-30% all can be processed.
3. Electric heating function: full automatic electric heating device can meet the needs of forming temperature and auto-add raw materials to machines and adjust the density of finished products.
4. Wheel pressure automatic adjustment function: the use of Bi-direction Thrust bearing principle to adjust the pressure angle automatically, so that the molding machine can avoid raw material squeezing and does not work ,to ensure the stability of forming products.
5. Easy Operation: with high degree of automation, only three people are enough, it is both ok to load materials manually and automatic loading by conveyor.
6. Process of the entire link: raw materials acquisition → crushing → softening →convey to the briquetting machine → forming the shape of cylinder→put the finished product in storage
Our Advantages of Factory-outlet Bio-fuel Briquetting Machine:
As a professional manufacturer in exporting charcoal/biomass briquetting plants for agro-forestry wastes, we are leading a team working to exploit full set of various manufacturing and exporting briquetting equipments, including charcoal/biomass briquetting machine, straw Pulverizer , pellet mill, kneading machine, straw-crusher and grass chipper, Drying Machinery etc.
Our main product JMX-series straw-coal molding machine is one of the most reliable machines developed by our company through crushing, pressure, increasing the density of the raw material to form the cylinder shape . We have the equipment with large, medium and small series available which have won a number of national patents including Invention Patent: 200,810,218,916.9, Utility Model Patents: 200,820,202,965.9, Design Patents: 200,830,215,987.4 and this field enjoys energy conservation, high effective, user-friendliness and convenient operation.
Service Commitment:
With strong technical force, sound management system, and first-class sense of quality, it is possible for our equipment to achieve maximum reducing of maintenance ratio during your machine operation. And we offer the service below:
- We can send one of our technicians to your factory to debug the equipment and on-site training, and you shall bear the expenses of round-trip air ticket and the cost of board and lodging, and you should also bear the wages of our technician for about $ 50 /day, generally speaking, it needs about 2 days to grasp all of the operation skill.
- It is also ok for your workers to come to our factory to receive training, and you shall bear all the expenses of your workers.
Equipment Parameter(Small Particle) |
Raw staff &Finished Product Parameter |
||||
|
Model
Parameter |
Jmx-5s |
Jmx-6s |
Jmx-7s |
Jmx-8s |
Length of Raw Staff 3-50MM |
Power(KW) |
30 |
37 |
45 |
55 |
Moisture Content of Raw staff 15-30% |
capacity(kg/h) |
300-600 |
400-800 |
600-1000 |
600-1500 |
Form of Finished Product : Cylinder-shaped ¢8-20mm |
|
Dimension (length*width*height )(mm) |
2000*900*1800 |
2500*1000*1900 |
2500*1000*1900 |
2500*1000*1900 |
Density of Finished Product :0.9-1.4g/cm3 |
Weight (kg) |
1500 |
1800 |
2000 |
2200 |
Caloricity of Finished Product 3500-5500 kilocalorie |
Note:
1:All the flat-die machine above are all multifunctionthat can product ¢ 8mm-¢33mm pellets by changing the molds.

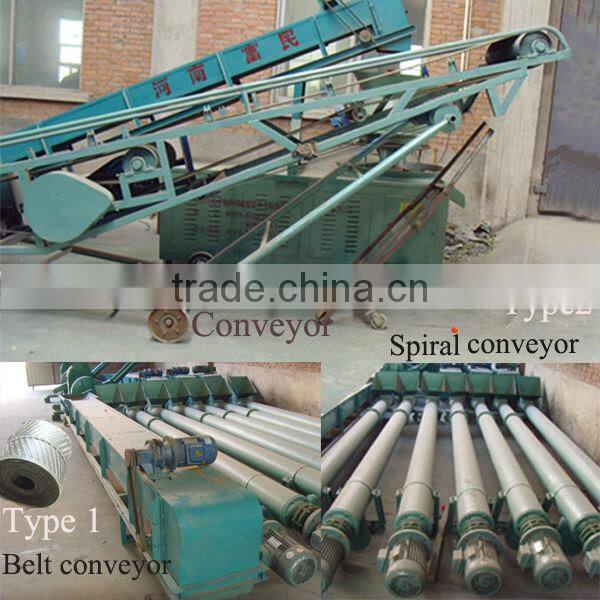

2: The price listed above including Conveyor and Power Distribution Cabinet (the same as the picture).
View of Biofuel Briquetting Machine
The Integral Process of Biofuel Briquetting Machine
Parts of JM-series Equipment
Operation State

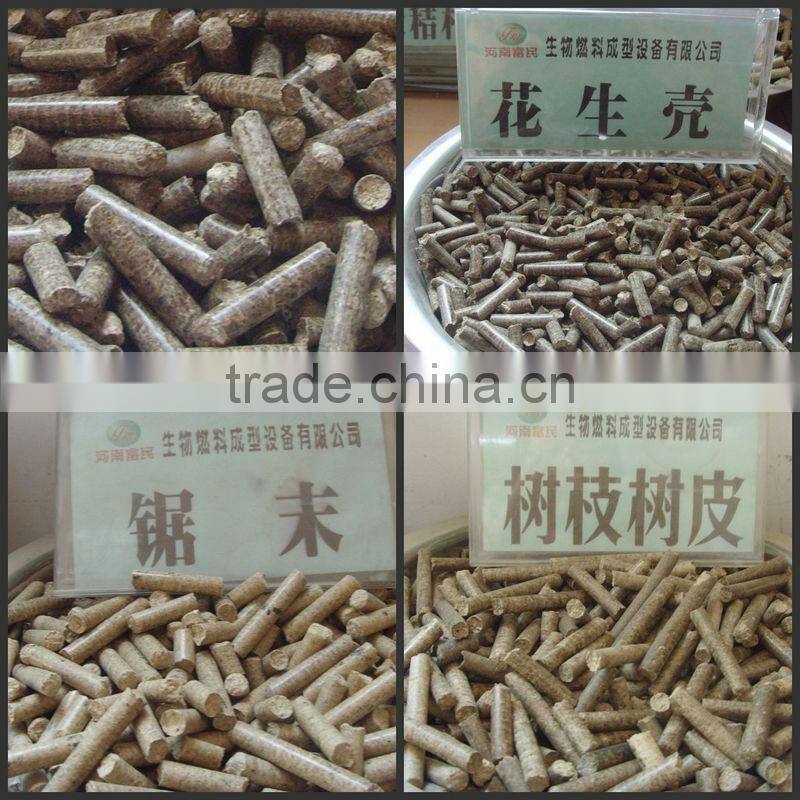

Part of Finished Products
Combustion State of Finished Products
Delivery to Domastic and Foreign Clients

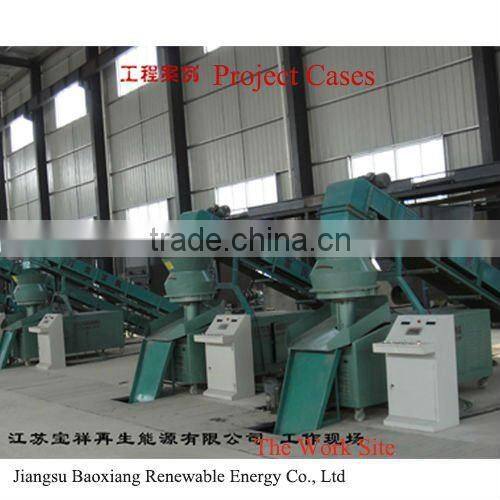

Foreign Clients Visiting
Any more information you want to know, please contact me freely.
