Specifications
1.Supply:Factory Outlet2.Capacity:500~1000kg/h
3.Power:37kw
4.Demension:2500*1000*1900(mm)
General Survey of Bio-fuel Briquetting Machine
1. Bio-fuel Briquetting Machine is a full set of mechanized production equipment. It can convert biomass raw material and solid waste into energy fuel with high density. It is a special equipment of compressing such materials into blocks.
2.This equipment is suitable for various kinds of materials whose moisture content is less than 30%.The machine is fully automatic electric heating, and can adjust the humidity of materials to deal with problems of congestion and not forming.
3.Straw-fuel Briquetting Machine is widely used in household stove, heating furnace, hot water boilers , industrial boilers, etc.
4. The machine has advantage of simple structure, easy operation, high automation, and less labor.
5. Well adaptable: it could put all kinds of raw material into molding machine (If larger, crusher should be used).
6. High Automation: 3 workers are enough to operate all the process.
7.The wide scope of raw material: the corn stalks, wheat straw, cotton stalks, rice straw, rice husk, peanut shell, corn cob, branches, leaves, sawdust and other crops in rural areas , solid waste, furfural-residue, edible fungus dregs,and Chinese herbal medicine residue etc. All can be used as raw material.
Character of Finished Products
1.Straw-coal is a kind of new-style energy with renewable, environmental protection, high efficiency and low cost.
2.It is widely used of heating, hotels, restaurants, bath in industries as heat source, solved the problem of the coal boiler environmental pollution as well as the higher costs of industry fuel .
3.The finished products can replace coal. For the advantage of their great density,the straw fuel have much more calorific value than the same quantity of firewood. They can be used instead of coal or wood in domestic solid-fuel stoves as well as in industrial furnaces.
"Straw Coal" Introduction
"Straw Coal" refers to the fuel which is made through grinding, pressing, increasing density with stalk and solid waste as raw material, for example: the corn stalks, wheat straw, cotton stalks, rice straw, rice husk, peanut shell, corn cob, branches, leaves, sawdust and other crops in rural areas , solid waste, furfural-residue, edible fungus dregs,and Chinese herbal medicine residue etc.
Bio-fuel molding machine is the best equipment to generate revenue from agro-forestry waste and to produce Green energy to protect the global environment. The awareness of using Eco-friendly & Non-conventional Bio-coal/Bio-fuel is increasing day-to-day with the increasing of the conventional fuel cost.
"Straw Coal" Features:
Straw coal is a kind of new-style energy with renewable, environmental protection, biomass clean and low cost. It is widely used of heating, biomass boiler, household gasification furnace, industrial boiler, hotels, restaurants, bath in industries as heat source, solved the problem of the coal boiler environmental protection as well as the higher costs of industry fuel, and it also can be used as the fodder with high nutrition released under high temperature after briquetting and convenient to store.
After forming the straw charcoal, the fuel boast smaller size with greater weight, high burning rate , easy to store and convenient to transport, and its size is only equal to 1 / 30 of the original straw and its density is 0.9-1.4g / cm3, and its calorific value can reach about 3500-5500 kilocalorie, so it can be called as high-volatile solid fuels.
Our advantages of Factory-outlet Bio-fuel Briquetting machine:
1. As a professional manufacture of high quality Charcoal/biomass Briquetting Plants for agro-forestry wastes, we specialized in Briquetting Equipments, including Charcoal/Biomass Briquetting Machine, Wood Pellet Machine, and associated equipments that are Straw Crusher, Drying Machinery etc.
2. We have more than 9 years experience of manufacturing Bio-fuel Briquetting Machine; we have customers from India, UK, Nigeria, Korea, Republic of Serbia, Ethiopia, Vietnam, and so on. We take the quality seriously, all steps from raw material purchasing to the products export has be in control by our IQC, PQC, OQC. For us, we focus in the end-user and high -end customer who request quality products & service.
We are proud of that our customers always satisfy with all of our works.
3. We have our own factory, it make sure the delivery time and service commitment. As you know, many companies are just foreign trade corporations so the quality and after-sale service is hard to assure. We have professional technicians to offer the best after-sale service.
4. Our main products JMX-series Straw-coal Molding Machine is one of the most reliable machines developed by our company and through crushing, pressure, increasing the density of the raw material to form the cylinder shape. We have the equipment with large, medium and small series available which have won a number of national patents including Invention Patent: 200,810,218,916.9, Utility Model Patents: 200,820,202,965.9, Design Patents: 200,830,215,987.4 and this field enjoys energy conservation, high effective, user-friendliness and convenient operation.
Parameters:
Equipment Parameter (large particle) |
|
||||
|
Mode
Parameter |
Jmx-4 |
Jmx-5 |
Jmx-6 |
Jmx-7 |
Length of Raw staff 3-50MM |
Power |
22kw |
30kw |
37kw |
45kw |
Moisture Content of Raw staff 15-30% |
Output |
300-500 |
300-600 |
500-1000 |
600-1500 |
Form of Finished Product: cylinder-shaped ¢33mm |
Dimension |
2000*900*1800 |
2000*900*1800 |
2500*1000*1900 |
2500*1000*1900 |
Density of Finished Product: 0.9-1.4g/cm3 |
Weight |
1300kg |
1500kg |
1800kg |
2000kg |
Caloricity of Finished Product 3500-5500 kilocalorie |
Mold types |
Length of Raw staff:
|
Moisture Content of Raw staff
|
Form of Finished Product |
Density of Finished Product |
Caloricity of Finished Product |
Flat die |
3-50mm |
15-30% |
Cylinder ¢ 30-33mm |
0.9-1.4g/cm3 |
3500-5500 kilocalorie |
Note:
1:All the flat-die machine above are all multifunction that can product ¢8mm-¢33mm particles.
2: the price listed above including conveyor and power distribution cabinet (the same as the picture below), but not including the fee of pulverizer and transportation.
3.We have different types of Biomass Briquetting Machine( Wood Pellet Machine) in stock, please contact me if you need any help, it is my pleasure to offer the most professional suggestions and recommend the most suitable equipments to you in according to the raw materials of yours. The same as the principles we insist on in developing our domestic market, we always believe that it is our duty to help clients to purchase the most suitable equipments but not the most expensive ones.
Any more information you want to know, please contact me freely, thanks!

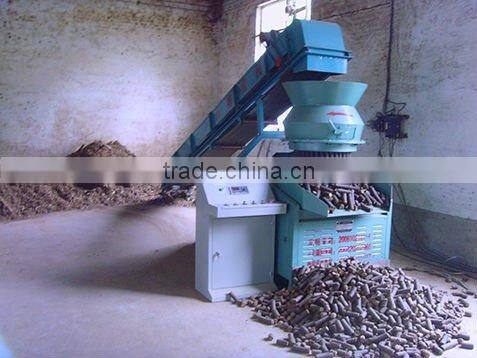

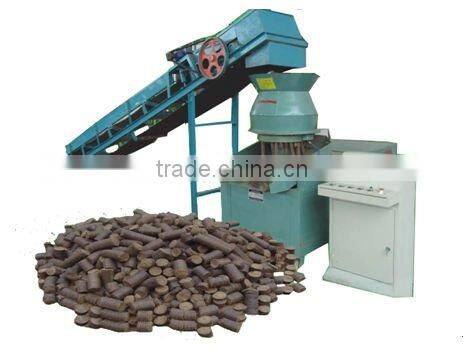

Detailed Information of the Birquetting Machine
The Operation Process of Henan Fumin Biofuel Briquette Machine
Note:
1. In order to achieve maximum output and perfect molding effect, Moisture Content of Raw staff is 15-30%, if larger, and then the drier is needed.
2. Also, for the sake of reaching maximum output and perfect molding effect, Length of Raw Staff is 3-50mm, if larger, and then the straw crusher is needed.
3. We have the associated Crusher and Drier with high quality and low price in stock, if you need, please contact me, we will give you the most suitable advices.

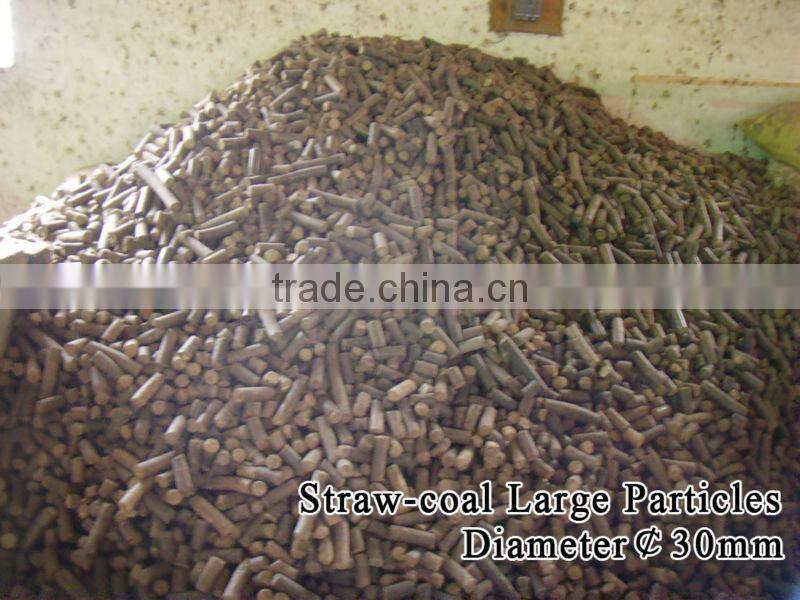

Final Products (Large Pellets)Diameter:30-33mm
Delivering of Fumin Equipments
More about Henan Fumin
Any more information you want to know, please contact me freely.
