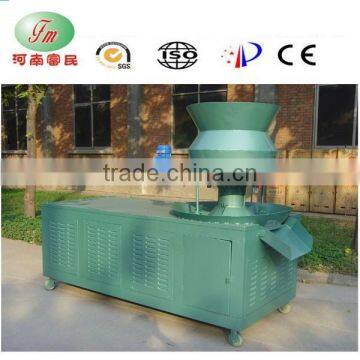

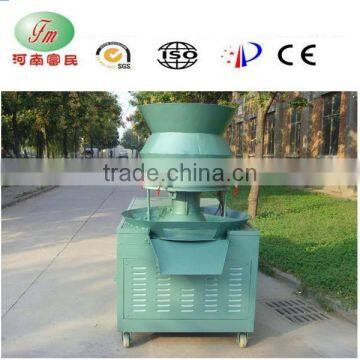

I.Biomass briquette making machine
1.Biomass briquette making machine is an automation equipment,wiith automatic oil -supply device ,which can save a lot maintenance time.
2.Ring die wood pellet machine can forming with moisture less than 8%,other flat die type machine can adapt moisture of 25-30%.
3.With high accuracy specification,simple structure, easy operation, high automation,save labor,mold and gear are made of stainless steel.
4.Widely suitability:All kinds of biomass raw material ,industrial waste It can convert biomass raw material and solid waste into energy fuel with high density.
II.Specification of biomass briquette making machine
III.Biomass briquette making machine working principle and process detail:
1.Material come from belt conveyor and then into the storage,screw conveyor feed material automaticllly to the pellet forming chamber
2.In the forming chamber ,two gear and mold help to form and press pellet,Gear rotate to press pellet come out surround.
3.Automatic cutting machine arround the mold ,which can cut pellet automaticly,it can also adjust the length of pellet .
4.During the process ,the oil supply device can lubricate the gear and mold.
IV. biomass briquette making machine
1.Pellet is new-style energy which is renewable, environmental protection,it is also clean and low cost.
2.Pellet (biomass briquette,biomass pellet,wood pellet) is widley used in heating, biomass boiler, household gasification furnace, industrial boiler, hotels, restaurants, bath in industries as heat source,instead of coal in boiler burning,avoid the pollution of burning the coal ,also being used as industial fuel.
3.High density from 0.9-1.6g/cm3,easy to store and transportation,Calorific value can be 3500-5500Kilocalorie.
4.Biofuel can instead of coal for biomass power generation.
V.Raw material required:
1.All kinds of biomass material,or farm waste ,such as cotton stalk,corn straw,wheat straw,sawdust,peanut shell,rice husk,animal manure.
2.Moisture:15%,6-10mm
VI.Detail of Spare parts(Mold and gear):
Mold
VII.Our advantage:
1.Long history in wood pellet machine and biofuel briquette machine making,has export to more than 20 countries.
2.Our product with high automation which can save labor,and it is also easy to maintenance ,save a lot of maintenance time.
3.Our machine is flat location stainless steel ring die mold and gear,which is different from Vertical location ring die machine ,which has a good performance.

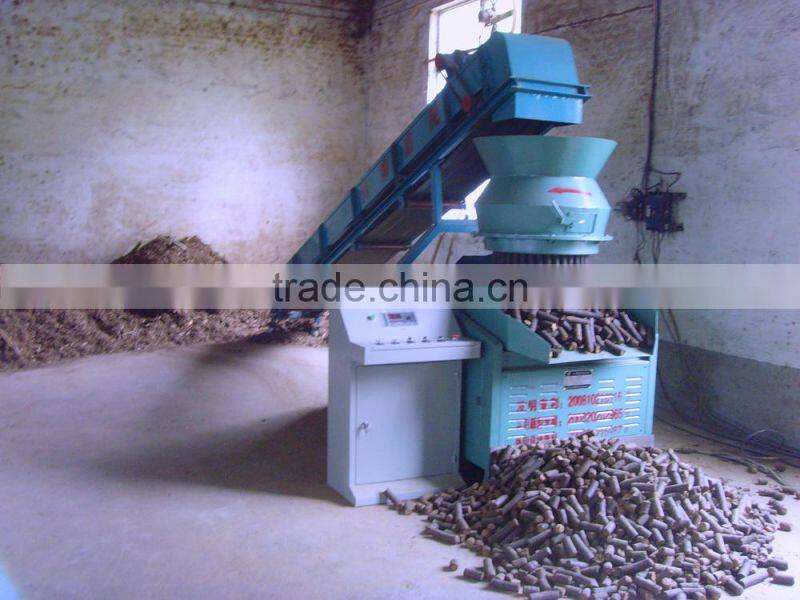

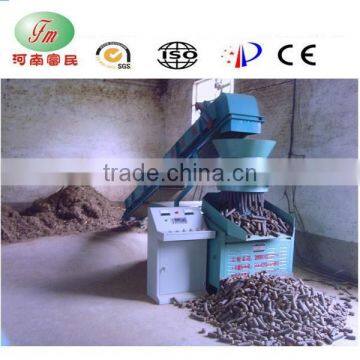

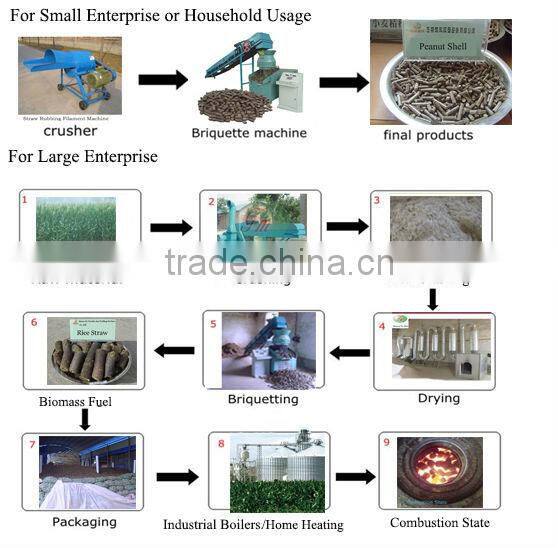

VIII.Complete production line
1.Crushing process:
Wood crusher which can crushed the raw material into sawdust shape ,under 6mm,which is suitable for the dryer and pellet machine.It can crush straw,stalk,tree branches,nutshell,wood shavings,wood waste board,leaves,palm fiber ,etc.
2.Dring process
Air flash wood dryer or drum wood dryer which can dry the material under the moisture of 8%,which is suitable for pellet forming.The dryer use hot air accompany with material and evaporated rapidly .
3.Biomass briquette making machine:
Biomass briquette making machine convert the biomass material into pellet ,the length can be customed.
4.Cooling process
You can use a cooling fan or cool it by nature about half or one hour
5.Packing and bagger:
After cooling the semi-automatic quantative packing machine can pack the pellet into bag with quantative weight.
America customer visit and India customer

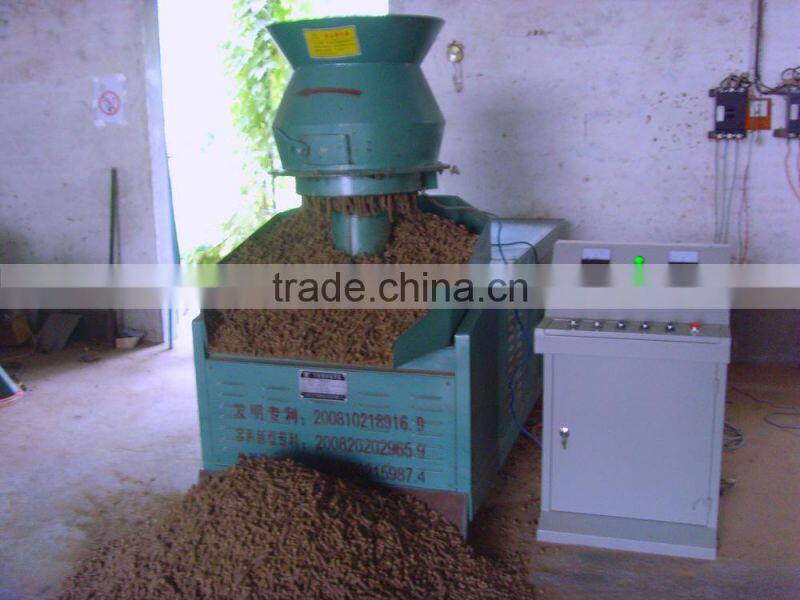

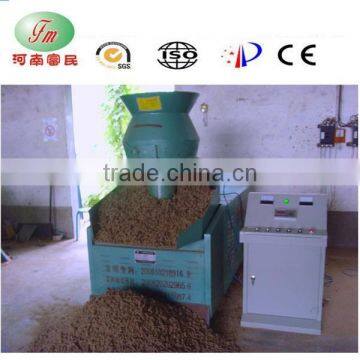

Test workshop
Biomass briquette making machine is high-tech machine,welcome to have a further understood.
